9.9 MANUAL WORKPIECE ORIGIN SETTING

On the workpiece origin offset screen, a workpiece origin offset can be

set so that the current machine position is the origin of a selected

workpiece coordinate system or a specified position.

Displaying the workpiece origin offset screen

To display the workpiece origin offset screen, follow the procedure

described in Section II-2.3 or II-2.5, "Offset Setting."

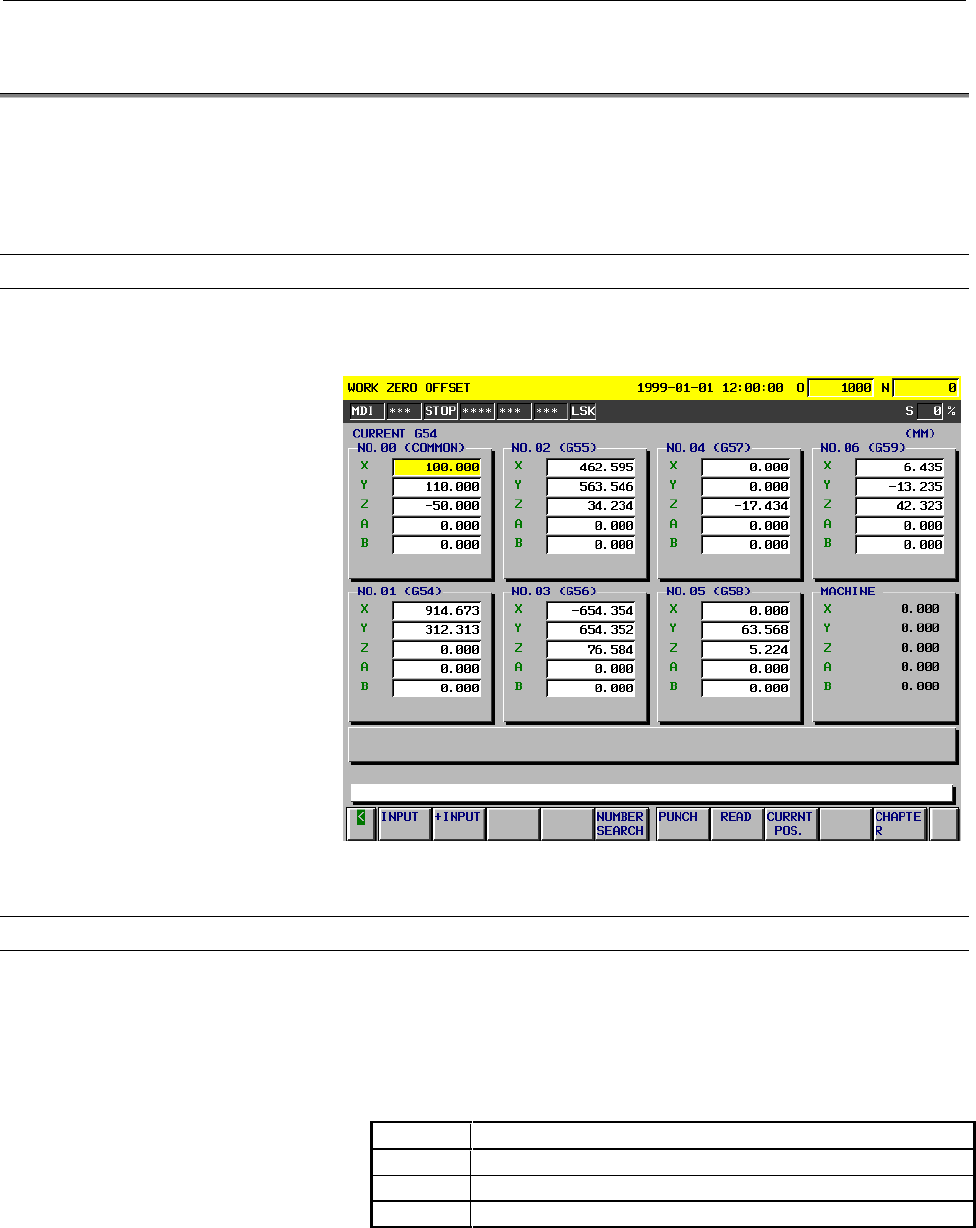

Fig. 9.9 (a) Workpiece Origin Offset Screen

Selecting a workpiece coordinate system and axis

Selecting a workpiece coordinate system

Select the workpiece coordinate system you want to set.

A workpiece coordinate system can be found using a number indicated

in the table below.

No. Found workpiece coordinate system

0 External workpiece origin offset No. 00 (common)

1 to 6 Workpiece coordinate system No. 01 (G54) to No. 06 (G59)

P1 to 48 Additional workpiece coordinate system P01 to P48 (G54.1)
