B-63324EN-1/03 OPERATION 7.ALARMS AND SELF DIAGNOSTC FUNCTIONS

- 205 -

OFFSET VECTOR

Displays the tool length compensation vector created for each

block. Any axis can be subject to tool length compensation

depending on the parameter setting. Therefore, offset vectors for

all axes are displayed.

Tool Offset

Displays the currently selected tool compensation number and

tool offset data.

Canned cycle for drilling

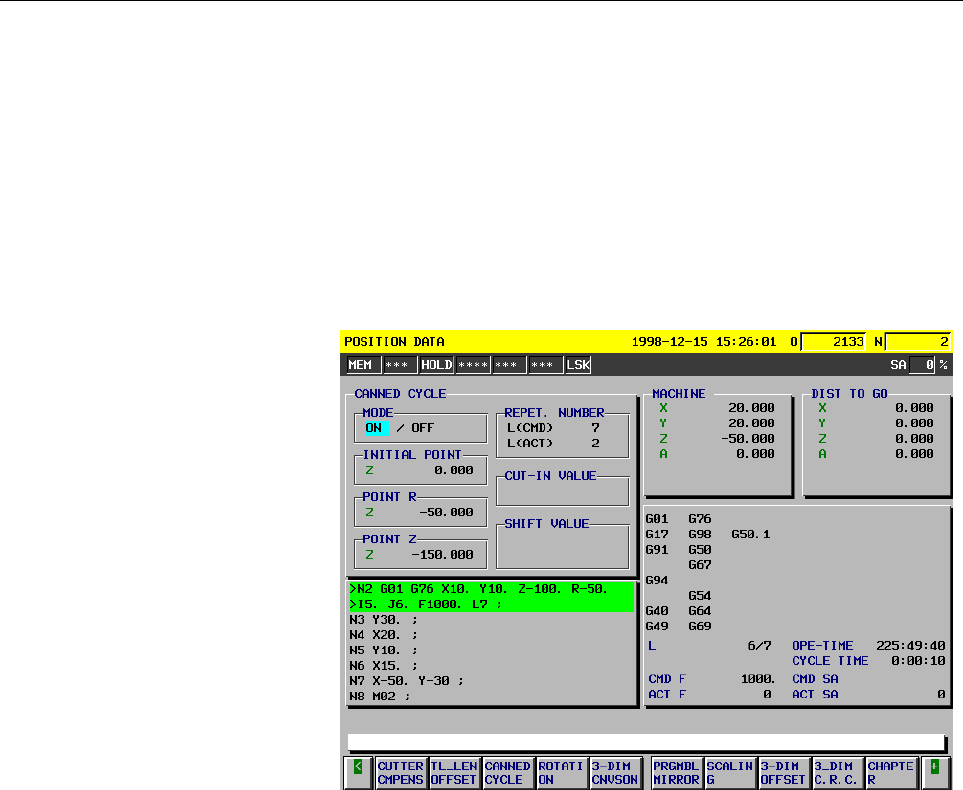

Fig.7.2 (c) Canned cycle for drilling

MODE

Displays ON in reverse video when the current mode is canned

drilling cycle mode, and displays OFF in reverse video when the

current mode is other than canned drilling cycle mode.

INITIAL POINT

Displays the absolute position of the initial point.

POINT R

Displays the absolute position of point R.

POIN Z

Displays the absolute position of point Z.

NUMBER OF REPETITIONS

Displays the specified value (CMD) and current value (ACT) of

the number of repetitions.

CUT IN VALUE

Displays the depth of cut for G73 and G83.

SHIFT VALUE

Displays the shift for G76 and G87.
