B-63324EN-1/03 OPERATION 2.OPERATIONAL DEVICES

- 47 -

2.5.5 Chapter selection keys

The function selection keys are used to select large items (functions).

Each of them is further divided into smaller items (chapters). These

items (chapters) are selected using chapter selection keys. To select a

chapter, press the chapter key to display chapter selection keys on the

soft keys first, then press the target chapter selection key. Change from

one chapter to another can also be performed by pressing a function

hard key several times repeatedly. The following sections list the

chapters contained in each function.

2.5.5.1 Position

         

NO. Chapter menu Explanation

(1) OVERALL Selects the overall position display screen.

(2) RELATIVE Selects the relative position display screen.

(3) ABSOLUTE Selects the position display screen based on the

workpiece coordinate system.

(4) MACHINE Selects the position display screen based on the

machine coordinate system.

(5) MANUAL OVRLAP Selects the operation screen for performing

manual handle feed interrupt operation.

(6) BLOCK RESTRT Selects the operation screen for restarting

operation from a block in which the previous

operation was interrupted.

(7) PRGRAM RESTRT Selects the operation screen for restarting the

interrupted program operation.

(8) TOOL HEAD Displays the absolute coordinates and actual

feedrate of the tool tip during handle feed in the

longitudinal direction of the tool, handle feed in

the transverse direction of the tool, and rotational

handle feed around the tool tip.

(9) HANDLE PULSE Displays the handle pulse interrupt amount for

performing three-dimensional handle feed.

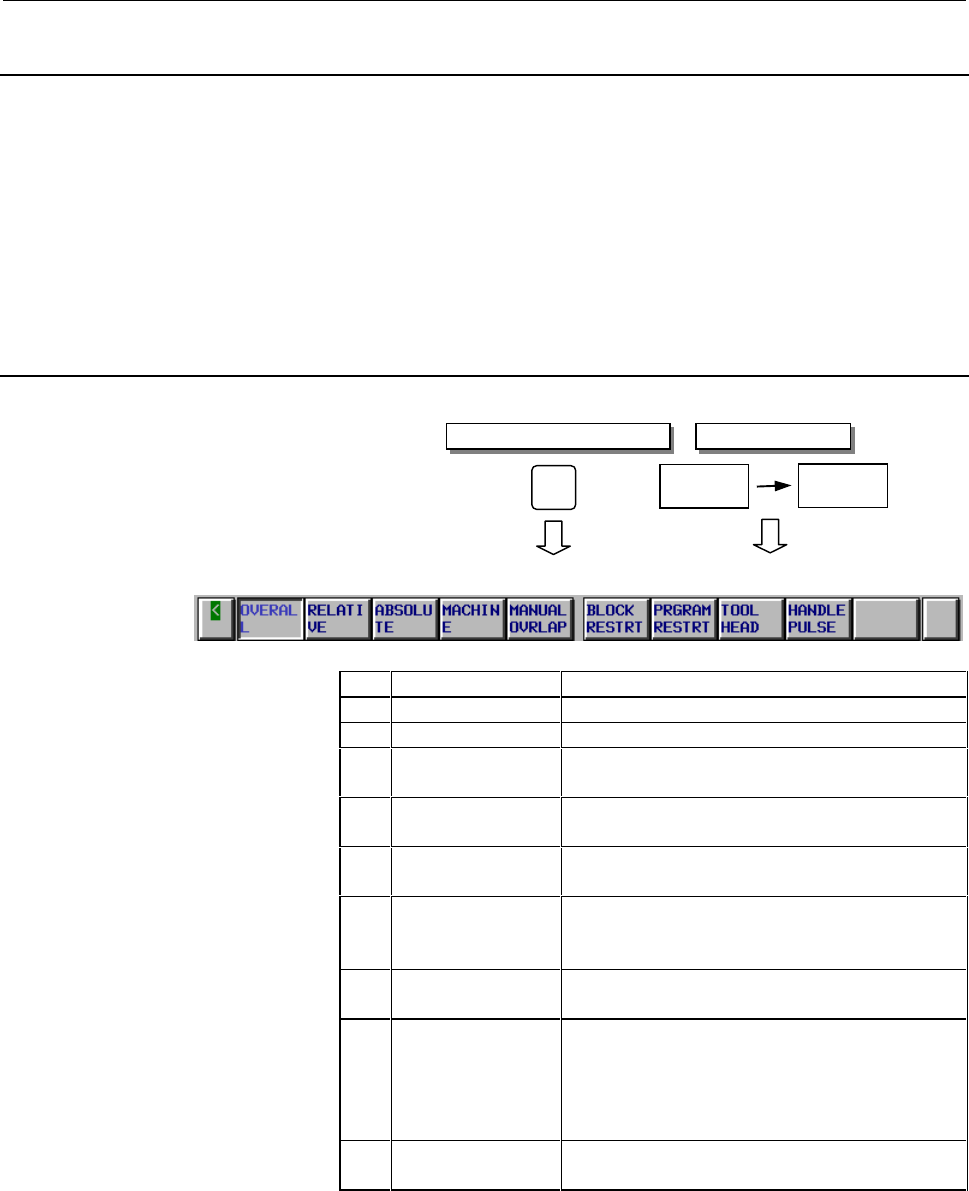

POS

POSITION CHAPTER

Function key on the MDI panel Soft keys
