10.DISPLAY OPERATION B-63324EN-1/03

- 428 -

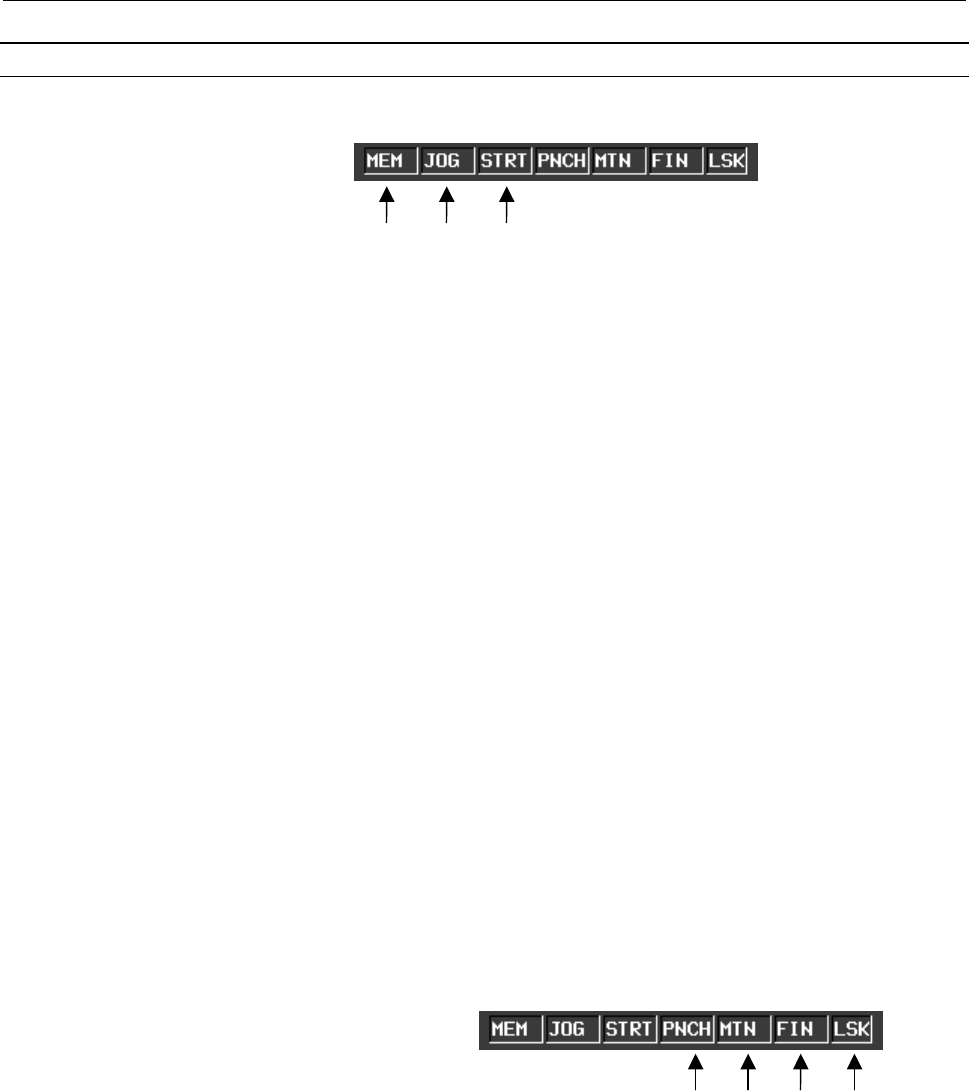

Status display

Display contents

1 Automatic operation mode selection

This field displays the automatic operation mode currently selected.

MDI : MDI operation

MEM : Memory operation

DNC : DNC operation

EDIT : Memory operation

**** : Automatic operation is not selected.

2 Manual operation mode selection

This field displays the manual operation mode currently selected.

JOG : Jog feed

REF : Manual reference

HND : Manual handle feed

INC : Incremental feed

AGJ : Manual feed in specified direction

J+H : Jog and manual handle feed

I+ g : Incremental and manual handle feed

**** : Manual operation is not selected.

3 Automatic operation status

This field displays the status of automatic operation.

RSET : Reset is in progress.

STOP : Automatic operation is stopped.

HOLD : Automatic operation is suspended.

STRT : Automatic operation is started.

MSTR : Execution of a manual numeric command is started.

NSRC : Sequence number search is in progress.

4 Program editing status

This field displays the status of program editing.

READ : Registration is in progress.

PNCH : Punch-out is in progress.

VRFY : Verification is in progress.

SRCH : Search is in progress.

COND : Memory arrangement is in progress.

EDIT : An editing operation (such as insertion or

alteration) is in progress.

**** : No editing operation is in progress,

  

  
