Series 15i/150i - MA (Operation) Operators manual Page 107

Operators manual

Page of 628

/ 628

3.MANUAL OPERATION OPERATION B-63324EN-1/03

- 86 -

3.8 EFFECT OF MANUAL INTERVENTION

Section 4.7, "Manual Absolute On and Off," describes the effect of

manual intervention on the execution of the remaining part of the

program. This section describes in detail the relationship between

manual intervention and the ABS bit (bit 3) in parameter No. 2409, the

manual/ absolute switch, and the G90 and G91 modes.





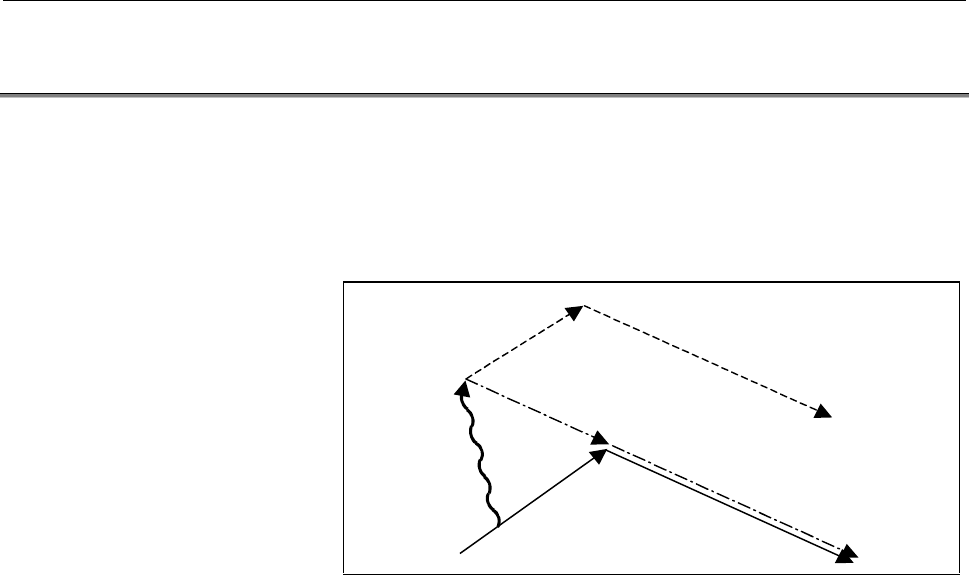

Program command

Manual

intervention

(1) When the manual/absolute switch is off: (1)

(2) When the manual/absolute switch is on:

(a) When the G90 mode is selected: (2)

(b) When the G91 mode is selected:

(i) When the INC bit in parameter No. 2409, is set to 0: (1)

(ii) When the INC bit 3 (ABS) is set to 1: (2)

In this case, the tool moves in the same manner as the

operation of the absolute command described in

Section 3.7, "Manual Absolute On/Off."
