M-code direct output function

(High Response Function)

10/16

SHEET

Example

In case another axis is started moving near the point B in the operation of

moving from the point A to the point C, and another program to terminate

the operation is started after the axis stops at the point C, as shown in the

above Fig.4, programs are as follows .

The signal Y1000.0 is turned on when

the axis reaches near the point B.

(Output after pulse distribution end

type)

The signal Y1000.1 is turned

on after the axis reaches the

point C.

(Immediate output type)

One program starts another program

by turning on Y1000.0. And another

axis is moved. Y1000.0 should be

turned off when the operation is

finished.

The program to terminate the

operation is executed by turning on

Y1000.1. Y1000.1 should be turned

off when the operation is finished.

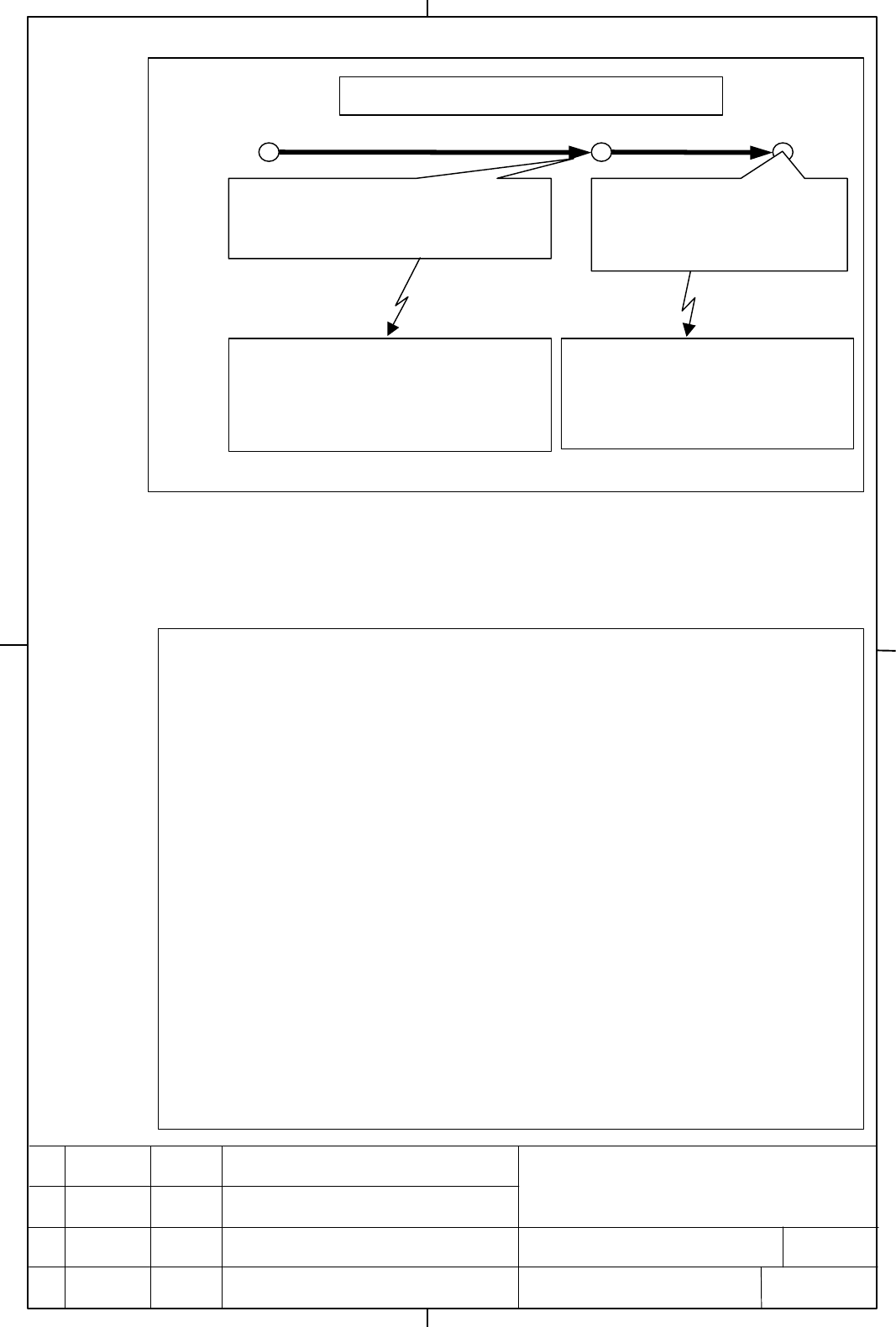

An axis is moved from A to B by way of C.

Fig. 4

Parameter No.7410=40

setting No.7415=1000

No.7420=2

The coordinate of the point

Point A: X0, Point B: X10000, Point C: X11000

Program to operate the part 1) 2).

O8000;

G91G01X10000F1000;

M40P1Q3; (Turn on Y1000#0 after the pulse distribution of X axis is finished)

G91G01X1000F1000;

G04P0;

M41P3Q1; (Turn on Y1000#1)

Program to operate the part 3) (Started by turning on Y1000#0)

O8001;

G91G01Y10000F2000;

M40P2Q2; (Turn off Y1000#0 after the pulse distribution of Y axis is finished)

Program to operate the part 4) (Started by turning on Y1000#1)

O8002;

G91G01Y-10000F2000;

G04P0;

M41P4Q0; (Turn off Y1000#1)
