B–63173EN–1/01

2. PREPARATIONS FOR OPERATION

When the CNC is turned on and becomes ready for operation, the CNC

ready signal is set to 1.

[Classification] Output signal

[Function] The CNC ready signal reports that the CNC is ready.

[Output condition] When the CNC is turned on and becomes ready for operation, the signal

is set to 1. Normally, it takes several seconds to establish this state after

the power is turned on. If a system alarm is issued, the signal is set to 0.

The signal remains set to 1, however, when an emergency stop or a similar

operation is performed.

[Classification] Output signal

[Function] Signal SA turns to “1” when the servo system is ready to operate. For an

axis that is to be braked, release the brake when this signal is sent and

apply the brake when this signal is not sent.

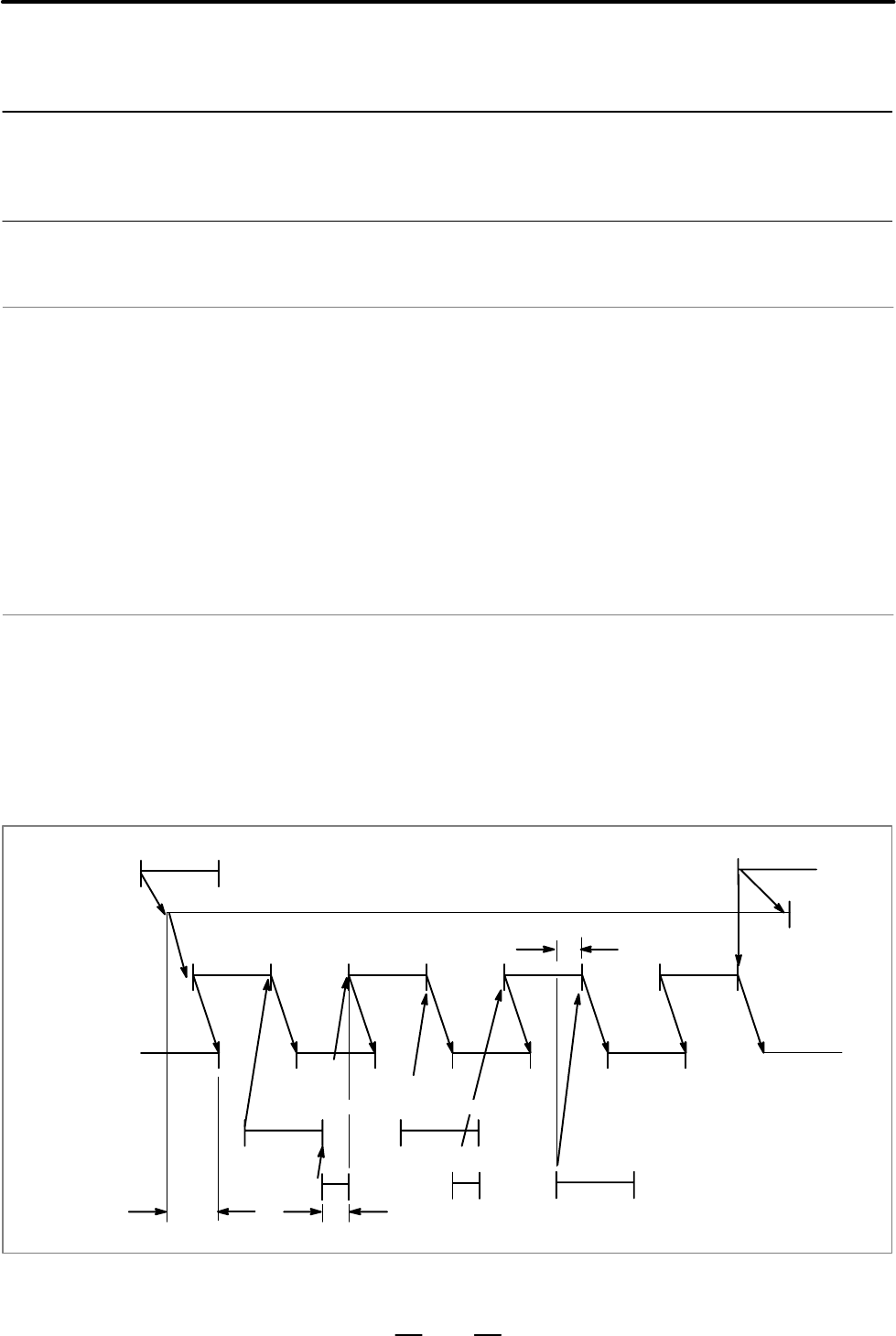

Time chart of this signal is as follows:

Power on

Ready signal (MA)

Power off

60A100 msec

Servo alarm Servo alarm

Overload

1 to 2 seconds

About 1 second

Reset

Emergency stop

Servo ready

signal (SA)

Brake on

Fig. 2.2 Time chart for servo ready signal

2.2

CNC READY SIGNAL

General

Signal

CNC Ready Signal

MA<F001#7>

Servo Ready Signal

SA <F000#6>
