/ 1173

B–63173EN–1/01

9. SPINDLE SPEED FUNCTION

388

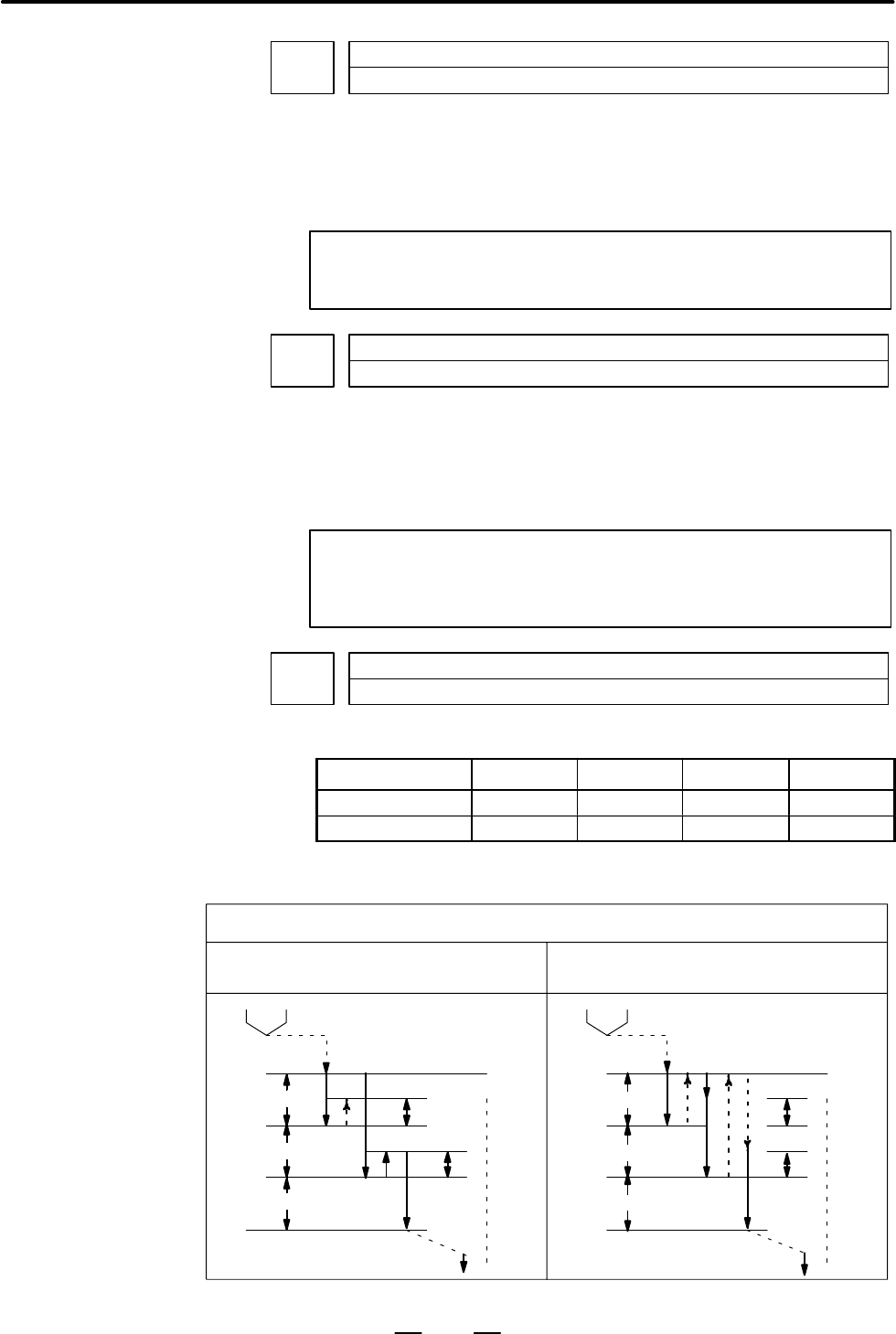

5210

Rigid tapping mode specification M code

[Data type] Byte

[Valid data range] 0 to 255

This parameter sets an M code that specifies the rigid tapping mode.

To set an M code larger than 255, set it to parameter No. 5212.

NOTE

The M code is judged to be 29 (M29) when “0” is set.

5211

Override value during rigid tapping extraction

[Data type] Byte

[Unit of data] 1 %

[Valid data range] 0 to 200

The parameter sets the override value during rigid tapping extraction.

NOTE

The override value is valid when DOV in parameter No.

5200#4 is “1”.

5213

Return or clearance in peck tapping cycle

[Data type] Word

Increment system IS–A IS–B IS–C Unit

Metric input 0.01 0.001 0.0001 mm

Inch input 0.001 0.0001 0.00001 inch

[Valid data range] 0 to 32767

This parameter sets the return or clearance in the peck tapping cycle.

When bit PCP in parameter No. 5200 is 0

(High–speed peck tapping cycle)

When bit PCP in parameter No. 5200 is 1

(Peck tapping cycle)

q : Cutting

d : Return

point

q : Cutting

d : Clearance

point

[Unit of data]
