POWER MATE i-MODEL D/H (FUNCTION) Connection manual (Function) Page 350

Connection manual (Function)

Page of 1173

/ 1173

B–63173EN–1/01

9. SPINDLE SPEED FUNCTION

337

low gear range, the gear select signal does not change and the command

output is calculated and output to obtain the set speed at high gear.

When the spindle motor speed is set by parameter GST (No. 3705#1)=1,

the command output is output regardless of gear select signal. When the

spindle motor speed is set, it is used for gear shift.

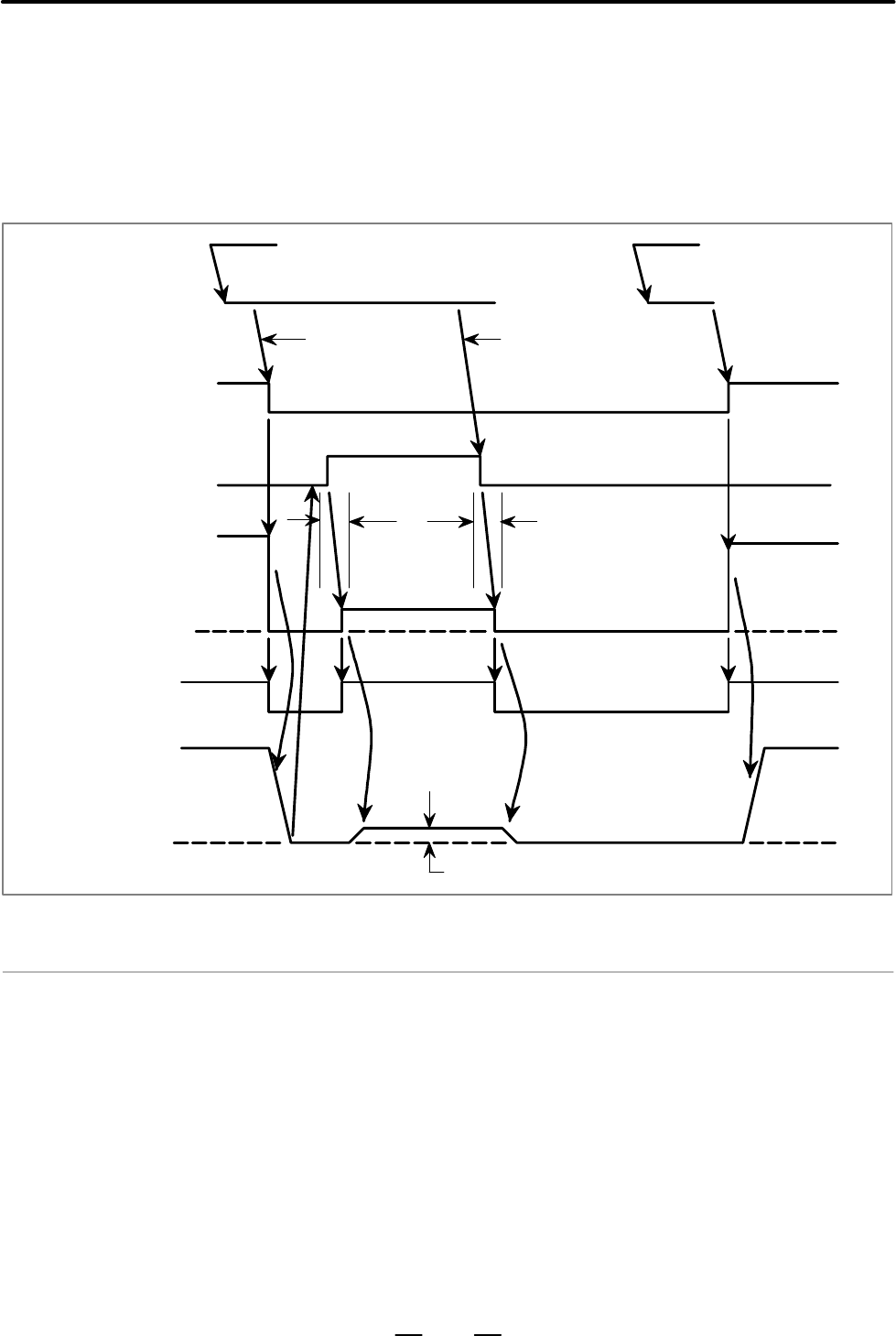

Example of usage is shown below:

Max. 70ms

M19

Input command

Miscellaneous function

processing

Spindle stop signal

*SSTP

Enable signal

ENB

Command output to

the spindle

Stop command

Orientation

detection

M03

Spindle orientation signal

SOR

Max. 70ms

RL: Constant speed set by parameter No. 3732

Spindle speed

0 rpm

[Classification] Input signal

[Function] This signal keeps the spindle motor at a constant rotation speed, if a gear

shift occurs when spindle orientation is in progress.

[Operation] When spindle orientation is in progress, setting the gear shift signal to 1

causes a constant command output to be generated regardless of the gear

position, if the rotation speed of the spindle motor has been specified. The

signal can be used for gear shifting if the spindle motor rotation speed has

been specified. The signal implements a function equivalent to that of the

GST parameter (bit 1 of parameter No. 3705). It is valid if GST is 0.

Gear shift signal GST

<G212#5>
