POWER MATE i-MODEL D/H (FUNCTION) Connection manual (Function) Page 1126

Connection manual (Function)

Page of 1173

/ 1173

Note.

The following period is regarded as a sub-program is under execution.

(1) Start execution of sub-program

Immediately after the block just before the block with M98 is started

execution in the program that call a sub-program.

(2) End execution of sub-program

When all axis command and M-code command are completed in a

sub-program after M99 is executed.

Example)

Main-program Sub-program

O8000 G91 G00 X10000 ; ...(1)

#1200000 = #1200000 +1 ; ...(2)

M98 P7000 ; ...(3) O7000 G91 G00 Y10000 ; ...(11)

G91 G00 X10000 ; ...(4) M99 ; ...(12)

% %

In case above main-program O8000 is executed, the period shown

in the following figure is regarded as a sub-program O7000 is

being executed.

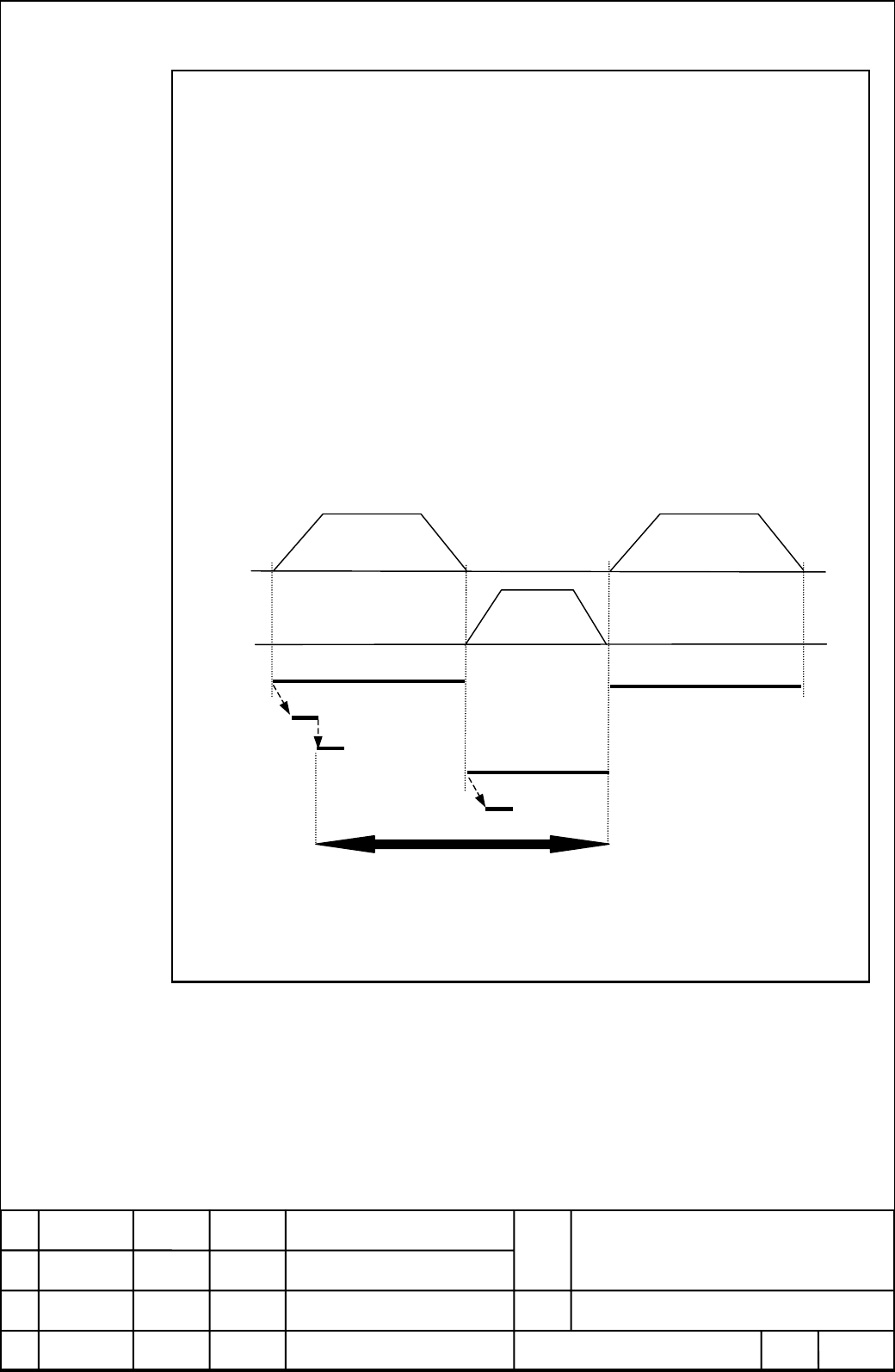

Execution of block (4)

Execution of sub-program O7000

Execution of block (12)

Execution of block (11)

Execution of block (3)

Execution of block (2)

Execution of block (1)

Motion command (4)

Motion command (11)

Motion command (1)

EDIT

DATE DISIGNE

DESCRIPTION

TITLE

DRAW

FANUC Power Mate i - MODEL H

Sub program call for high-speed

response function

B-63173EN-1/01-39

SHEET

7/12

APPROV.

FANUC LTD

01 020621 New design
