7. FEEDRATE CONTROL/ACCELERATION

AND DECELERATION CONTROL

264

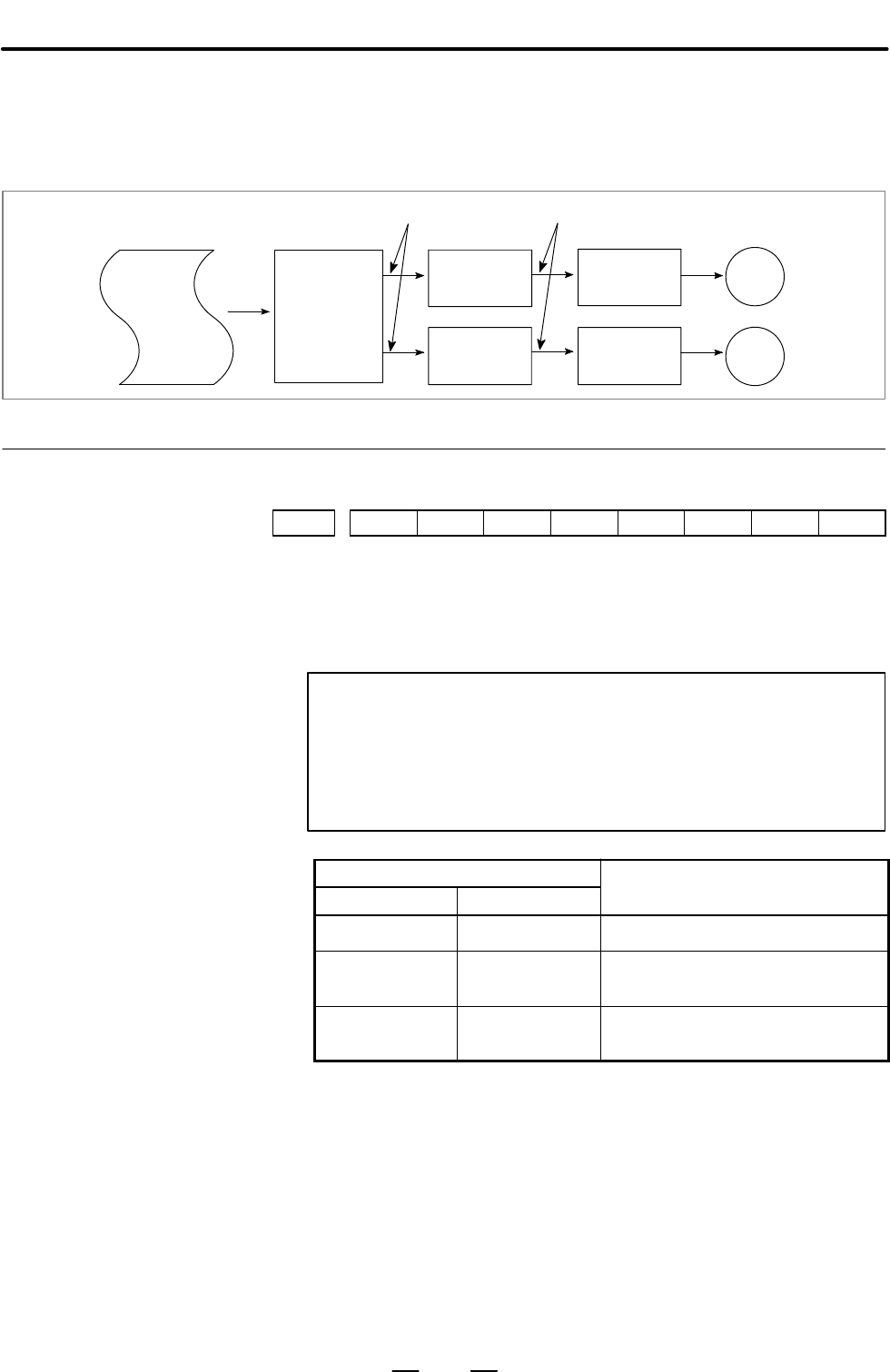

Cutting feed: Exponential acceleration/deceleration (time constant per

axis is set by parameter 1622)

Jog feed : Exponential acceleration/deceleration (time constant per

axis is set by parameter 1624)

CNC

command

Pulse

distribution

(interpolation)

Rate after interpolation Rate after acceleration/deceleration

Servo motor

Acceleration/

deceleraton

control

Acceleraton/

deceleration

control

Servo control

1610

#6 #5 #4

JGLx

#3 #2 #1

CTBx

CTLx

[Data type] Bit axis

CTLx Acceleration/deceleration in cutting feed including feed in dry run

0 : Exponential acceleration/deceleration is applied.

1 : Linear acceleration/deceleration after interpolation is applied.

NOTE

To use bell–shaped acceleration/deceleration after

interpolation, set this parameter to 0 and select the

acceleration/deceleration using CTBx, bit 1 of parameter

No. 1610.

Parameter

Acceleration/deceleration

CTBx CTLx

Acceleration/deceleration

0 0 Exponential acceleration/deceleration

0 1 Linear acceleration/deceleration after

interpolation

1 0 Bell–shaped acceleration/decelera-

tion after interpolation

CTBx Acceleration/deceleration in cutting feed including feed in dry run

0 : Exponential acceleration/deceleration or linear acceleration/decel-

eration after interpolation is applied (depending on the setting in

CTLx, bit 0 of parameter No. 1610).

1 : Bell–shaped acceleration/deceleration after interpolation is applied.

JGLx Acceleration/deceleration in manual continuous feed (jog feed)

0 : Exponential acceleration/deceleration is applied.

1 : Linear acceleration/deceleration after interpolation or bell–shaped

acceleration/deceleration after interpolation is applied (depending on

which is used for cutting feed).

Parameter
