POWER MATE i-MODEL D/H (FUNCTION) Connection manual (Function) Page 812

Connection manual (Function)

Page of 1173

/ 1173

B-63173EN-1/01-15

7/17

EDIT

DATE DESIG. DESCRIPTION

FANUC Power Mate i-MODEL H

Enhancement of Electronic CAM

Function Specifications

DRAW.NO. CUST.

SHEET

00.08.07 New design

TITLE

In case of start

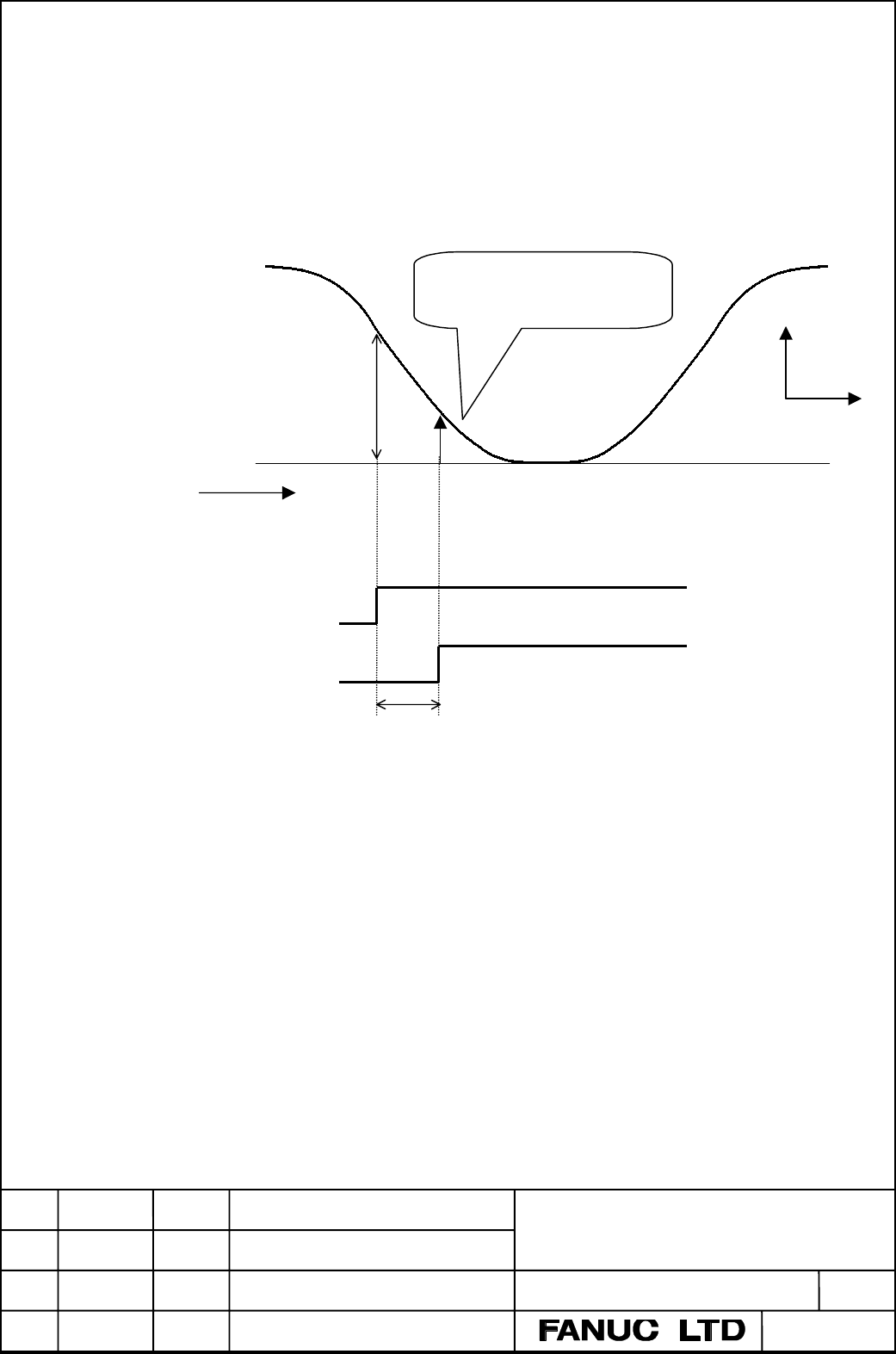

Suppose that the relation between the position of the CAM follower and the phase

of the CAM shaft is shown in the following figure and the CAM follower points A, B, C

correspond to the CAM shaft points P, P’, P”. Suppose that there is no delay to get

the CAM shaft position to simplify the explanation.

At first, the CAM follower stops at the point A. If CAM follower selection signal

ELCAM*G238 is turned to “1” to start when the CAM shaft comes to the point P, the CAM

follower can synchronize with the CAM shaft without a shock.

If ELCAM* is turned to “1” when the CAM shaft comes to the point P’ where the CAM

follower should not start, the moving distance of the CAM follower is L, because the CAM

follower will move from A to B. If the CAM follower starts moving without any compensation,

the CAM follower is given a big shock. To reduce this shock, the parameter No.8090 to set

the tolerance of the velocity difference of the CAM follower is prepared.

Suppose that the value S is set in this parameter. Then if the velocity difference is

greater than S, the CAM follower is not started and keeps waiting. If the velocity difference

to the point C is S (L’=S), the CAM follower can move at velocity S when the CAM shaft

comes to the point P”. When the CAM follower moves from A to B, the velocity difference

is L and greater than S. In this case, the CAM follower is not moved. If the CAM shaft passes

the point P”, the CAM follower moves to C and synchronizes with the CAM shaft.

•

P’

Distance correspond to the

tolerance of the velocity

difference of CAM follower

CAM follower selection

signal ELCAM*

•

L’

•

P’’

Stop

Start

Waiting for start

CAM shaft revolving

direction

CAM follower motion

CAM shape

CAM

follower

position

CAM shaft

position
