6. INTERPOLATION FUNCTION

243

The command below can move a tool along a circular arc in the defined

plane.

“Clockwise”(G02) and “counterclockwise”(G03) on the X

plane

plane or Y

plane) are defined when the X

plane is viewed

in the positive–to–negative direction of the Z

axis (Y

axis or X

axis,

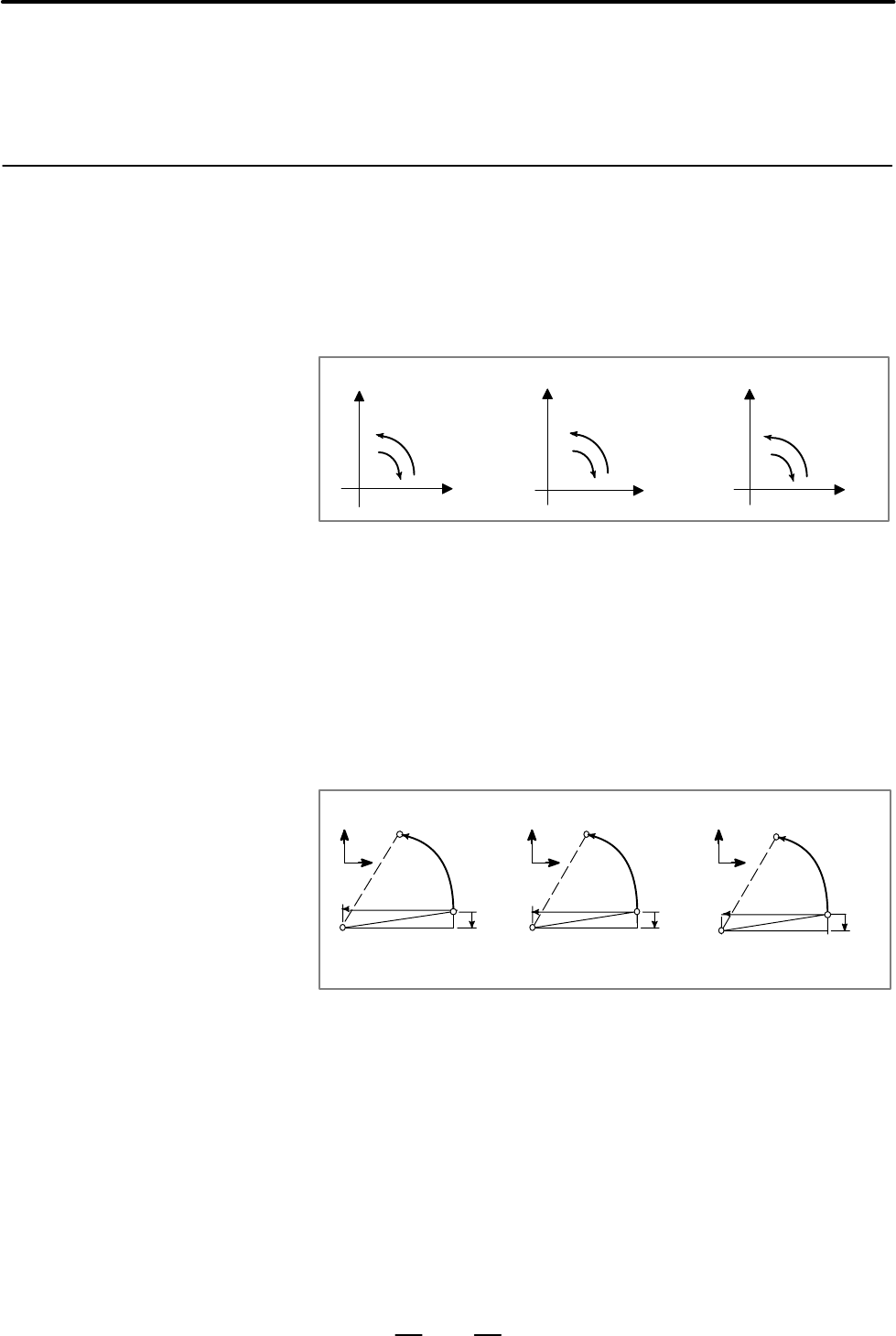

respectively) in the Cartesian coordinate system. See the figure below.

G02

G03

G17

G18

G19

G02

G03

G02

G03

The end point of an arc is specified by address Xp, Yp or Zp, and is

expressed as an absolute or incremental value according to G90 or G91.

For the incremental value, the distance of the end point which is viewed

from the start point of the arc is specified with a sign.

The arc center is specified by addresses I, J, and K for the Xp, Yp, and Zp

axes, respectively. The numerical value following I, J, or K, however, is

a vector component in which the arc center is seen from the start point,

and is always specified as an incremental value, as shown below.

I, J, and K must be signed according to the direction.

End point (x,y)

Center

Start

point

End point (z,x)

End point (y,z)

Start

point

Start

point

Center

I0,J0, and K0 can be omitted. When X

, and Z

are omitted (the end

point is the same as the start point) and the center is specified with I, J,

and K, a 360_ arc (circle) is specified.

G02 Ii; Command for a circle

If the difference between the radius at the start point and that at the

end point exceeds the value in a parameter (No.3410), an alarm (No.020)

occurs.

6.3

CIRCULAR

INTERPOLATION

General
