B–63173EN–1/01

15. PMC CONTROL FUNCTION

529

[Classification] Output signal

[Function] This signal is set to “1” when the tool is moving along the corresponding

PMC–controlled axis according to commands such as rapid traverse

(EC0g to EC6g: 00h) and cutting feed (EC0g to EC6g: 01h).

NOTE

This signal is set to “0” when distribution for the axis is

completed (the signal is set to “0” during deceleration).

[Classification] Output signal

[Function] When an auxiliary function (EC0g to EC6g: 12h) is specified by the

PMC, this signal is set to “1” during the period from when auxiliary

function codes EID0g to EID15g are sent to auxiliary function code

signals EM11g to EM48g until auxiliary function completion signal

EFINg is returned.

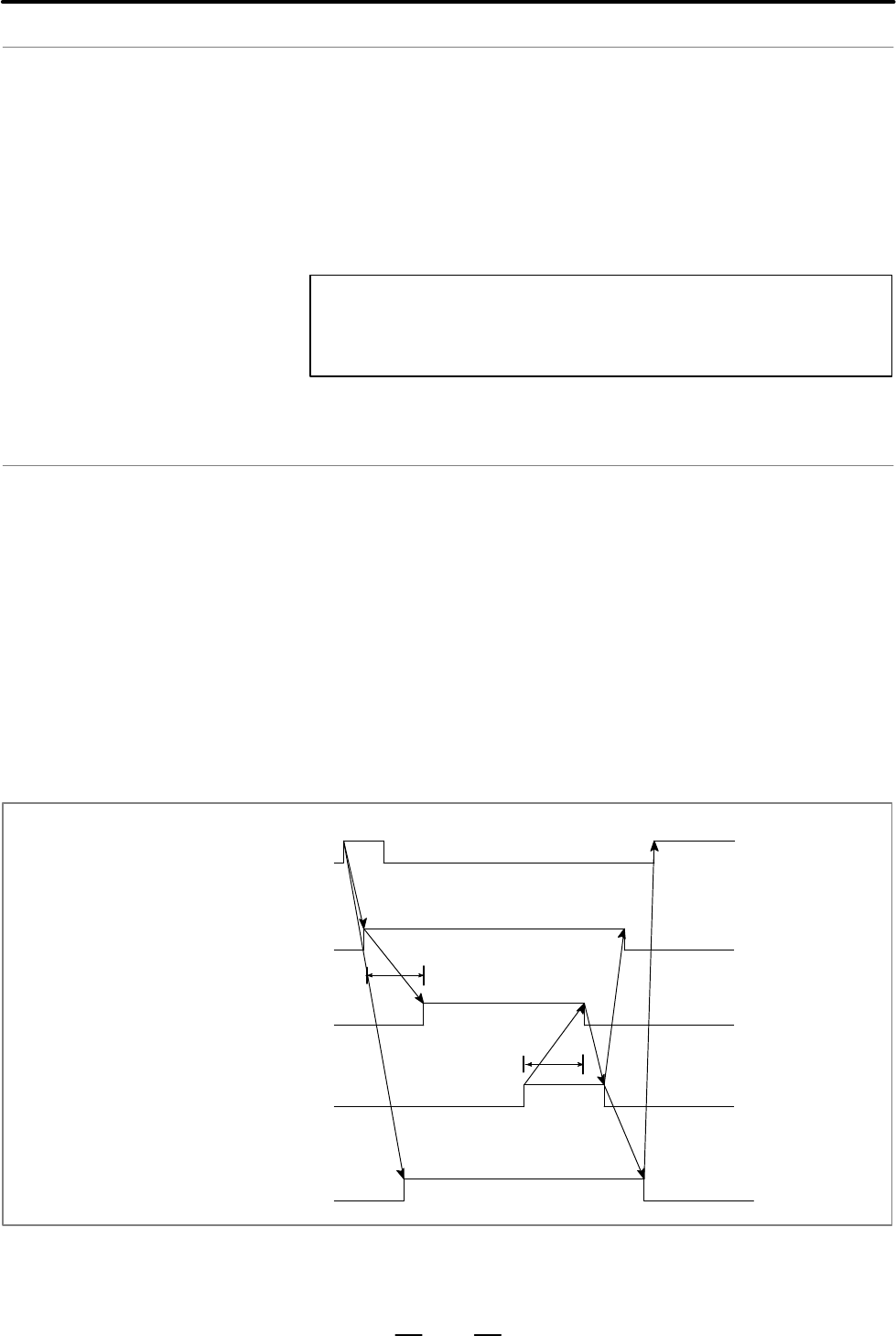

The timing chart for the command operation is shown below.

Command block

(input)

EM11g to EM48g

(output)

EMFg

(output)

EFINg

(input)

EDENg

(output)

Auxiliary function command Next command

TFIN

TMF

TMF and TFIN are set with parameters No. 3010 and 3011.

20 Axis moving signal

EGENg

21 Auxiliary function

executing signal

EDENg
