15. PMC CONTROL FUNCTION

B–63173EN–1/01

524

[Classification] Input signal

[Function] When this signal is set to “1”, the following is performed:

(1) When the tool is moving along the axis: Decelerates and stops the

tool.

(2) When the tool is dwelling: Stops the operation.

(3) When an auxiliary function is being executed: Stops the operation

when auxiliary function completion signal EFINg is input.

The stopped operation can be restarted by setting this signal to “0”.

[Classification] Input signal

[Function] When block stop signal ESBKg is set to “1” during the execution of a

command issued from the PMC, axis control is stopped after the block

being executed is completed. When this signal is set to “0”, the buffered

command is executed. Block stop signal ESBKg is disabled when block

stop disable signal EMSBKg is set to “1” for the block.

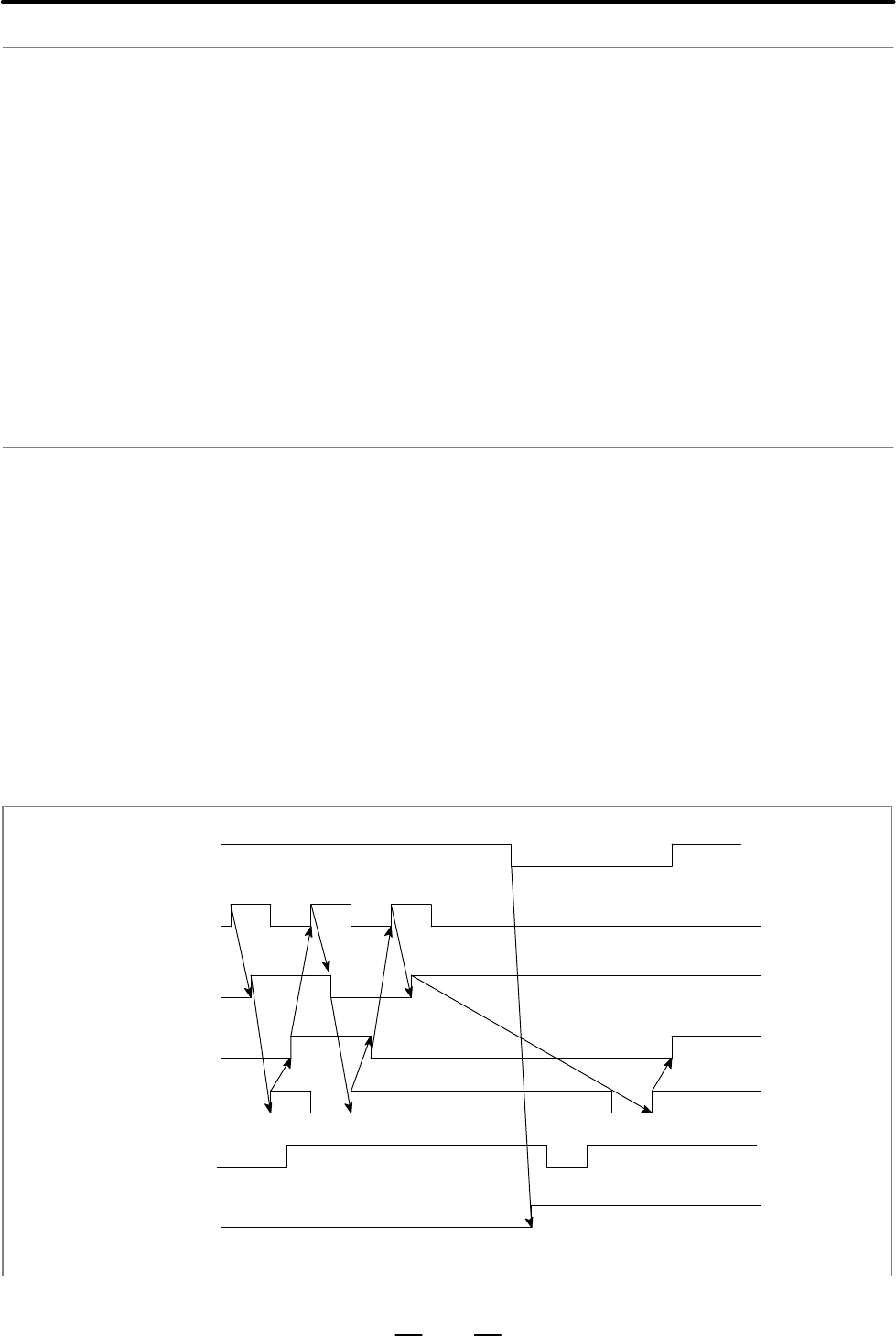

The timing chart for the command operation is shown below.

ESBKg

(input)

Command

block

(input)

EBUFg

(input)

EBSYg

(output)

Input buffer

Waiting buffer

Executing

buffer

|← More than →|

8 msec

Beginning of execution

[1] [2] [3]

[1]

The buffer is full.

[2]

[3]

[1]

[2]

8 Axis control

temporary stop signal

ESTPg

9 Block stop signal

ESBKg

10 Block stop disable

signal EMSBKg
