B–63173EN–1/01

15. PMC CONTROL FUNCTION

549

The following signals are used to send data from the PMC to the CNC.

Signal name Signal code

Data signal for external data input (input)

Address signal for external data input (input)

Read signal for external data input (input)

Read completion signal for external data input

(output)

Search completion signal for external data input

(output)

ED0 to ED15

EA0 to EA6

ESTB

EREND

ESEND

The basic external data input procedure is described below:

(1)The PMC sets address signals EA0 to EA6 that indicate the data type

and data signals ED0 to ED15.

(2)The PMC sets read signal ESTB to “1”.

(3)When the ESTB signal is set to “1”, the control unit reads the address.

(4)After reading the address, the control unit sets read completion signal

EREND to “1”.

(5)When the EREND signal is set to “1”, the PMC sets the ESTB signal

to 0.

(6)When the ESTB signal is set to “0”, the control unit sets the EREND

signal to 0.

This completes the data input procedure. New data can now be entered.

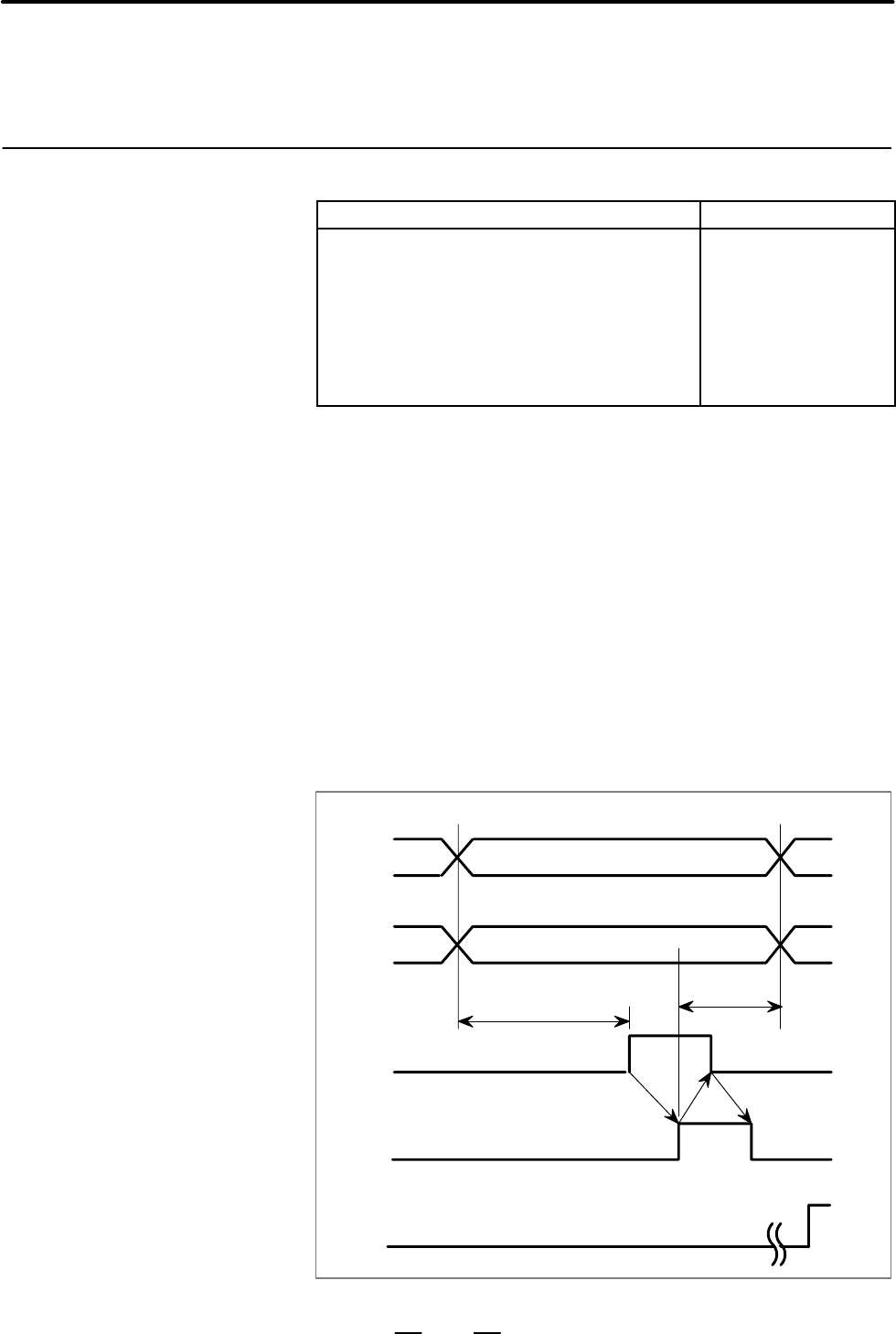

The timing diagram is shown below:

32 ms or more

0 ms or

ESTB

EREND

ED0 to 15

EA0 to 6

Only for external program number search

ESEND

End of

15.2

EXTERNAL DATA

INPUT

General
