POWER MATE i-MODEL D/H (FUNCTION) Connection manual (Function) Page 186

Connection manual (Function)

Page of 1173

/ 1173

B–63173EN–1/01

4. REFERENCE POSITION ESTABLISHMENT

173

+J1, –J1, or ZR1

Grid

ZP1

ZRF1

Feedrate



Manual reference

position return

mode

FL rate



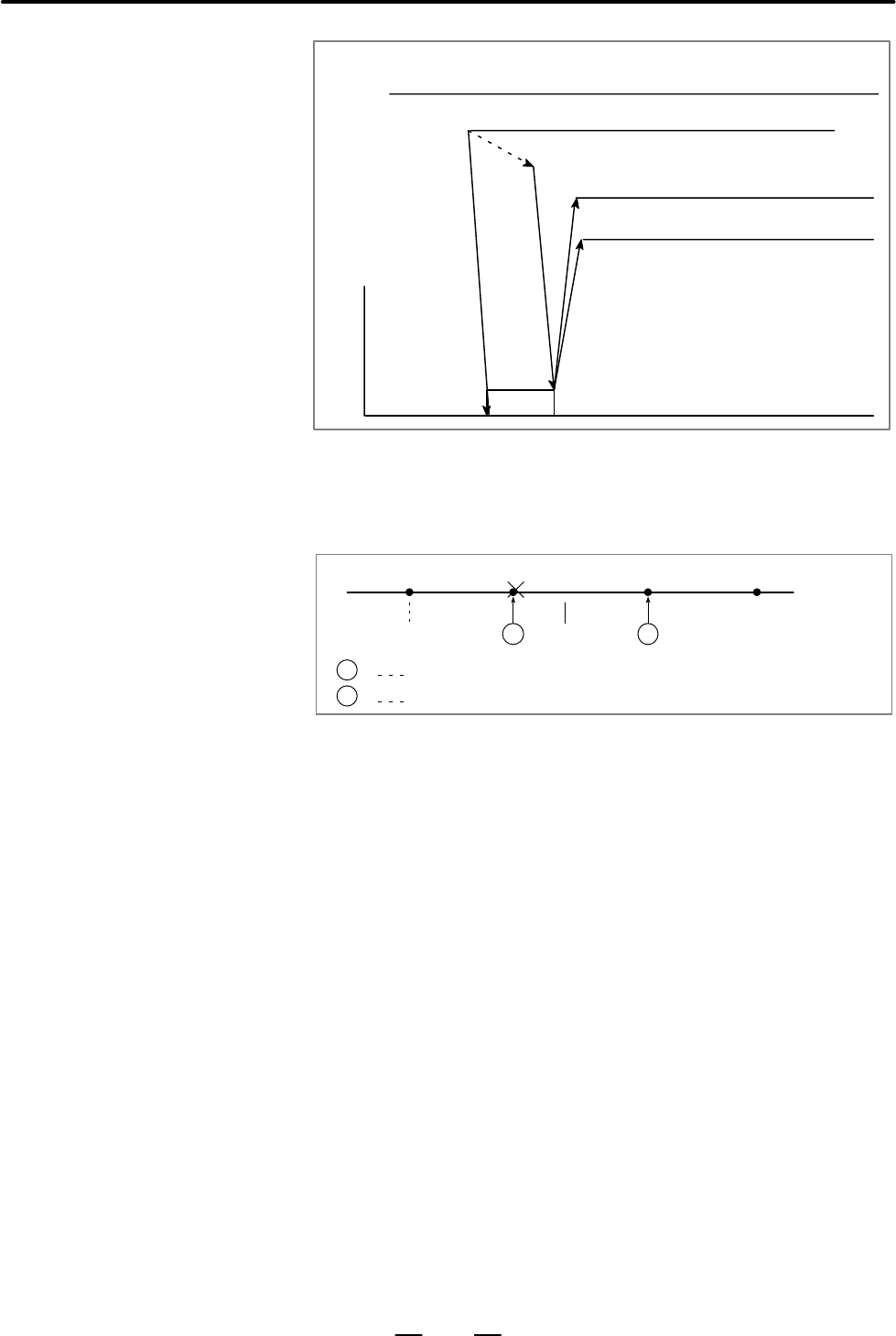

The following figure shows the positional relation between the reference

position and the point to which the tool is positioned by manual

continuous feed.

Grid

– direction

Position

after jog feed

+ direction

Reference position for reference position return in the negative direction

Reference position for reference position return in the positive direction

To set the reference position without dogs, when the reference position

has not yet been established, the tool must be fed, in manual continuous

feed mode, in the reference position return direction at such a speed that

the servo position error exceeds the value set in parameter No. 1836. The

tool must cross the grid line corresponding to a one–rotation signal from

the position detector.

Section 4.1 explains how to calculate the servo position error.

To shift the reference position, the grid can be shifted by the distance set

in parameter No. 1850. The grid shift to be set in the parameter must not

exceed the reference counter capacity (parameter No. 1821).

It is possible to keep resetting a new grid point as a reference position,

with the above mentioned method, when the set reference position is

different from the true reference position. After setting the reference

position using the method given in (a), when the ZRn signal is turned ON,

it moves at a constant low speed to the next grid point and that point is

set as the new reference position. This operation can be repeated over

again allowing the true reference position to be set while changing it 1 grid

at a time.

Servo position error and

one–rotation signal

Grid shift

Reference position

resetting operation
