13. INPUT/OUTPUT OF DATA

B–63173EN–1/01

490

[Classification] Output signal

[Function] This signal indicates that an alarm condition has occurred during program

registeration, collation, or output triggered by the external read or punch

start signal.

[Output condition] This signal becomes logical 1, when:

D An alarm condition occurs during program registeration, collation, or

output triggered by the external read or punch start signal.

This signal becomes logical 0, when:

D The system is reset, or the external read/punch stop signal EXSTP is

input.

EXRD

EXSTP

PRBSY

BGEACT

Read start Read start Read startRead end Read interruption

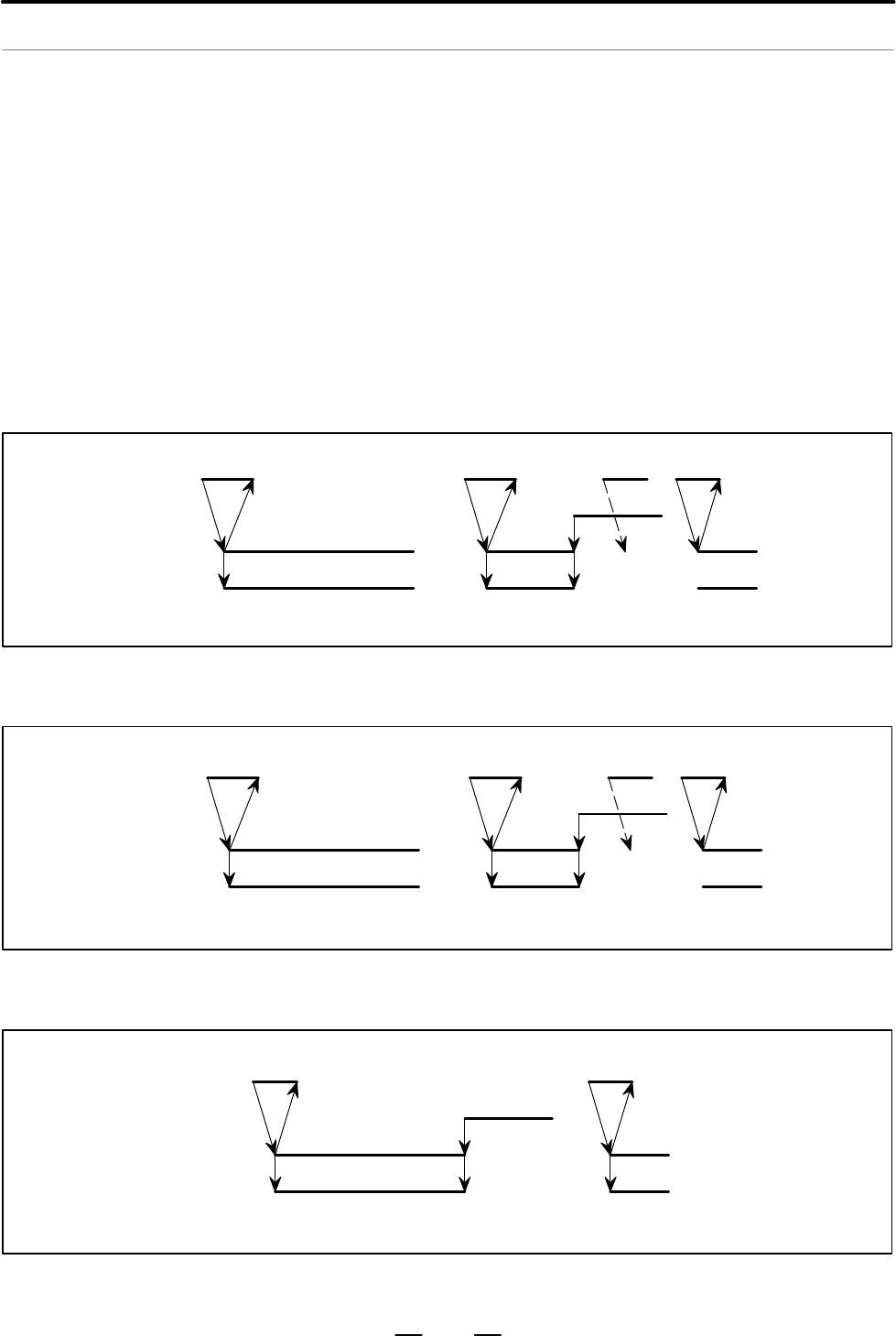

Fig.13.2 (b) Part Program Loading Operation

EXWT

EXSTP

PRBSY

BGEACT

Punch start Punch end Punch start Punch interruption Punch start

Fig.13.2 (c) Part Program Outputting Operation

EXRD or EXWT

RPALM

PRBSY

BGEACT

Read/punch start Read/punch interruption Read/punch start

Fig.13.2 (d) When an External Read/Punch Alarm Occurs

Read/punch alarm signal

RPALM <F053#3>
