POWER MATE i-MODEL D/H (FUNCTION) Connection manual (Function) Page 517

Connection manual (Function)

Page of 1173

/ 1173

15. PMC CONTROL FUNCTION

B–63173EN–1/01

504

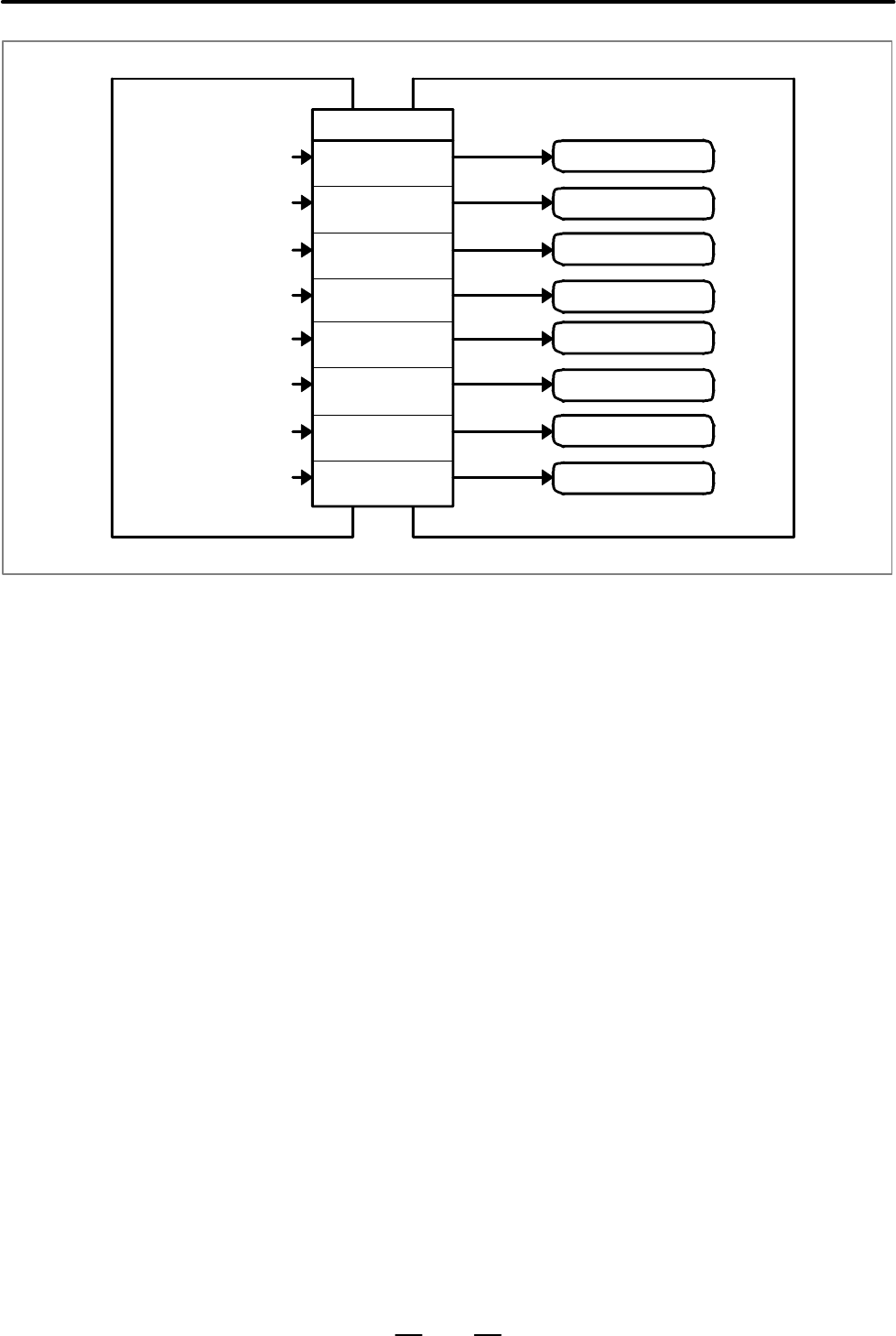

Commands from path 1

Commands from path 2

Commands from path 3

Commands from path 4

Commands from path 5

Commands from path 6

Commands from path 7

Commands from path 8

α axis control

β axis control

γ axis control

ε axis control

Group A

Group B

Group C

PMC CNC

DI/ DO

Group D

ε axis control

ζ axis control

η axis control

θ axis control

Group E

Group F

Group G

Group H

In the following description, input/output signals from the four paths are

called group A (path 1), group B (path 2), group C (path 3), group D (path

4), group E (path 5), group F (path 6), group G (path 7), and group H (path

8), respectively.

The name of an input/output signal used for PMC axis control always

contains a lowercase “g”, as in EBUFg. However, there is no such signal

as EBUFg. The actual signal names represented by EBUFg are EBUFA,

EBUFB, EBUFC, EBUFD, EBUFE, EBUFF, EBUFG, and EBUFH,

which respectively correspond to signals of group A (path 1), group B

(path 2), group C (path 3), group D (path 4), group E (path 5), group F

(path 6), group G (path 7), and group H (path 8).

(1) In parameter No. 8010, specify which DI/DO signal group (A, B, C,

or D) is to be used for PMC axis control on a per–axis basis.

When using the same group for simultaneously controlling two or

more axes, check that the settings of the parameters related to

feedrate (rapid traverse rate, acceleration/deceleration time

constant, linear axis/rotation axis, etc.) are identical for each axis to

be controlled.

(2) To enable direct PMC axis control, set each control axis selection

signal (EAX1 to EAX8), that corresponds to an axis to be controlled,

to 1.

(3) Determine the operation.

The axis control command signals (EC0g to EC6g) specify the type

of operation. The axis control feedrate signals (EIF0g to EIF15g)

specify the feedrate. The axis control data signals (EID0g to

EID31g) specify the moving distance and other data.

Basic procedure
