7. FEEDRATE CONTROL/ACCELERATION

AND DECELERATION CONTROL

279

A specified cutting feedrate can be linearly increased or decreased before

interpolation. This function eliminates machining profile errors caused

by the delay occurring in acceleration or deceleration. The time required

for acceleration or deceleration by this function is significantly shorter

than that by the function of exponential acceleration/deceleration.

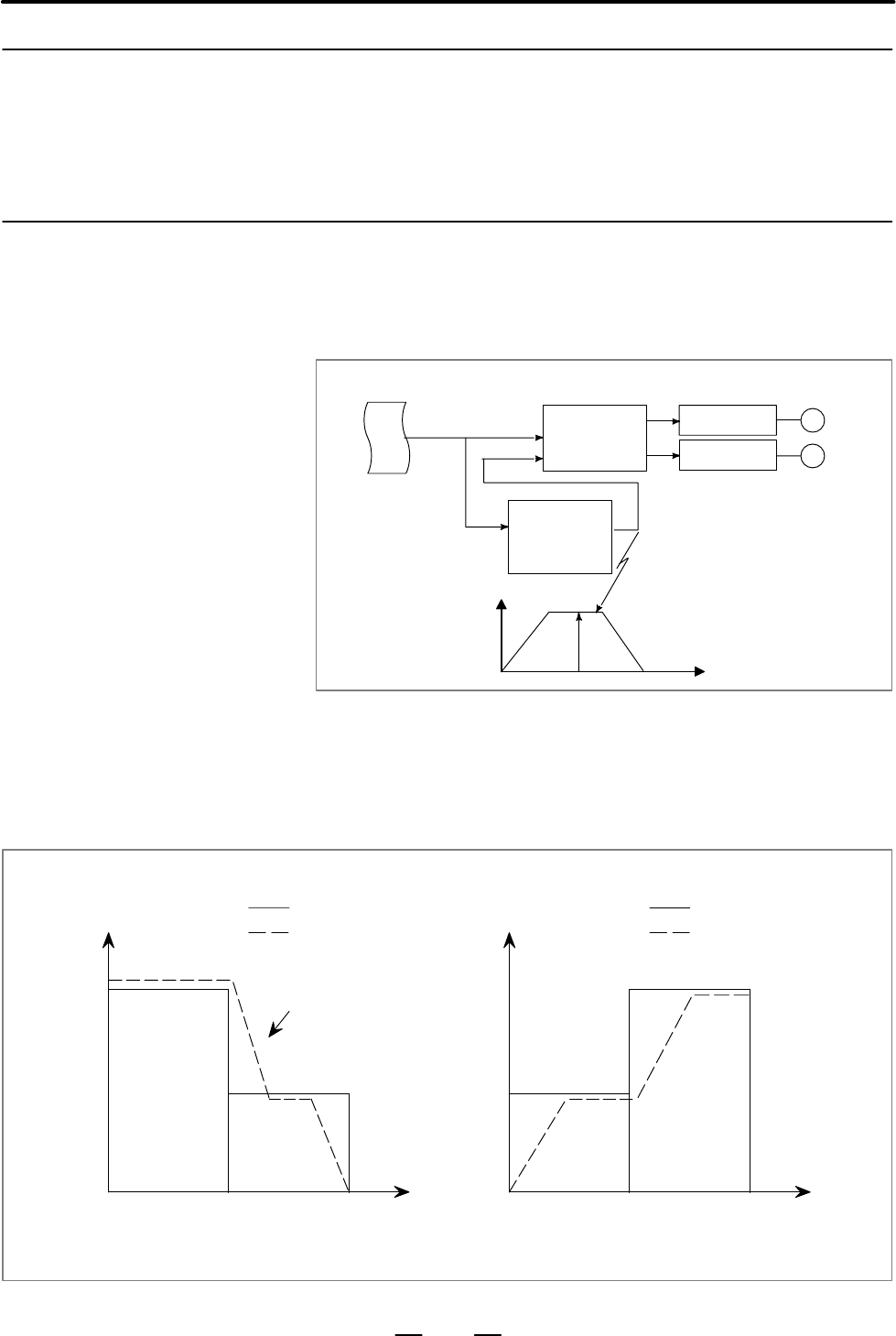

CNC command

Servo control

Servo motor

Feedrate

Speed

Time

Feedrate

command

Move data

F: Value of feedrate command

Pulse

distribution

(interpolation)

Servo control

Linear accel-

eration/decel-

eration before

interpolation

The function of linear acceleration/deceleration before interpolation in-

creases or decreases the feedrate specified in the tangential direction.

If the feedrate command is changed

Acceleration/deceleration is started in the block in which a new feedrate

command is specified.

A type

Command feedrate

Feedrate after accel-

eration/deceleration

before interpolation

Command feedrate

Feedrate after accel-

eration/deceleration

before interpolation

Feedrate

Time

N1 N2

Feedrate

Time

N1 N2

With B type, to decelerate from F3 to F2,

deceleration must start with point P.

7.2.5

Linear Acceleration/

Deceleration before

Cutting Feed

Interpolation

General

Contents Summary of POWER MATE i-MODEL D/H (FUNCTION) Connection manual (Function)
