B–63173EN–1/01

9. SPINDLE SPEED FUNCTION

331

D When Gear select signal change

Gear select signal

S code read

TFIN

TMF

To next block

FIN

Spindle speed command

GR3O

/GR2O

/GR1O

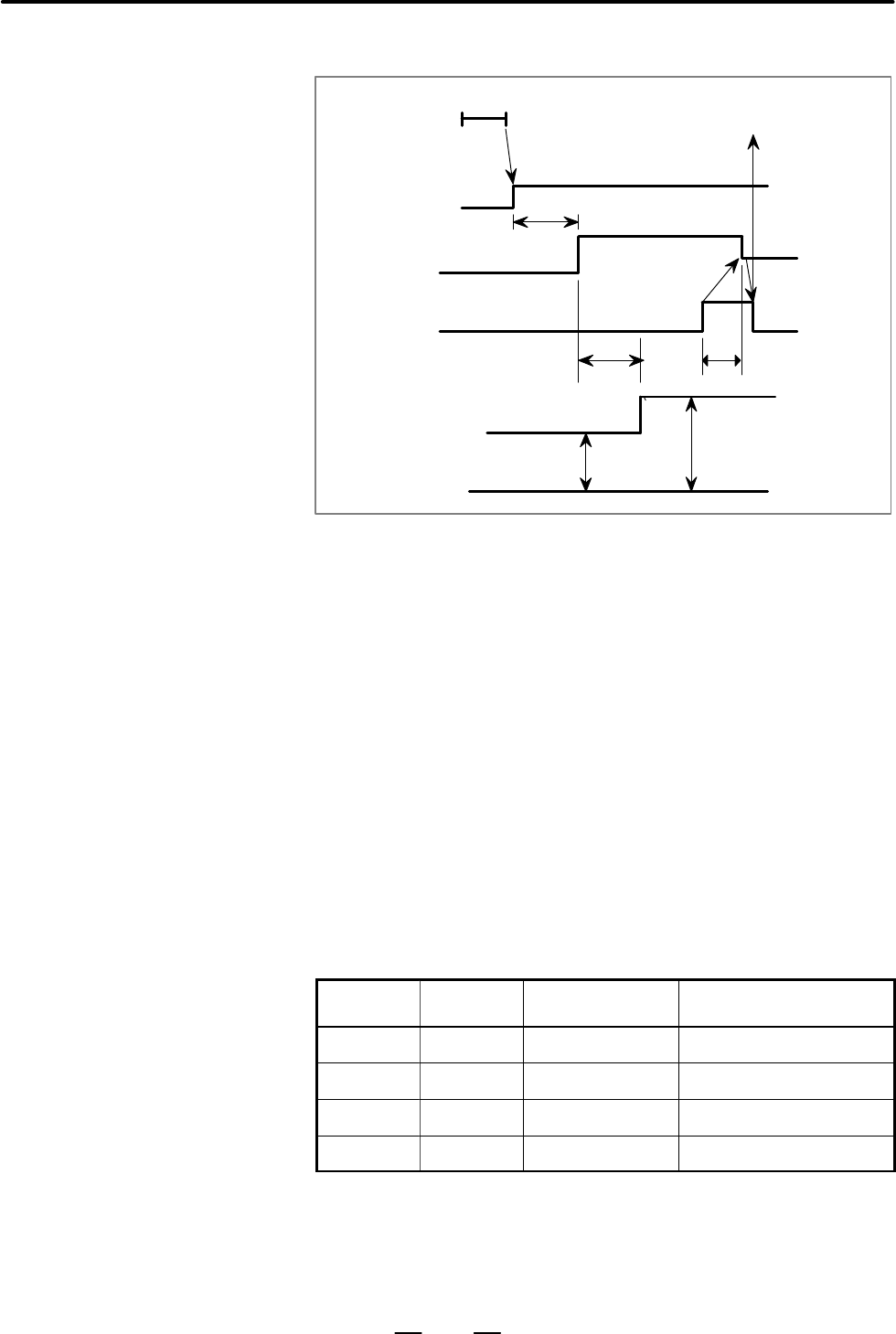

Fig. 9.3 (e) Time chart when gear select signal changes

In this case, the gear select signal is output; after elapse of the time

constant set by parameter (TMF), the SF signal is output. After another

TMF elapse, the spindle speed command is output. On the PMC side,

change the gears by this signal, and return the FIN signal after the end of

gear change. The time chart for SF and FIN signals is the same as in S

code output.TMF, set by parameter No. 3010, is common to M, S and T

functions.

Moreover, specifying bit 6 (SFA) of parameter No. 3705 can specify that

the SF signal be output even if no gear change is used.

To perform the T type gear changing, the maximum spindle speed for each

gear select signal issued from the PMC side must be set by parameter No.

3741-3744.

The gear select signal is a 2 bit code signal (GR1, GR2). The relationship

between the signal and gear number is :

GR1 GR2 Gear No.

Parameter No. for max.

spindle speed

0 0 1 No. 3741

1 0 2 No. 3742

0 1 3 No. 3743

1 1 4 No. 3744

The following descriptions exemplify the analog spindle. Like the

descriptions of the M type, they also apply to the serial spindle on the

assumption that spindle motor speed with analog voltage 10 V

corresponds to the maximum spindle motor speed.

D Details of T type

(Input of GR1, GR2)
