12. DISPLAY/SET/EDIT

B–63173EN–1/01

456

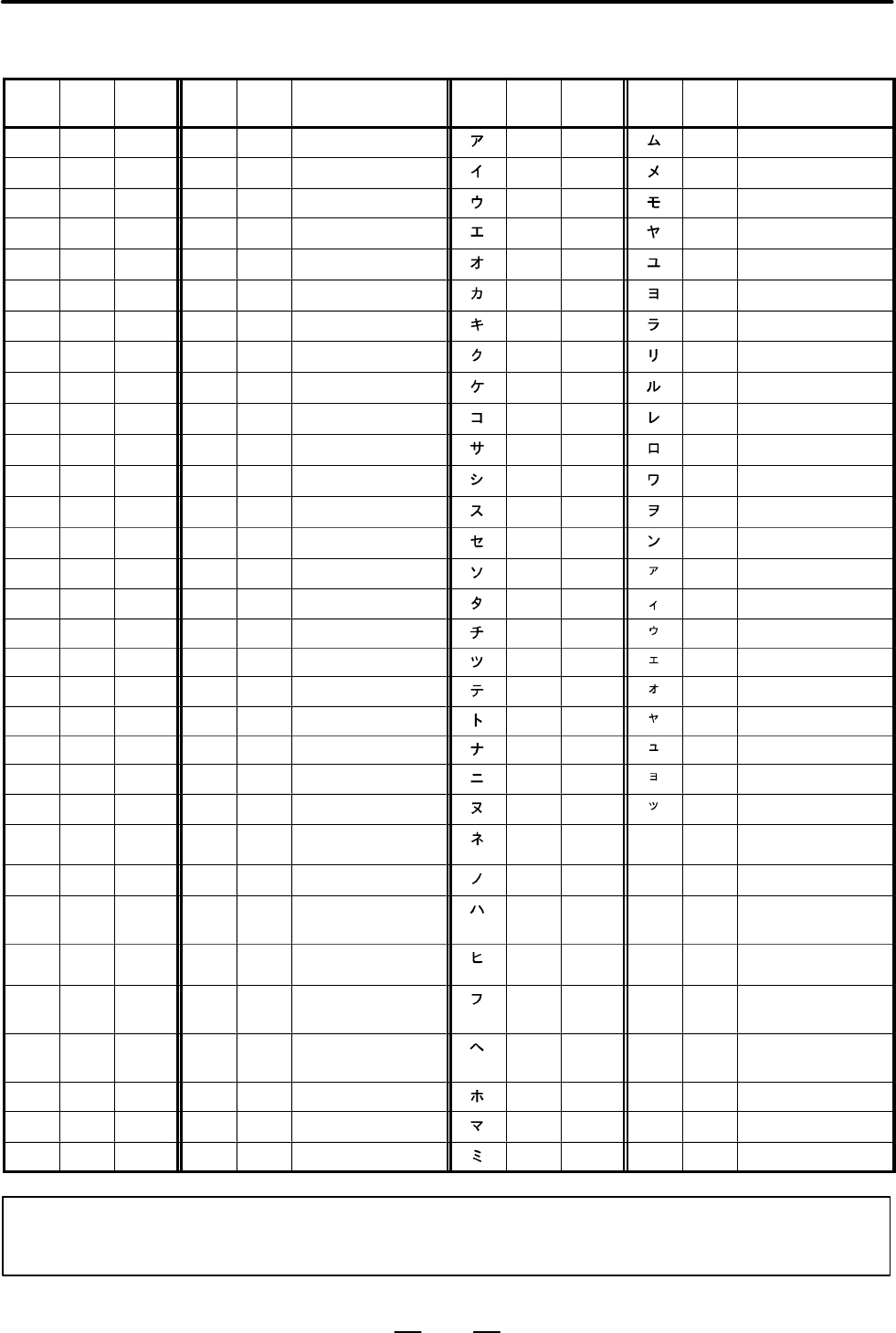

Character to Code Correspondence Table

Char-

acter

Code

Com-

ment

Char-

acter

Code Comment

Char-

acter

Code

Com-

ment

Char-

acter

Code Comment

A 065 6 054 177 209

B 066 7 055 178 210

C 067 8 056 179 211

D 068 9 057 180 212

E 069 032 Space 181 213

F 070 ” 034 Quotation marks 182 214

G 071 # 035 Number 183 215

H 072 $ 036 Dollar mark 184 216

I 073 % 037 Percent 185 217

J 074 & 038 Ampersand 186 218

K 075 ’ 039 Apostrophe 187 219

L 076 ( 040 Left parenthesis 188 220

M 077 ) 041 Right parenthesis 189 166

N 078 * 042 Asterisk 190 221

O 079 + 043 Positive sign 191 167

P 080 , 044 Comma 192 168

Q 081 – 045 Negative sign 193 169

R 082 . 046 Period 194 170

S 083 / 047 Slash 195 171

T 084 : 058 Colon 196 172

U 085 ; 059 Semicolon 197 173

V 086 < 060 Left angle bracket 198 174

W 087 = 061 Equal sign 199 175

X 088 > 062 Right angle bracket 200

222 Dakuten

Y 089 ? 063 Question mark 201 ° 223 Han dakuten

Z 090 @ 064 Commercial at

mark

202

161 Full stop

0 048 [ 091 Left square bracket 203



162 Left quotation mark

1 049 ¥ 092 Yen mark 204



163 Right quotation

mark

2 050 ] 093 Right square

bracket

205 , 164 Comma

3 051 ^ 094 206 · 165 Centered dot

4 052 _ 095 Underline 207 000 Space

5 053 208

NOTE

The “dakuten” and “han dakuten” in Katakana also correspond to one character.
