9. SPINDLE SPEED FUNCTION

332

In addition, for the speed command output to the spindle motor, analog

voltages 0 to 10 V for analog spindle control correspond to digital data

0 to 16383 for serial spindle control. However, it might be easier if you

consider them code signals from 0 to 4095 for convenience sake without

distinguishing between serial and analog spindles.

Assume that gear switching is two stage switching. If the spindle speed

with the output voltage 10 V is 1000 rpm for the low speed gear (G1) and

2000 rpm for the high speed gear (G2), set these speeds by the parameter

No. 3741, 3742. In this case, the analog voltage has the linear relationship

shown below.

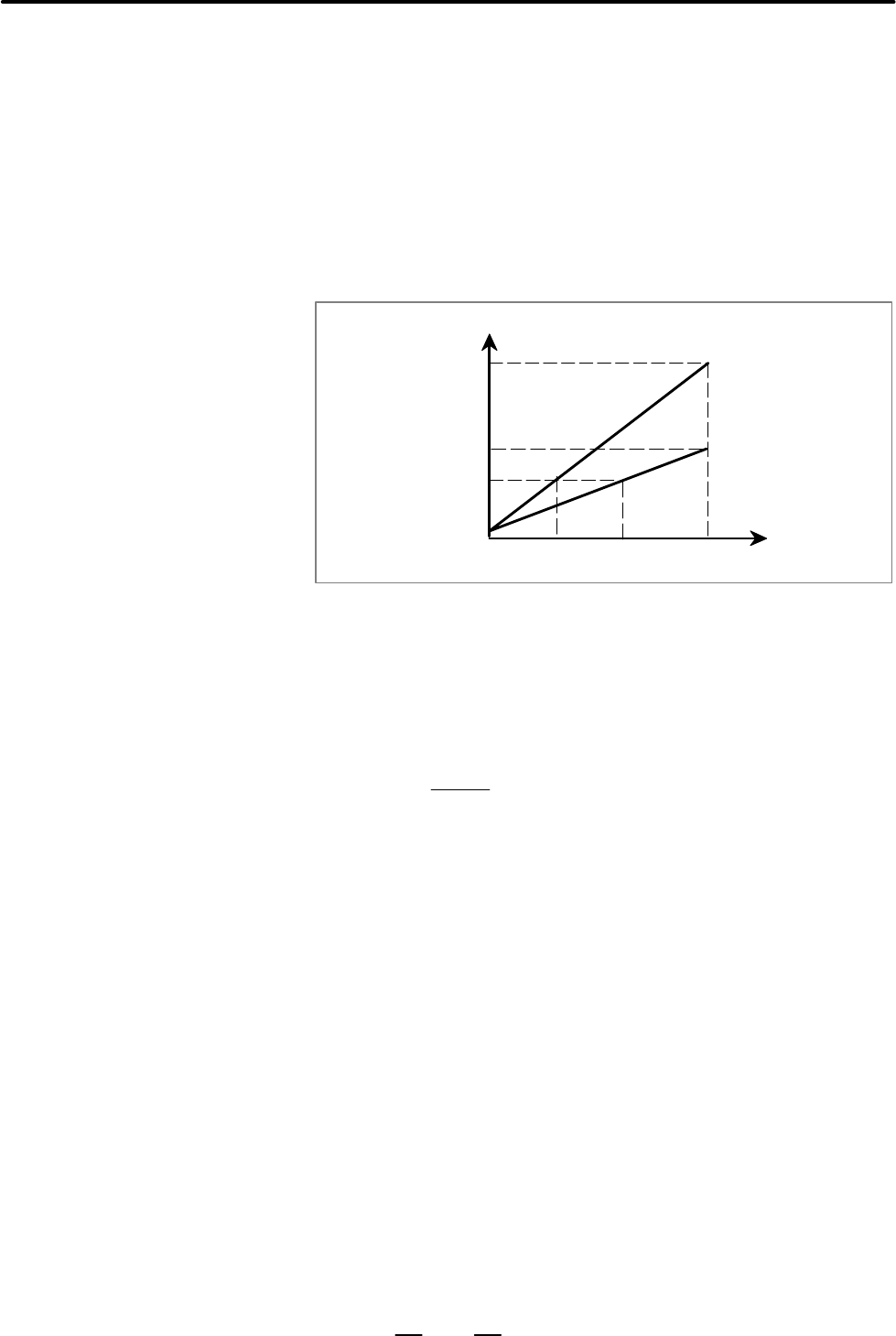

When gear

2 selected

When gear

1 selected

Volt

600rpm

1000rpm

2000rpm

When spindle speed S=600 is given, V

(for G1) or V

(for G2) is

calculated inside the CNC and output to the machine side.

: 6(V)

: 3(V)

The value of output voltage V is calculated automatically from the

following equations:

10N

R: Spindle speed at 10V output voltage

N: Spindle speed given by S5-digits

This is equivalent to the G97 mode for constant surface speed control.

See Section 9.4 for operations during the constant surface speed control

mode (G96).

In addition, parameter No. 3772 (upper limit to the spindle speed) can

specify speed clamping for all gear positions.
