6. INTERPOLATION FUNCTION

B–63173EN–1/01

244

The distance between an arc and the center of a circle that contains the arc

can be specified using the radius, R, of the circle instead of I, J, and K.

In this case, one arc is less than 180_, and the other is more than 180_ are

considered.

Specify an arc more than 180_ with a negative radius value commanded.

If Xp, Yp, and Zp are all omitted, if the end point is located at the same

position as the start point and when R is used, an arc of 0

°is programmed.

G02Rr ; (The tool does not move.)

r=50mm

End point

Start point

r=50mm

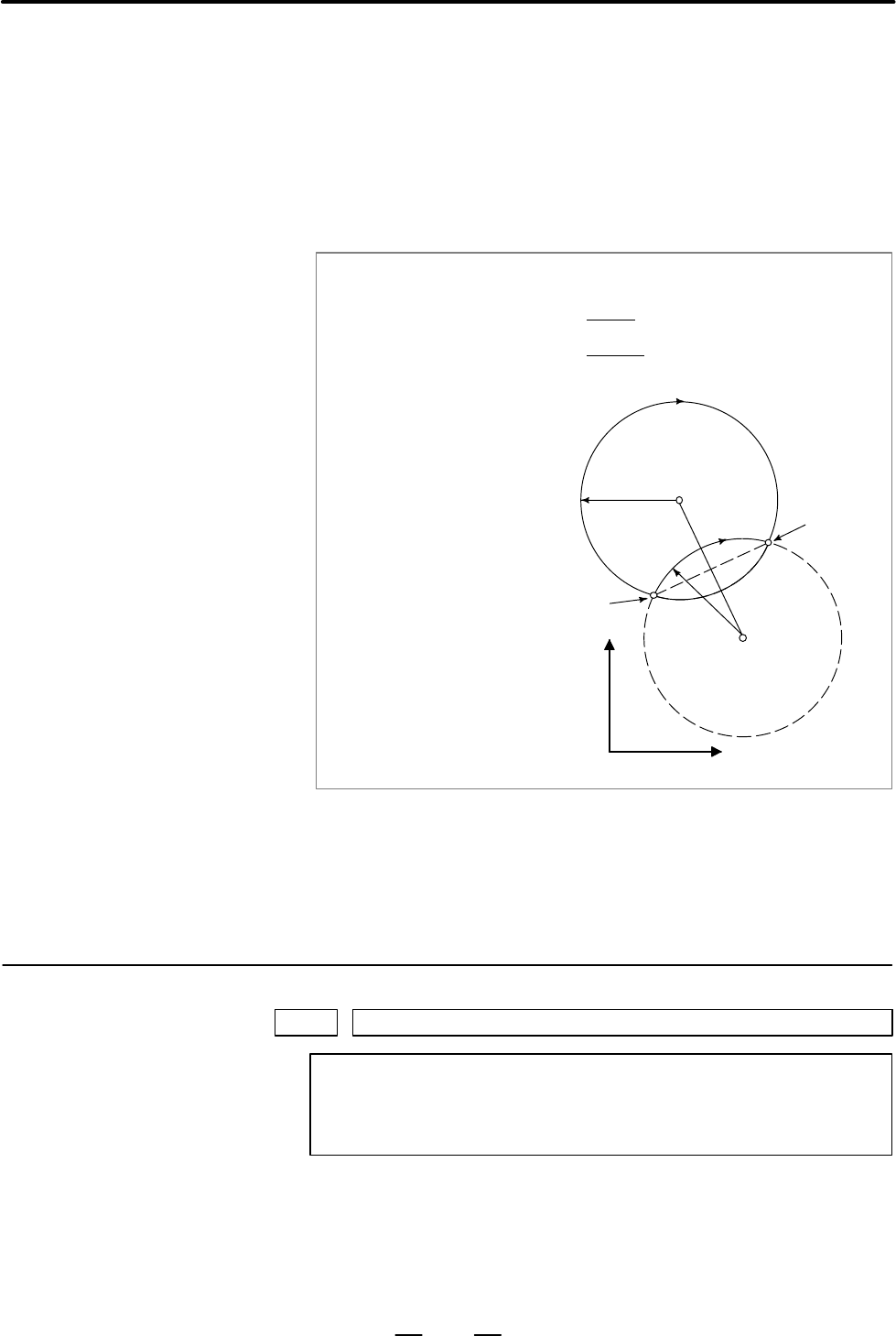

(Example)

For arc (1) (less than 180_)

G91 G02 X60.0 Y20.0 R50.0 F300.0 ;

For arc (2) (greater than 180_)

G91 G02 X60.0 Y20.0 R–50.0

F300.0 ;

(1)

(2)

The feedrate in circular interpolation is equal to the feedrate specified by

the F code, and the feedrate along the arc (the tangential feedrate of the

arc) is controlled to be the specified feedrate.

The error between the specified feedrate and the actual tool feedrate is

±2% or less.

1022 Setting of each axis in the basic coordinate system

NOTE

When this parameter is set, power must be turned off before

operation is continued.

[Data type] Byte axis

To determine the following planes used for circular interpolation, etc.,

each control axis is set to one of the basic three axes X, Y, and Z, or an

axis parallel to the X, Y, or Z axis.

Parameter
