POWER MATE i-MODEL D/H (FUNCTION) Connection manual (Function) Page 275

Connection manual (Function)

Page of 1173

/ 1173

B–63173EN–1/01

7. FEEDRATE CONTROL/ACCELERATION

AND DECELERATION CONTROL

262

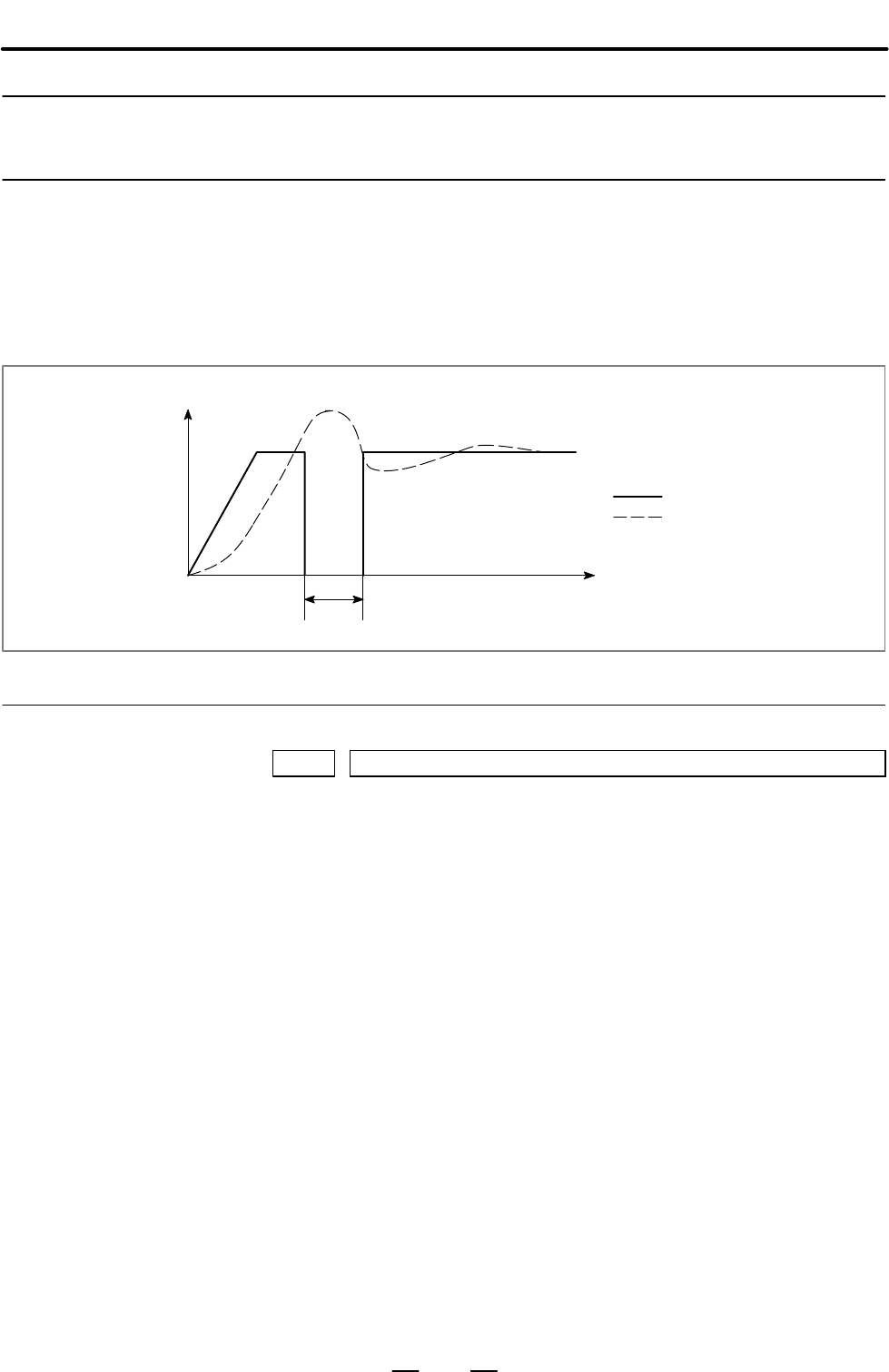

During axis motion, the feed stop function checks a position deviation

amount at all times. When the amount exceeds the “feed stop position

deviation amount” set by the parameter (No. 1832), the function suspends

pulse distribution and acceleration/deceleration control during such a

period of time, and terminates the move command for the positioning

control circuit. Thus the function can minimize an overshoot that may

occur with a large servo motor in rapid traverse acceleration operation.

Speed

Time

Feed stop

Specified speed

Actual speed

1832 Feed stop positioning deviation for each axis

[Data type] Two–word axis

[Unit of data] Detection unit

[Valid data range] 0 to 99999999

Set the feed stop positioning deviation for each axis.

If the positioning deviation exceeds the feed stop positioning deviation

during movement, pulse distribution and acceleration/deceleration

control are stopped temporarily. When the positioning deviation drops to

the feed stop positioning deviation or below, pulse distribution and

acceleration/deceleration control are resumed.

The feed stop function is used to reduce overshoot in acceleration/decel-

eration mainly by large servo motor.

Generally, set the middle value between the positioning deviation limit

during movement and the positioning deviation at rapid traverse as the

feed stop positioning deviation.

7.1.6

Feed Stop Function

General

Parameter
