Signal

Pole position detection request signal

RPREQ1-RPREQ8 <G135>

[Classification] Input signal

[Function] Request to execute the pole position detection. A number appended to a signal

represents the controlled axis number.

[Operation] CNC starts the pole position detection by turning to “1”. Once the pole position

detection starts, it continues even if this signal turns to “0”.

Pole position detection signal

RPDET1-RPDET8 <F158>

[Classification] Output signal

[Function] These signals indicate that CNC is detecting the pole position of each axis. A

number appended to a signal represents the controlled axis number.

[Output Condition] These signals turn to “1” when:

・ CNC is detecting the pole position

These signals turn to “0” when:

・ The pole position detection is completed.

・ The pole position detection stops illegally.

・ The pole position detection stops by reset.

Pole position detection completion signal

RPFIN1-RPFIN8 <F159>

[Classification] Output signal

[Function] These signals indicate that the pole position detection of each axis is completed. A

number appended to a signal represents the controlled axis number.

[Output Condition] These signals turn to “1” when:

・ The pole position detection is started by turning the pole position detection

request signal to “1”, and the pole position detection is completed.

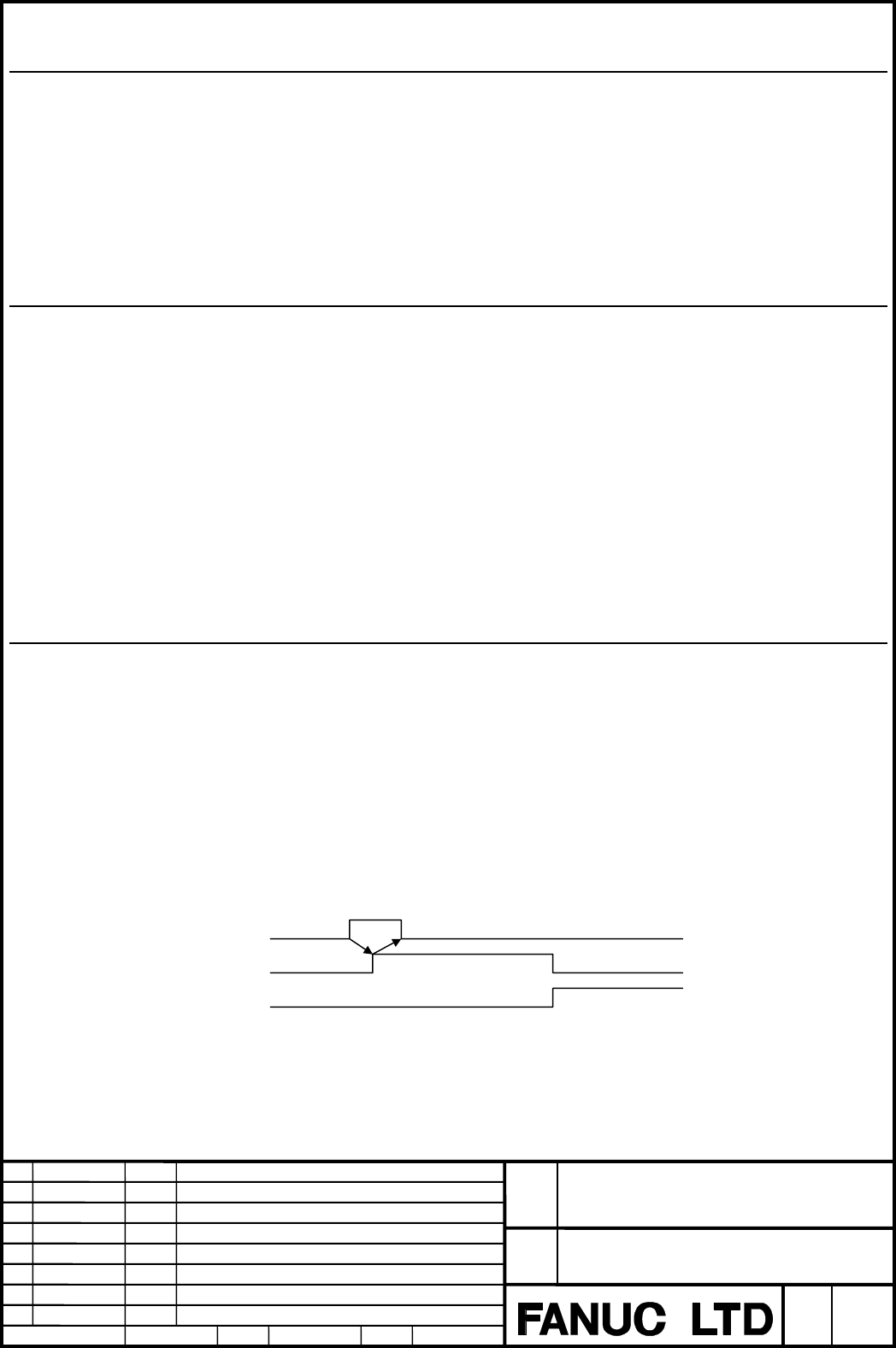

RPREQ

RPDET

RPFIN

B-63173EN-1/01-41

Edit

Apprv.

Desig.

Sheet

Title

Draw

No.

8/8

Date

Design

Descri

tion

Date

FANUC Power Mate i-MODEL D/H

Pole Position Detection Function
