4. REFERENCE POSITION ESTABLISHMENT

B–63173EN–1/01

190

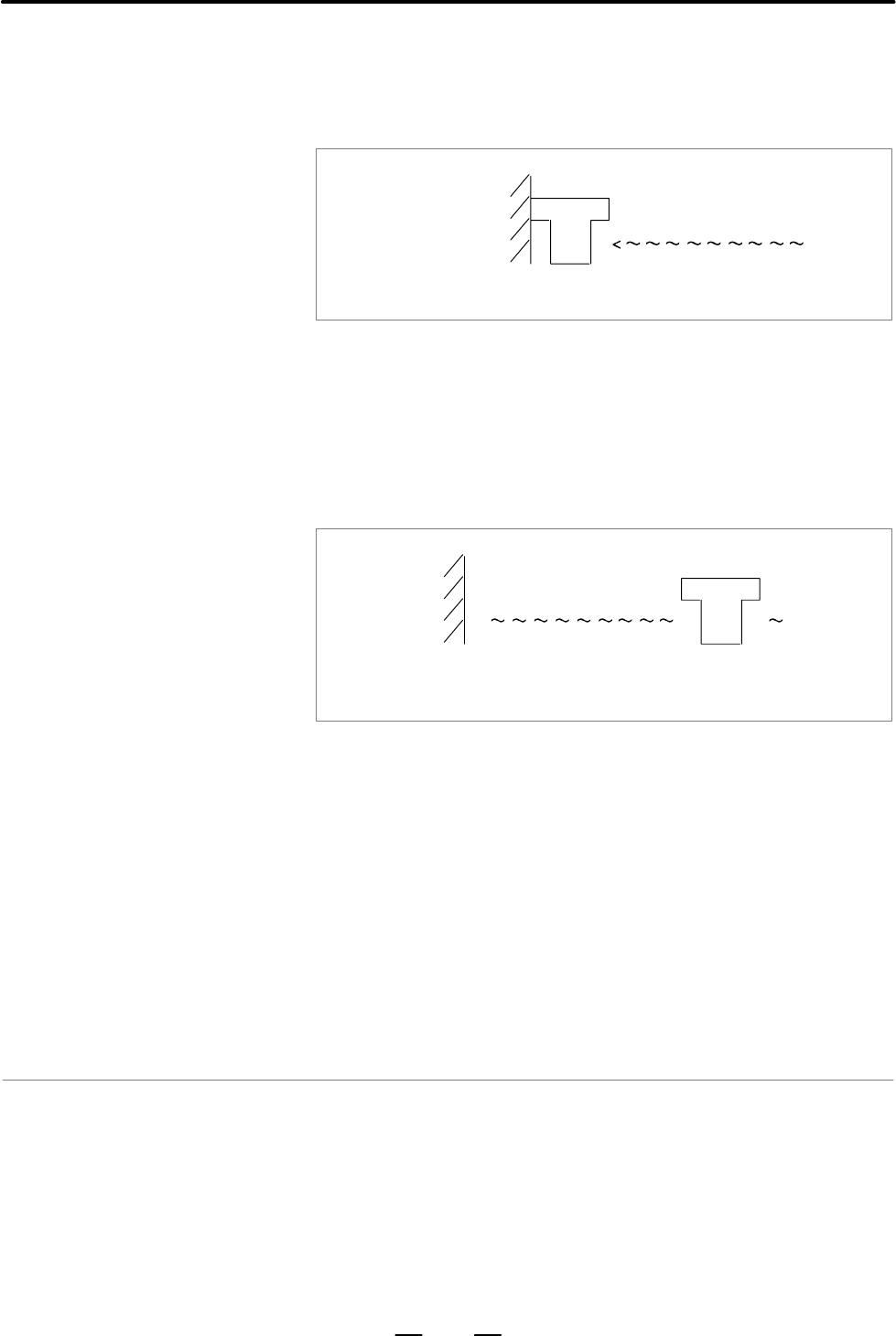

The tool moves in the direction specified with ZMIx (bit 5 of

parameter No. 1006), at the feedrate specified with parameter No.

7184, at the torque specified with parameter No. 7186 (until the

tool strikes the mechanical stopper).

Mechanical

stopper

The direction, feedrate, and torque

are all specified with parameters.

(E)After the tool strikes the mechanical stopper end on the axis, the

tool is withdrawn in the direction opposite to the butting direction,

along the axis for a parameter–set distance.

The tool is moved in the direction opposite to that specified with

ZMIx (bit 5 of parameter No. 1006), at the feedrate specified with

parameter No. 7185, for the distance specified with parameter No.

7182.

Mechanical

stopper

The direction, feedrate, distance,

and torque are all specified with pa-

rameters.

Reference position

For parameter Nos. 7183 and 7184, set the feedrates at which the

tool is moved toward the mechanical stopper with a limited torque,

considering the machine accuracy.

After the tool strikes the mechanical stopper, and the tool is

withdrawn the distance specified with parameter No. 7182, the

withdrawal point is set as the reference position on the specified

axis. Then, the reference position return end signal and reference

position establishment signal are set to 1.

After reference position return has been completed, alarm PS000

is issued. Turn the power off then back on before continuing

operation.

When the reference position has already been set (when APZx, bit 4 of

parameter No. 1815, is 1), performing butt–type reference position setting

causes the tool to be positioned to the reference position at the rapid

traverse rate without the cycle operation. Upon the completion of

positioning, the reference position return end signal is set to 1.

The timing chart for the cycle operation is shown below.

After the reference

position is set
