External

Read/Punch

larm Signal

RPALM

< F053#3 >

(Classification) Output signal

(Function) This signal indicates that an alarm condition has occurred

during input/output operation triggered by the external read or punch

start signal.

(Output condition) This signal becomes to 1, when:

・ An alarm condition occurs during input/output operation

triggered by the external read or punch start signal.

This signal becomes logical 0, when:

・The system is reset, or the external read/punch stop signal

EXSTP is input.

Read/punch

Start

Read/punch

Interrupt

Read/punch

Start

EXRD or EXWT

EXSTP

RPALM

PRBSY

BGEACT

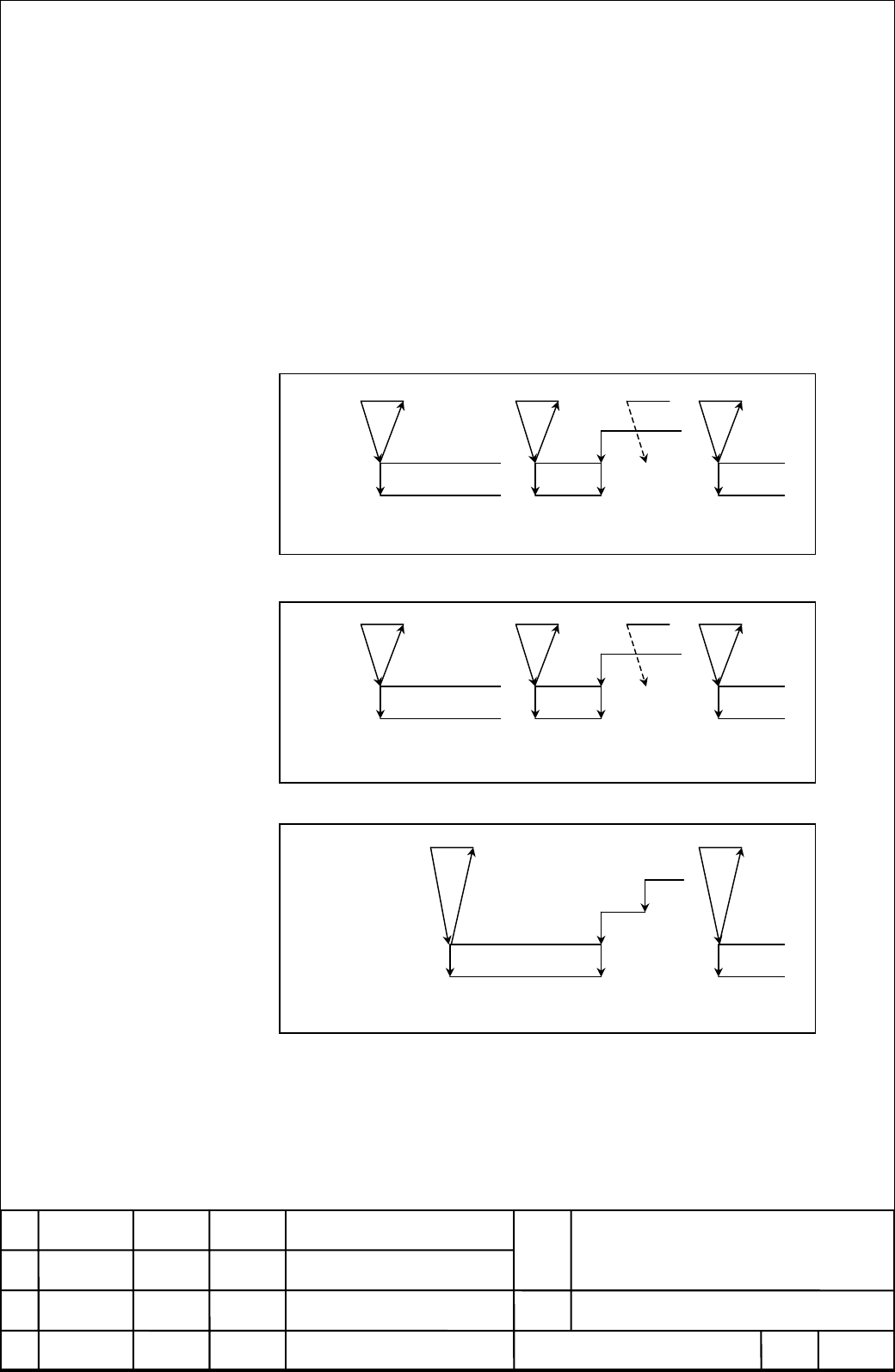

Fig. 13.2(b) Data output operation

Punch

Start

Punch

Interrupt

Punch

Start

EXWT

EXSTP

PRBSY

BGEACT

Punch

End

Punch

Start

Fig. 13.2(a) Data input operation

Read

Start

Read

Interrupt

Read

Start

EXRD

EXSTP

PRBSY

BGEACT

Read

End

Read

Start

Fig. 13.2(c) In case external read/punch alarm occurs

EDIT

DATE DISIGNE

DESCRIPTION

TITLE

DRAW

FANUC Power Mate i -MODEL D/H

Enhancement of External I/O device

control function

B-63173EN/01-32

SHEET

32/40

APPROV.

FANUC LTD
