1. Outline

When an axis is positioned within the range given by the machine coordinate,

this function turns on the DO (position switch) signal. There are two types of

position switch. One is “normal type”. And another is “judging a passing

direction type”. (Hereafter, “High speed position switch” means both “normal

type” and “judging a passing direction type” if there is no special attention.)

Normal type

When an axis is positioned within the specified range, the signal of the

built-in I/O is turned on. When an axis is positioned out of the specified

range, the signal is turned off. As the interval to watch a signal is shorter

than that of the conventional type, this function makes it possible to watch

the axis position with higher precision.

Judging a passing direction type

This type position switch considers the direction to pass by the specified

position. When an axis passes by a specified point in a specified direction,

the signal of the built-in I/O is turned on. When an axis passes by another

specified point in a specified direction, the signal of the built-in I/O is turned

off. In case the point to turn on a signal is different from the point to turn

off, this type should be applied.

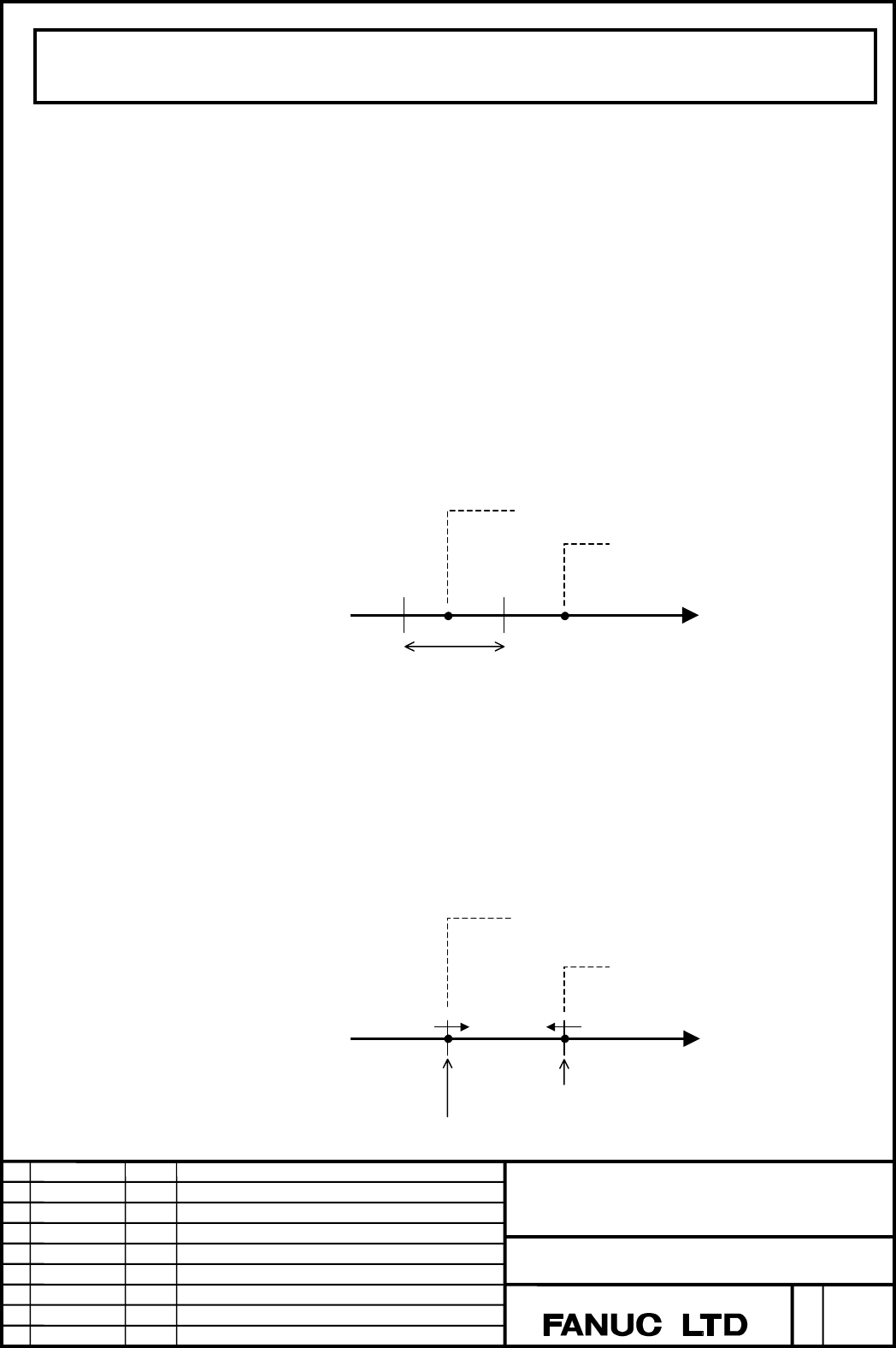

Specified range

Specified built-in DO signal = 1

Specified built-in DO signal = 0

Specify to turn on a signal in plus direction

In case passing in plus direction,

specified built-in DO signal = 1

In case passing in minus direction,

specified built-in DO signal = 0

Specify to turn off a signal in minus direction

※ The following pages are newly added as “the section 1.2.10

h S

eed Position Switch”.

Page

2 / 26

Date Sign

Contents

FANUC Power Mate i-MODEL D/H

High Speed Position Switch

specifications

B-63173EN-1/01-31

TITLE

DRAWING
