4.DESCRIPTION OF PARAMETERS B-63950EN/02
- 130 -

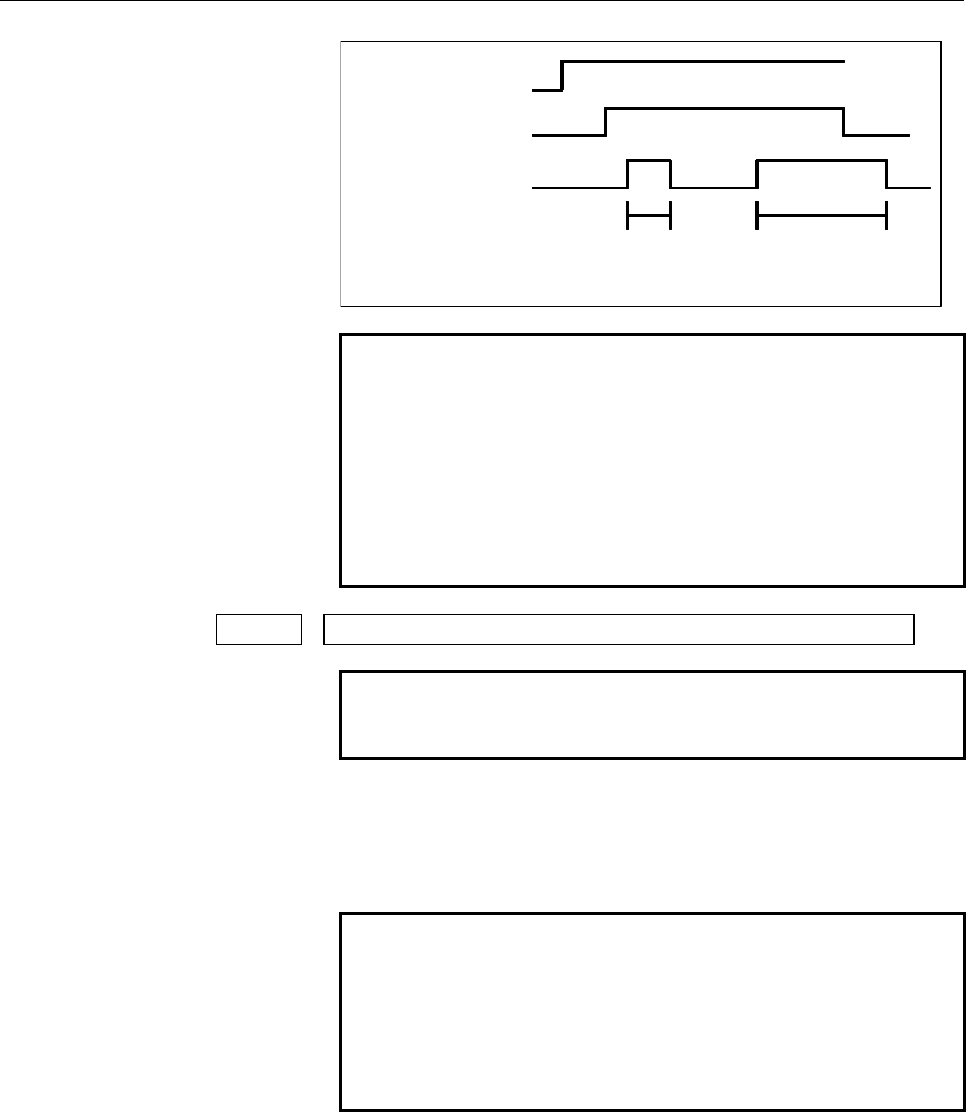

M, S, T, B code
MF, SF, TF, BF signal
FIN sigal
Ignored because shorter
than min. signal width
Valid because longer
than min. signal width
NOTE
The time is counted in units of 4 ms. If the set value
is not a multiple of four, it is raised to the next
multiple of four
Example
When 30 is set, 32 ms is assumed.
When 0 is set, 4 ms is assumed.
The time count period may change, depending on
the system.
3012 Skip signal assignment address
NOTE
When this parameter is set, the power must be
turned off before operation is continued.
[Input type] Parameter input
[Data type] Word path
[Valid data range] 0 to 727
Set an X address to which the skip signal (SKIPn) is to be assigned.
NOTE
This parameter is valid when bit 2 (XSG) of
parameter No. 3008 is set to 1.
Depending on the option configuration of the I/O
Link, the actually usable X addresses are:
X0 to X127, X200 to X327, X400 to X527, X600 to
X727
