B-63950EN/02 4.DESCRIPTION OF PARAMETERS
- 269 -
5211 Override value during rigid tapping extraction
[Input type] Parameter input
[Data type] Word path
[Unit of data] 1% or 10%
[Valid data range] 0 to 200
The parameter sets the override value during rigid tapping extraction.
NOTE
The override value is valid when DOV in parameter
No.5200 #4 is "1". When OVU (bit 3 of parameter
No.5201) is 1, the unit of set data is 10%. An
override of up to 200% can be applied to extraction.

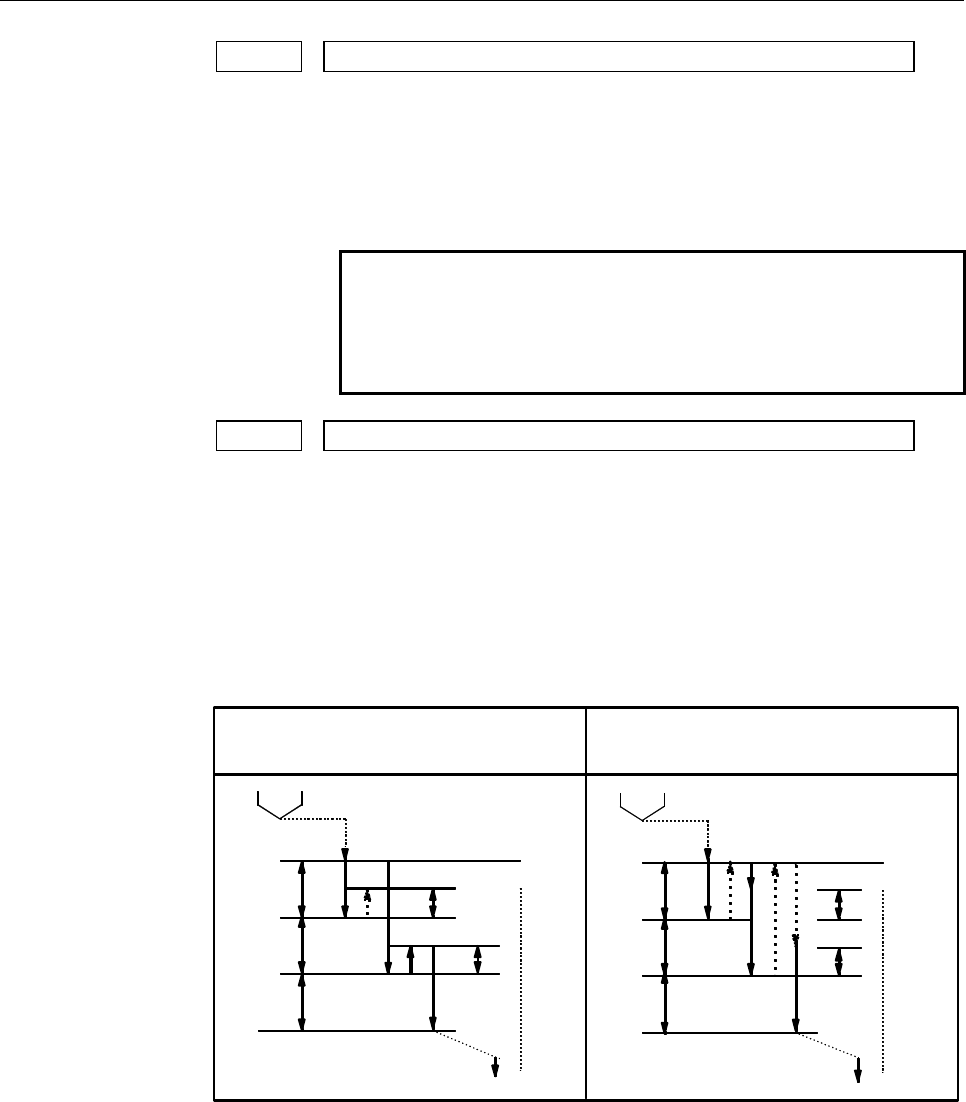

5213 Return in peck rigid tapping cycle
[Input type] Setting input
[Data type] Real path
[Unit of data] mm, inch (input unit)
[Minimum unit of data] Depend on the increment system of the drilling axis
[Valid data range] 0 or positive 9 digit of minimum unit of data (refer to the standard
parameter setting table (B) )
(When the increment system is IS-B, 0.0 to +999999.999)
This parameter sets the return or clearance in the peck tapping cycle.
When the parameter PCP (bit 5 of No.5200) is
set to 0.
When the parameter PCP (bit 5 of No.5200) is
set to 1.
q : Depth of cut
d : Return value
R point
Z point
q
: De
p
th of cut
d : Clearance value
R point
Z point
q
d
d
q
q
d
d
q
q
q
