4.DESCRIPTION OF PARAMETERS B-63950EN/02

- 540 -

19698 Angle when the reference tool axis direction is tilted (reference angle RA)

19699 Angle when the reference tool axis direction is tilted (reference angle RB)

[Input type] Parameter input

[Data type] Real path

[Unit of data] Degree

[Minimum unit of data] Depend on the increment system of the reference axis

[Valid data range] 9 digit of minimum unit of data (refer to standard parameter setting

(When the increment system is IS-B, -999999.999 to +999999.999)

When the reference tool axis direction (parameter No. 19697) is set to

1, the tool axis is tilted the RA degrees on the Z-axis from the positive

X-axis direction to positive Y-axis direction, then the tool axis is tilted

the RB degrees on the X-axis from the positive Y-axis direction to

positive Z-axis direction.

When the reference tool axis direction (parameter No. 19697) is set to

2, the tool axis is tilted the RA degrees on the X-axis from the positive

Y-axis direction to positive Z-axis direction, then the tool axis is tilted

the RB degrees on the Y-axis from the positive Z-axis direction to

positive X-axis direction.

When the reference tool axis direction (parameter No. 19697) is set to

3, the tool axis is tilted the RA degrees on the Y-axis from the positive

Z-axis direction to positive X-axis direction, then the tool axis is tilted

the RB degrees on the Z-axis from the positive X-axis direction to

positive Y-axis direction.

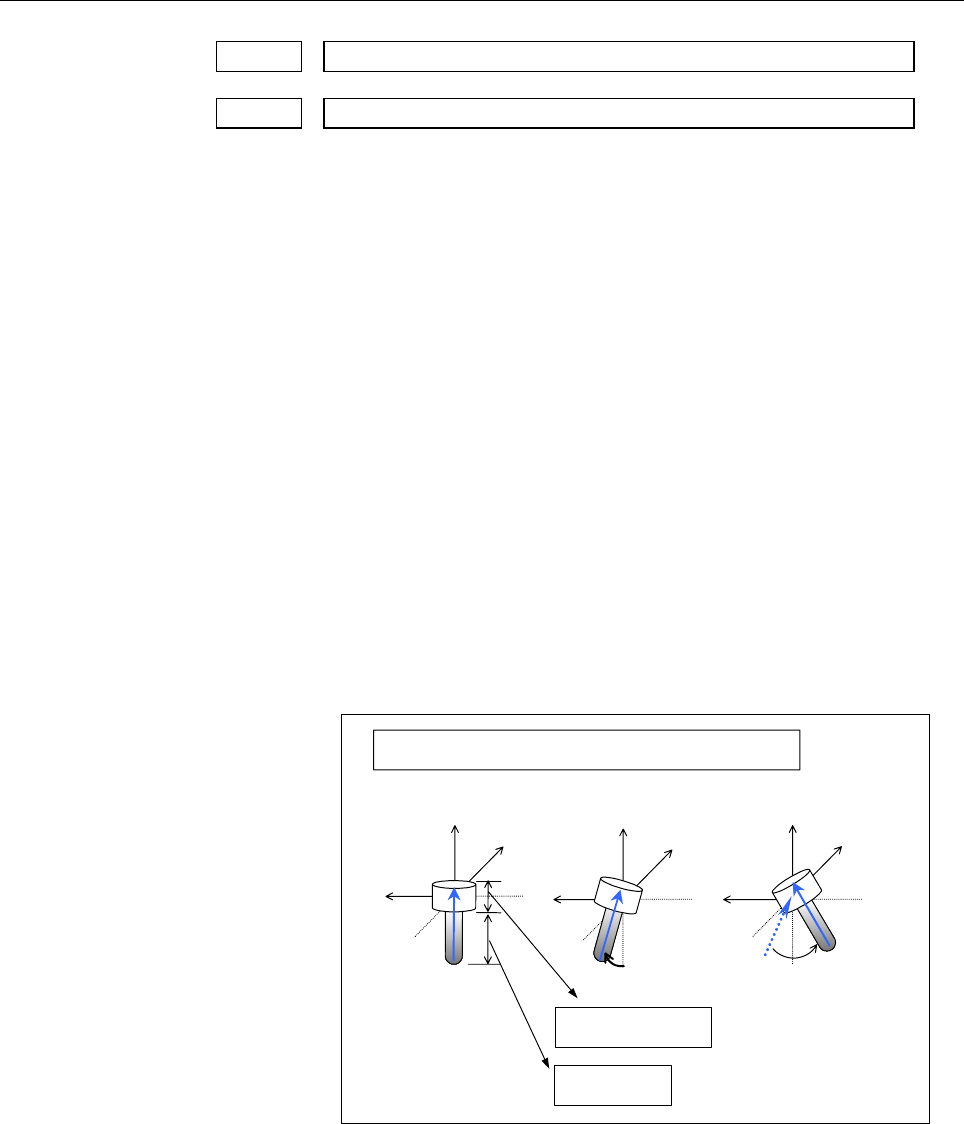

Tool axis direction when the reference tool axis direction is Z-axis

Tool holder offset

Tool length offset
