1. Fanuc
  2. 30i/300i/300is-Model A, 31i/310i/310is-Model A and A5,

30i/300i/300is-Model A, 31i/310i/310is-Model A and A5, Parameter manual Page 399

Parameter manual
B-63950EN/02 4.DESCRIPTION OF PARAMETERS
- 387 -
4.51 PARAMETERS OF INTERFERENCE CHECK BETWEEN
PATHS
#7 #6 #5 #4 #3 #2 #1 #0
IPF ZCL IFE IFM IT0 TY1 TYO
8140
[Input type] Parameter input
[Data type] Bit

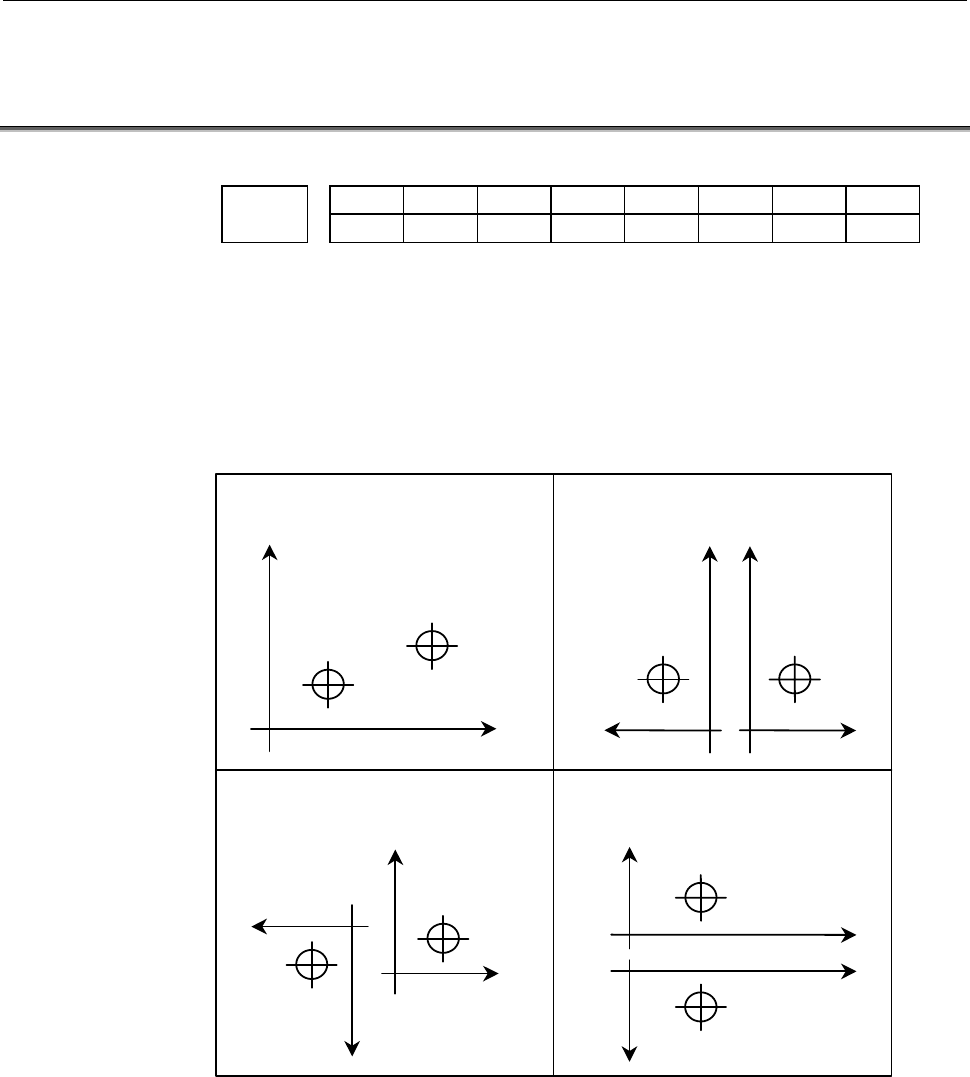

# 0 TY0 This parameter sets the coordinate system relationship between two
tool posts based on the tool post of path 1.
# 1 TY1 This parameter is used for checking the interference between two
paths when bit 7 (IPF) of parameter No. 8140 is set to 0.
Tool post 2
Tool post 1
+X
+Z
Tool post 2
Tool post 1
+X
+Z
Tool post 2
Tool post 1
+X
+Z
+X
+Z
Tool post 2
Tool post 1
+X
+Z
+X
+Z
+Z
+X
(1) When TY1=0 and TY0=0 (2) When TY1=0 and TY0=1
(3) When TY1=1 and TY0=0 (4) When TY1=1 and TY0=1
# 2 IT0 When offset number 0 is specified by the T code,
0: Checking interference between paths is stopped until an offset
number other than 0 is specified by the next T code.
1: Checking interference between paths is continued according to
the previously specified offset number.
# 3 IFM In manual mode, a interference check between paths is:
0: Not performed.
1: Performed.
