FANUC PMC-MODEL SD7

Programming Manual

01 01.11.26

Hanaoka

New

A-78550E

EDIT DATE DESIG.

DESCRIPTION

234/

316

TITLE

DRAW.NO.

5.3.2.1.5 Operations

(1) Operations by the soft keys

[SEARCH] Search of address

This searches the bit address or the word address to display

on the screen.

[ON] Signal On

The signal on the cursor is sets into on.

[OFF] Signal Off

The signal on the cursor is sets into off.

[STATUS] Return to the signal status screen

This returns the signal status screen.

[OVRSET] Setting or Override signal

This sets the %I/%Q address on the cursor into the override

signal.

As for the override signal, the status of the override signal is

set the status of the signal just before pressing the soft key

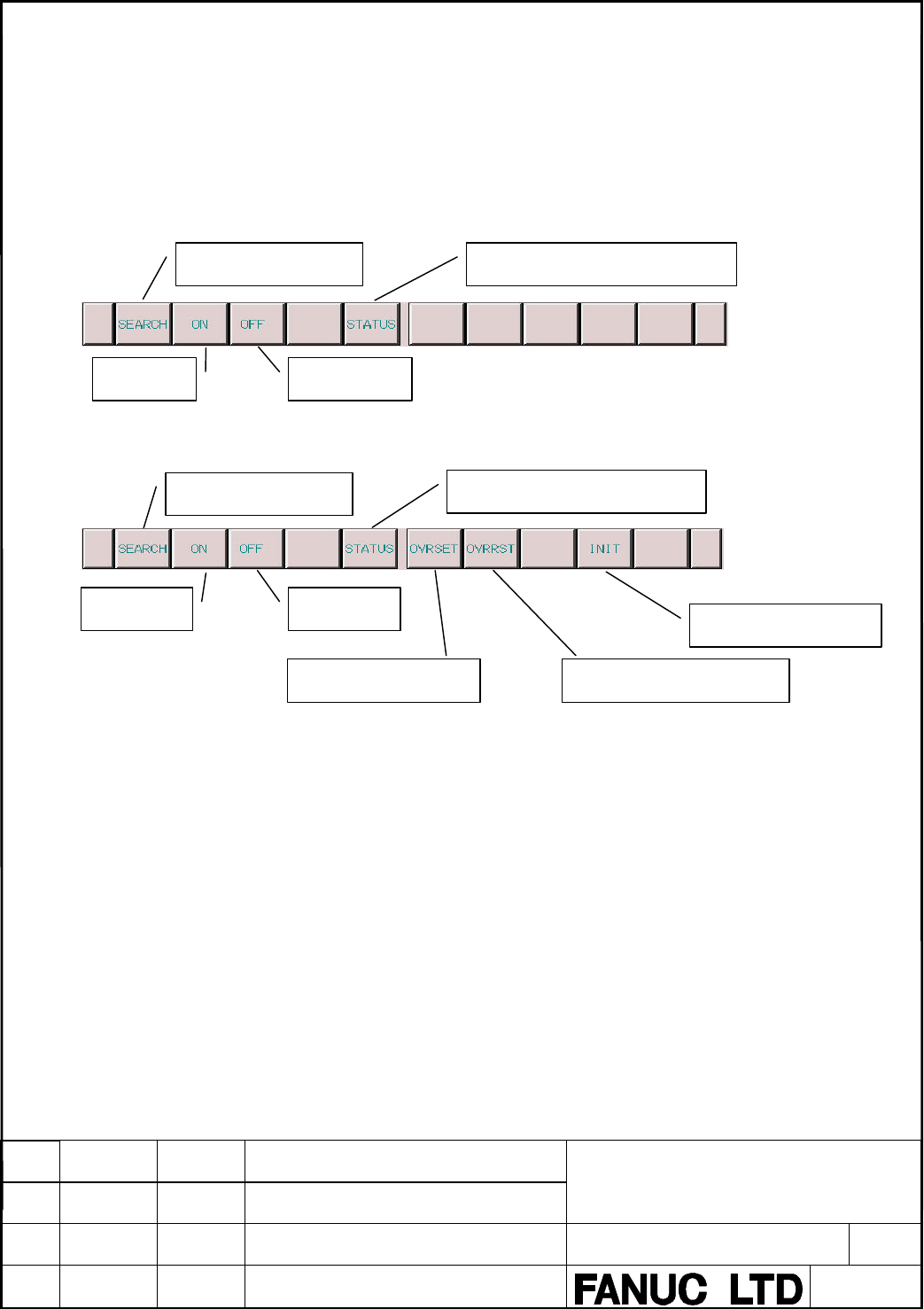

The soft-keys in this screen

Search of address

Forcing Mode

Signal On Signal Off

Go to Signal Status Screen

Override Mode

Search of address

Signal On Signal Off

Go to Signal Status Screen

Set of Override signal Release of Override signal

Release of All Override
