FANUC PMC-MODEL SD7

Programming Manual

01 01.11.26

Hanaoka

New

A-78550E

EDIT DATE DESIG.

DESCRIPTION

284/

316

TITLE

DRAW.NO.

5.6 Writing, Reading, and Verifying the Sequence Program and

PMC Parameter Data (I/O)

5.6.1 I/O Screen

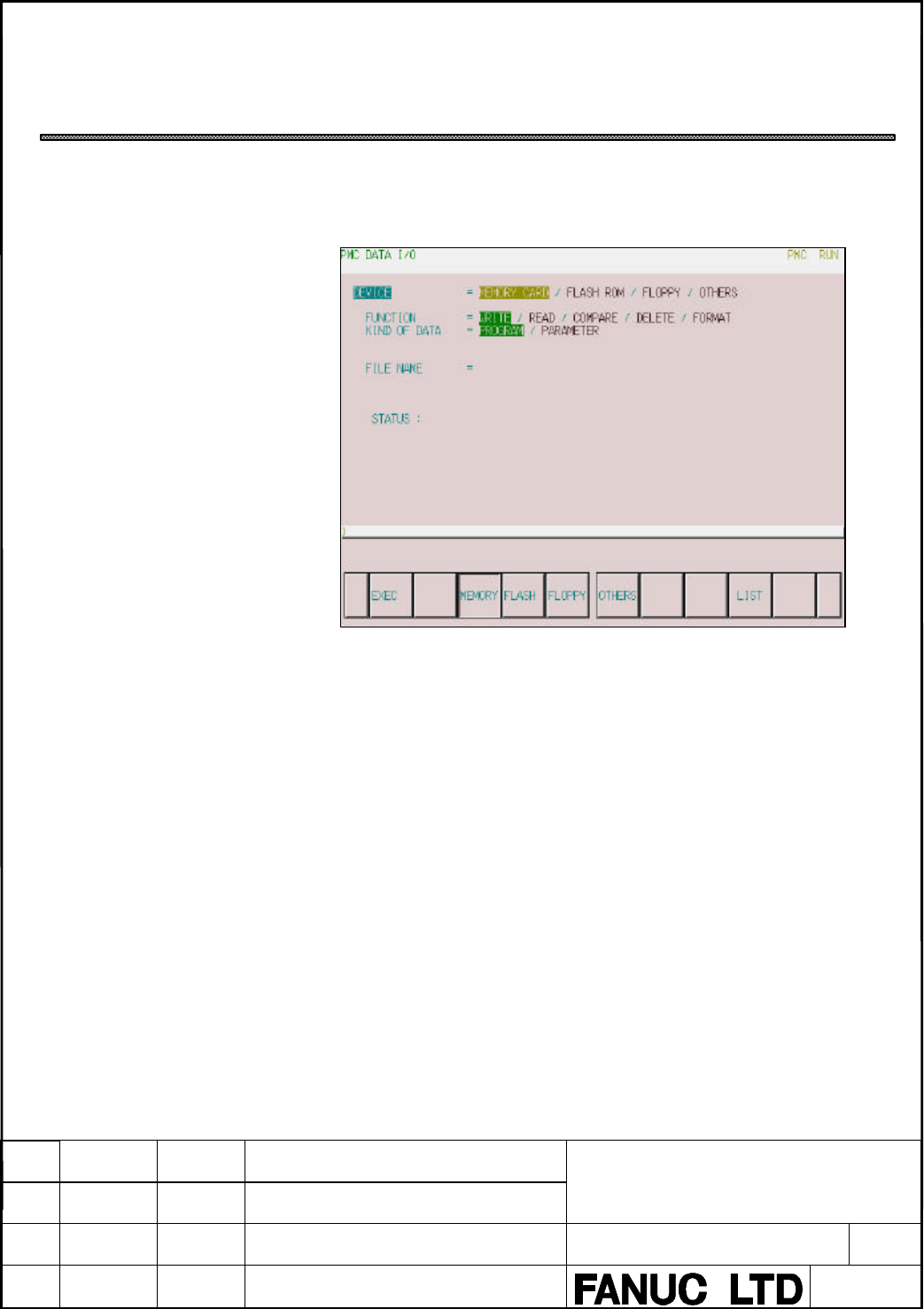

When the [I/O] soft key on the PMC main menu is pressed, the following

screen appears.

On this screen, sequence programs and PMC parameters can be written to the

specified device, read from the device, and compared. The question selection

cursor, which moves vertically from one question to another, is displayed, as is

the option selection cursor, which moves horizontally from one option to

another. The displayed soft keys differ depending on the position of the

question selection cursor.

The following types of devices can be used for input/output. The desired

device type can be selected by positioning the question selection cursor to

“DEVIDE” and either moving the option selection cursor to that type or

selecting the soft key corresponding the type.

MEMORY CARD Data can be output to and input from a memory card.

FLASH ROM Data can be output to and input from frash ROM.

FLOPPY Data can be output to and input from handy files or

floppy cassettes.

OTHERS Data can be output to and input from other

input/output devices.
