Fanuc PMC-Model SD7 Programming Manual Additional Manual Page 261

Additional Manual

Page of 317

/ 317

FANUC PMC-MODEL SD7

Programming Manual

01 01.11.26

Hanaoka

New

A-78550E

EDIT DATE DESIG.

DESCRIPTION

260/

316

TITLE

DRAW.NO.

5.4.3.2 Data Register Table (DATA [%R])

DATA REGISTER TABLE consists of 2 screens, that is, Data Register

Table Controlling Data screen and Data Register Table screen.

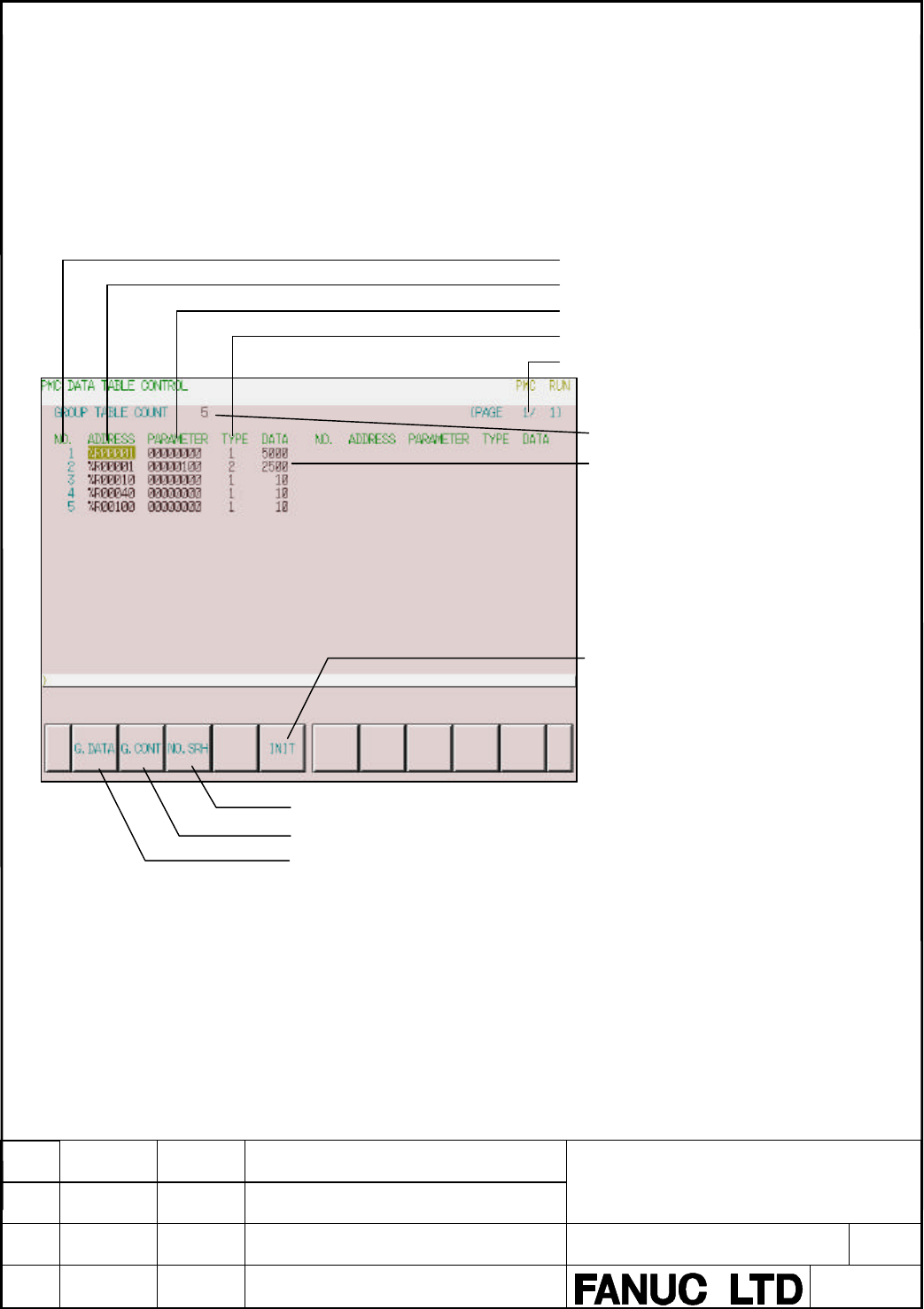

(1) Data Register Table Controlling Data Screen

Data Register Table Controlling Data Screen for controlling Data Register

Table is displayed by pressing the soft key [DATA].

The number of group of Data Table

The data numbers of each Data Table

You can initialize the Data Table setting

data. The initial data is as follows.

Group No.

The top address of Data Table

Table Parameters (Note)

Data type (0:1byte, 1:2bytes, 2:4bytes) (Note)

Page No. (Change pages with the page keys)

Press this key after typing the group No, and the cursor is moved to the group.

Press this key after typing the number of group, and the Group Table Count is set.

You can change the screen to Data Table.
