FANUC PMC-MODEL SD7

Programming Manual

01 01.11.26

Hanaoka

New

A-78550E

EDIT DATE DESIG.

DESCRIPTION

241/

316

TITLE

DRAW.NO.

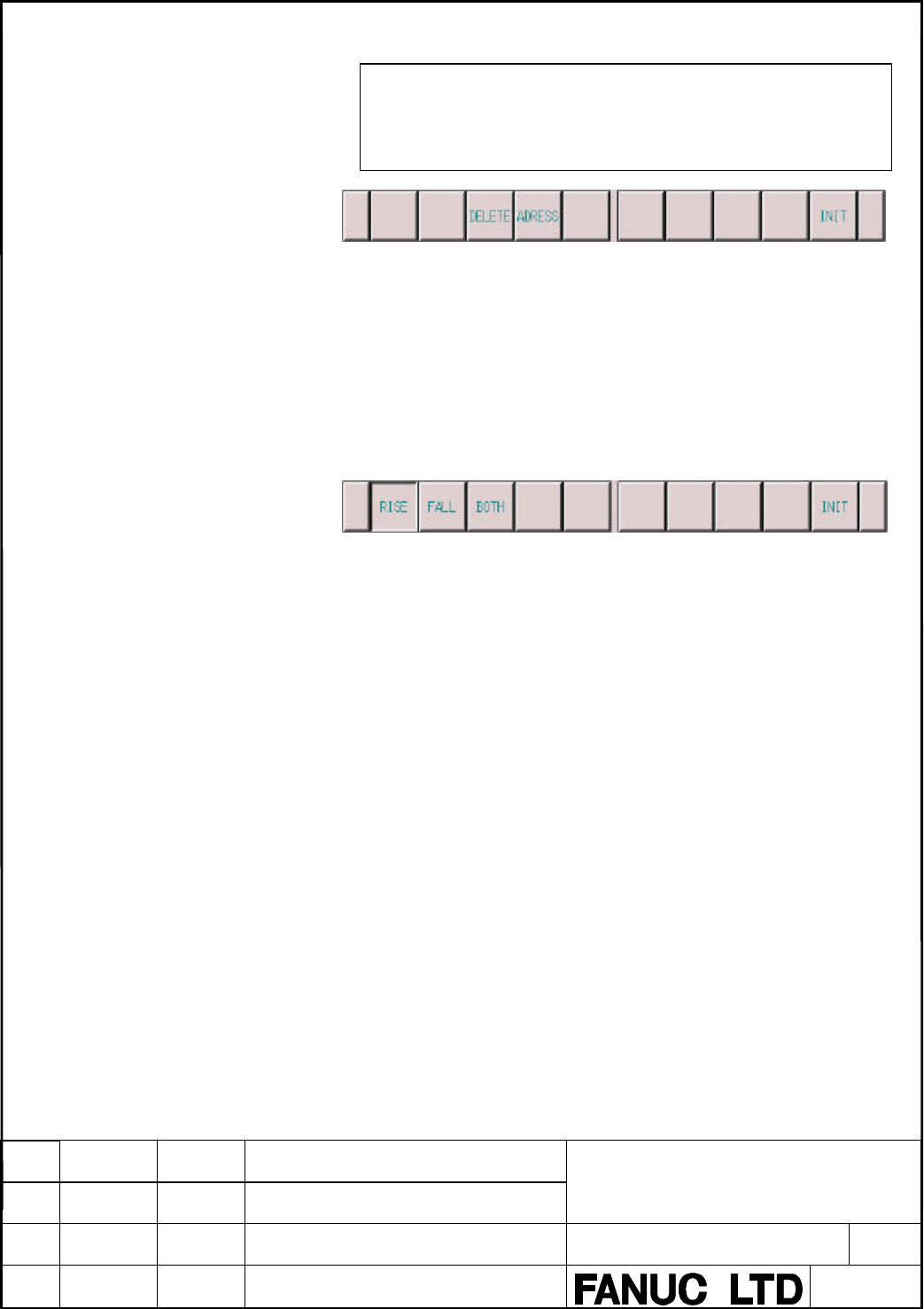

ADRESS Changes the symbol name display to the address display

and changes the soft key to [SYMBOL].

- STOP CONDITION TRIGGER MODE

When “TRIGGER” is set on “STOP CONDITION”, this parameter is

enabled. Input trigger mode when the trace is stopped. Select one by cursor

key or soft key.

Soft keys display when the cursor is put on “STOP CONDITION

TRIGGER MODE”.

Explanation:

RISE Stops the tracing automatically by rising up of the trigger

signal.

FALL Stops the tracing automatically by falling down of the trigger

signal.

BOTH Stops the tracing automatically by rising up or falling down of

the trigger signal.

- STOP CONDITION TRIGGER POSITION

When “TRIGGER” is set on “STOP CONDITION”, this parameter is

enabled. Input the ratio of the sampling time or number which specifies the

position where specified trigger condition is on.

If you would like to examine the transitions of the signal before the trigger

condition, you should set a big value in this parameter. If you would like to

examine the transitions of the signal after the trigger condition, you should

set a small value in this parameter.

Example: The case that sampling time is 10 second and trigger position is

set as “10%”.

NOTE

In the string of the symbol that can be displayed, there is a limitation

of maximum 16 characters.

The SYMBOL name is displayed only in case of the bit symbol.
