Fanuc PMC-Model SD7 Programming Manual Additional Manual Page 263

Additional Manual

Page of 317

/ 317

FANUC PMC-MODEL SD7

Programming Manual

01 01.11.26

Hanaoka

New

A-78550E

EDIT DATE DESIG.

DESCRIPTION

262/

316

TITLE

DRAW.NO.

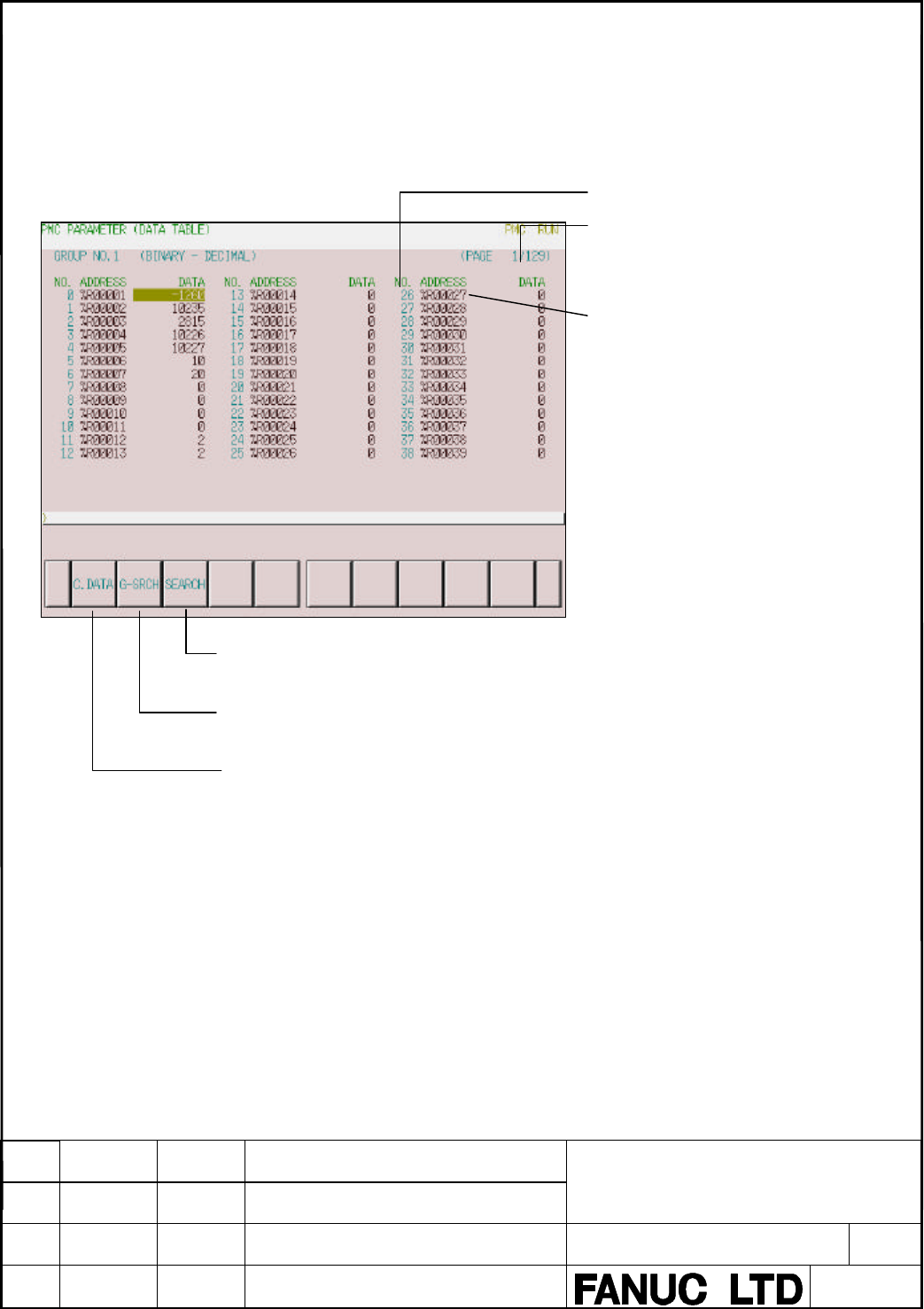

(2) Data Register Table Screen

If the Data Register Table Controlling Data is set, Data Register Table

Screen is displayed by pressing the soft key [G.DATA].

Group No.

Page No.

(Change pages with the page keys)

The address used by sequence program

Press this key after typing the address (ex. “%R8” %R

can be omitted), and the cursor is

moved to the address in the current group.

If you search the Data Table in the other group, press this key after typing the group No.,

and the cursor is moved to the top of the address in the specified group.

You can change the screen to Data Table Controlling Data.
