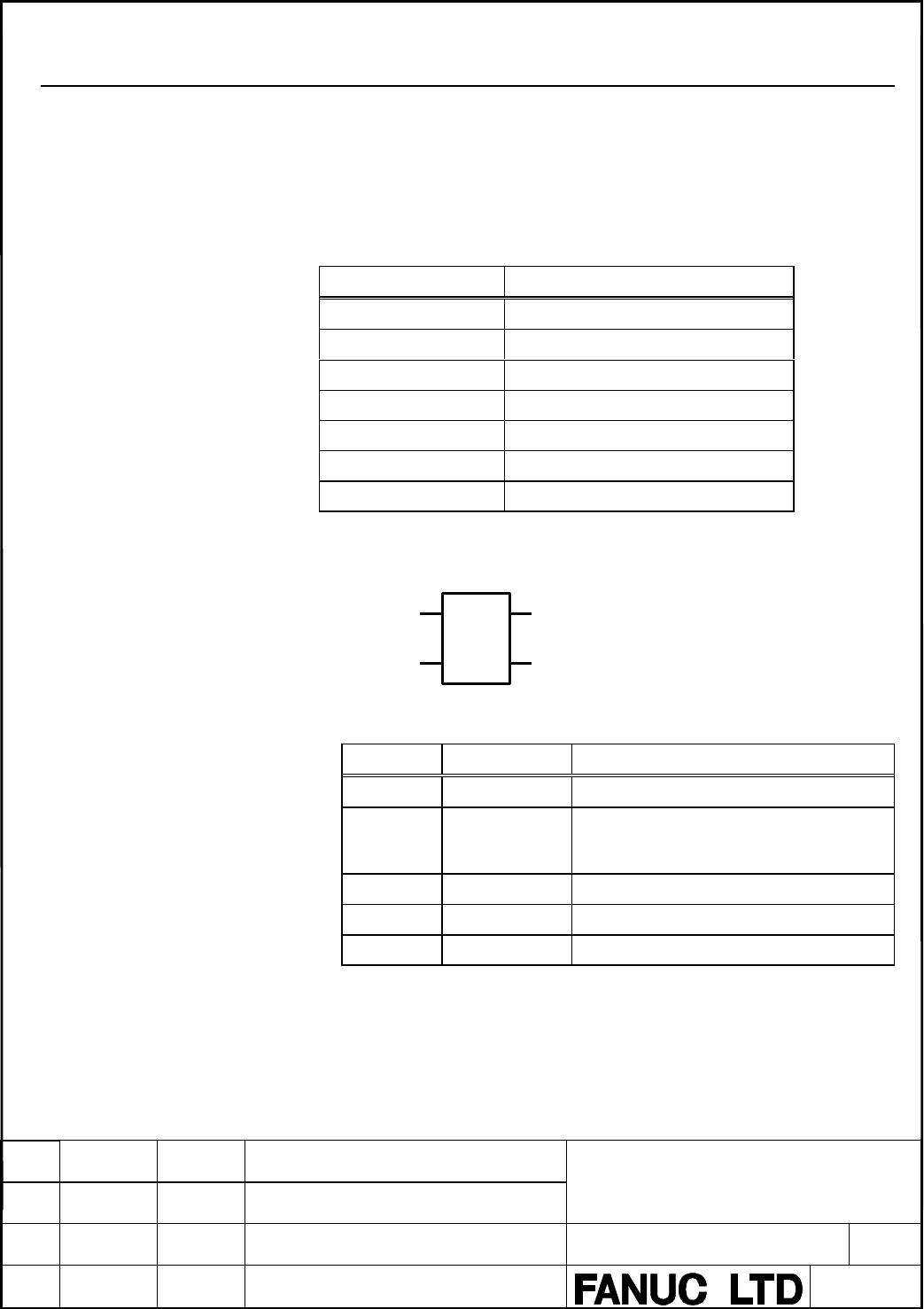

3.6.1 MOVE_(type)

Function

When EN is set to ON and is receiving the power flow, MOVE copies

the data in input parameter IN to output parameter Q.

MOVE_(type) instructions

Name Explanation

MOVE_BOOL Data movement of BOOL data.

MOVE_BYTE Data movement of BYTE data

MOVE_WORD Data movement of WORD data

MOVE_DWORD Data movement of DWORD data

MOVE_INT Data movement of INT data

MOVE_UINT Data movement of UINT data

MOVE_DINT Data movement of DINT data

Format

MOVE

(type)

IN Q

(EN) (ENO)

??????? ???????

LEN

Parameters

Parameter Data type Meaning

EN BOOL Execution

LEN Constant The length of IN; the number of data to move.

If IN is a constant and Q is BOOL, then

1<=LEN<=16; otherwise, 1<=LEN<=256

IN ANY Input data

ENO BOOL Returns the value of EN

Q ANY Destination address
