FANUC PMC-MODEL SD7

Programming Manual

01 01.11.26

Hanaoka

New

A-78550E

EDIT DATE DESIG.

DESCRIPTION

65/

316

TITLE

DRAW.NO.

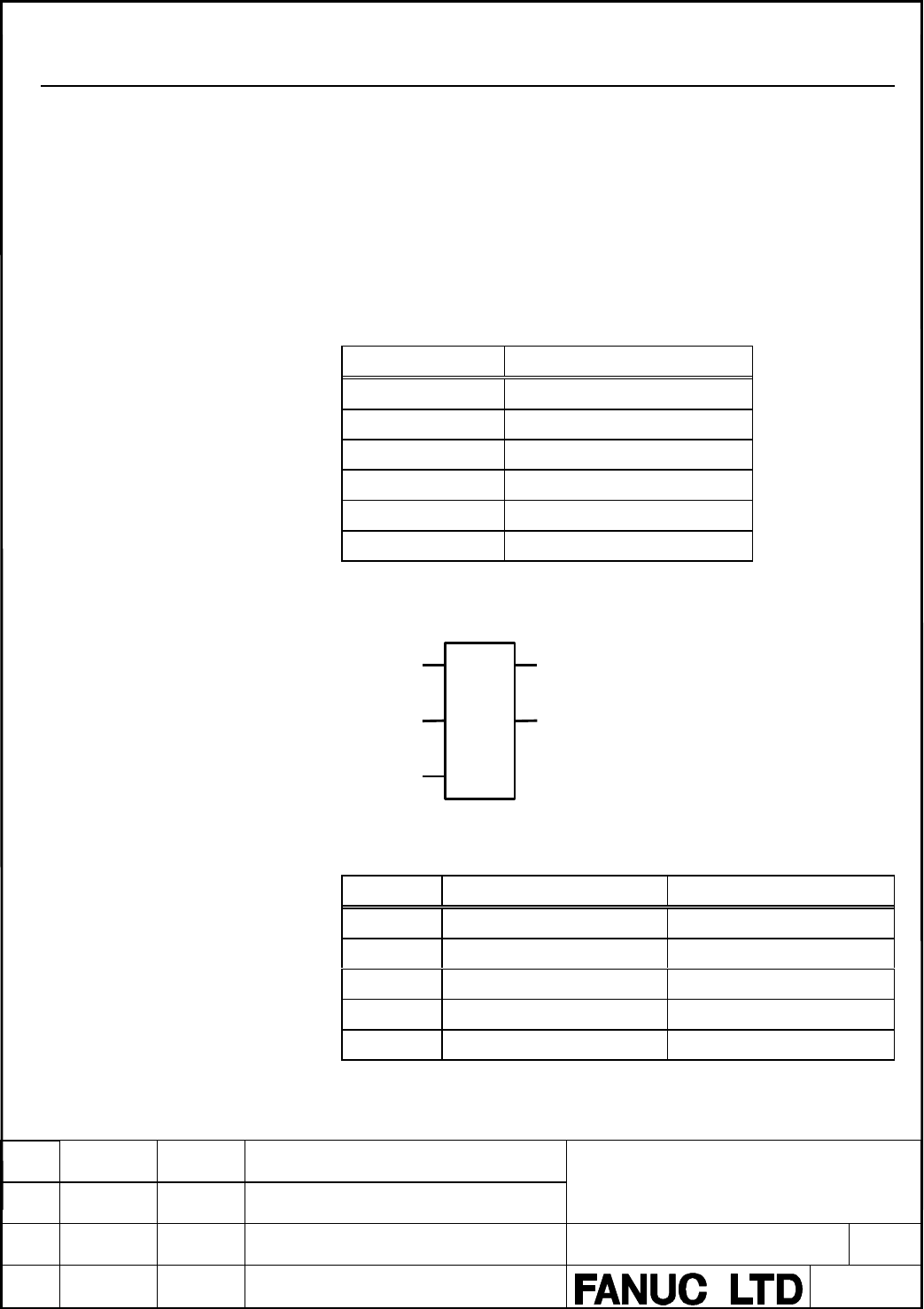

3.5.1 AND_(type)/OR_(type)

Function

When EN is set to ON and is receiving the power flow, AND/OR

performs a logical AND/logical OR operation on each bit of the

corresponding bit strings in input parameters IN1 and IN2. The result

is output to the corresponding bit of output parameter Q.

IN1, IN2 and Q must all be of the same data type.

AND_(type)/OR_(type) instructions

Name Explanation

AND_BYTE Logical AND of BYTE data

AND_WORD Logical AND of WORD data

AND_DWORD Logical AND of DWORD data

OR_BYTE Logical OR of BYTE data

OR_WORD Logical OR of WORD data

OR_DWORD Logical OR of DWORD data

Format

AND

(type)

IN1 Q

IN2

???????

(EN) (ENO)

Parameters

Parameter Data type Meaning

EN BOOL Execution of logical operation

IN1 BYTE, WORD, DWORD Input data 1

IN2 BYTE, WORD, DWORD Input data 2

ENO BOOL Returns the value of EN

Q BYTE, WORD, DWORD Result of operation
