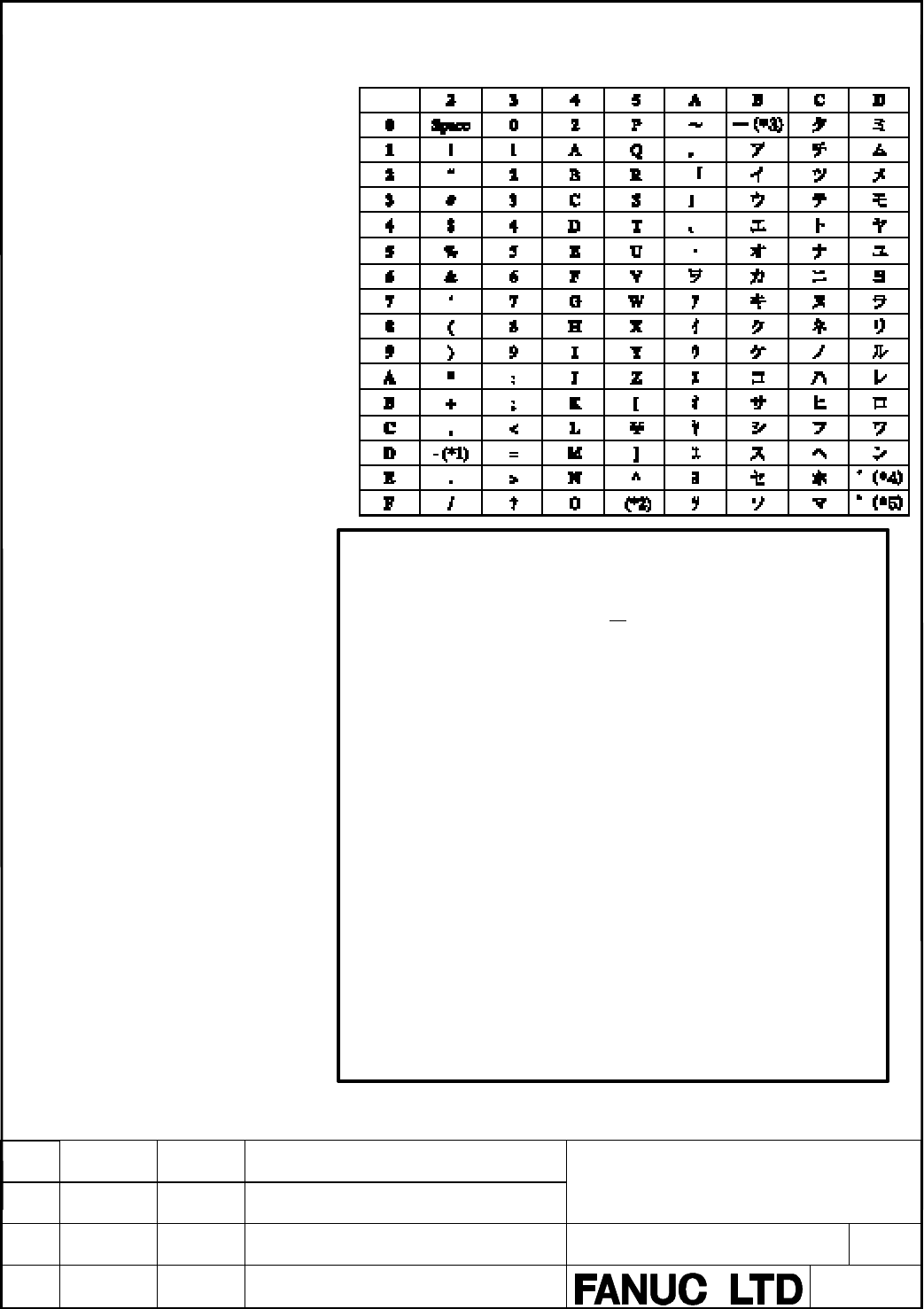

Character code table
NOTES
1 To define character @, input @40...@.
@
2 To define a line feed of a screen display message, input @0A@ at
the end of data.
3 For numeric code input, code @ requires 1 byte. When a character,
for example, a space is input using its numeric code (20), 1 byte for
"2" and 1 byte for "0", a total of 2 bytes, are required.
4 Control codes are assigned for characters as follows:
02: 2-byte code (kanji and hiragana characters)
01: 1-byte code (alphanumeric and half-size kana characters)
Do not specify 02 or 01 between @02 and @01, as shown below. If
so, the data may not be displayed normally.
@02...02...01@, @02...01...01@
5 No variable display specification is allowed between @ and @ or
between @02 and 01@.
