FANUC PMC-MODEL SD7

Programming Manual

01 01.11.26

Hanaoka

New

A-78550E

EDIT DATE DESIG.

DESCRIPTION

264/

316

TITLE

DRAW.NO.

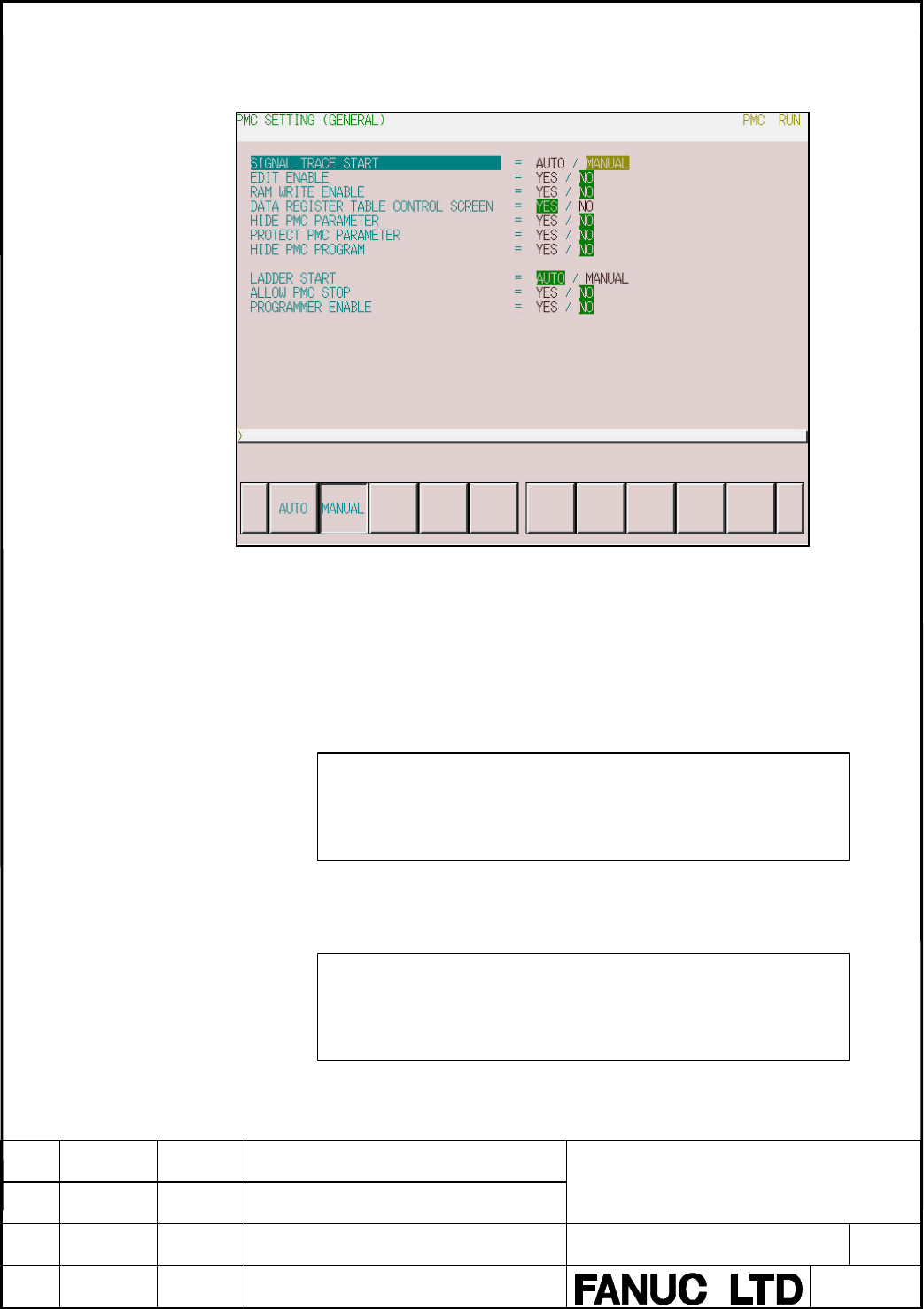

5.4.4.1 Screen for displaying General settings (GENERAL)

Pushing the [GENERAL] soft key displays the following screen.

- SIGNAL TRACE START (%SK54)

MANUAL (0): Executes the tracing with [EXEC] softkey.

AUTO (1): Starts the tracing automatically after the power turns on.

- EDIT ENABLE (%SK15)

NO (0): Prevents editing of the sequence program.

YES (1): Allows editing of the sequence program.

- RAM WRITE ENABLE (%SK5)

NO (0): Prevents forcing function.

YES (1): Allows forcing function.

(%SK54)

(%SK15)

(%SK5)

(%SK8)

(%SK23)

(%SK24)

(%SK1)

(%SK3)

(%SK19)

(%SK2)

NOTE

This setting effects some PMC functions.

Please refer to "5.4.4.3 Programmer protection function"

NOTE

This setting effects some PMC functions.

Please refer to "5.4.4.3 Programmer protection function"
