4. DESCRIPTION OF PARAMETERS
B–63610EN/01
156
Example 1) For linear axis
D Machine stroke: –400 mm to + 800 mm
D Interval between the pitch error compensation positions: 50 mm
D No.of the compensation position of the reference position: 40
If the above is specified, the No.of the farthest compensation point in the
negative direction is as follows:
No.of the compensation position of the reference position – (Machine
stroke length in the negative direction/Interval between the
compensation points) + 1
= 40 – 400/50 + 1
=33
No.of the farthest compensation position in the positive direction is as
follows:
No.of the compensation position of the reference position + (Machine
stroke length in the positive direction/Interval between the
compensation positions)
= 40 + 800/50
= 56

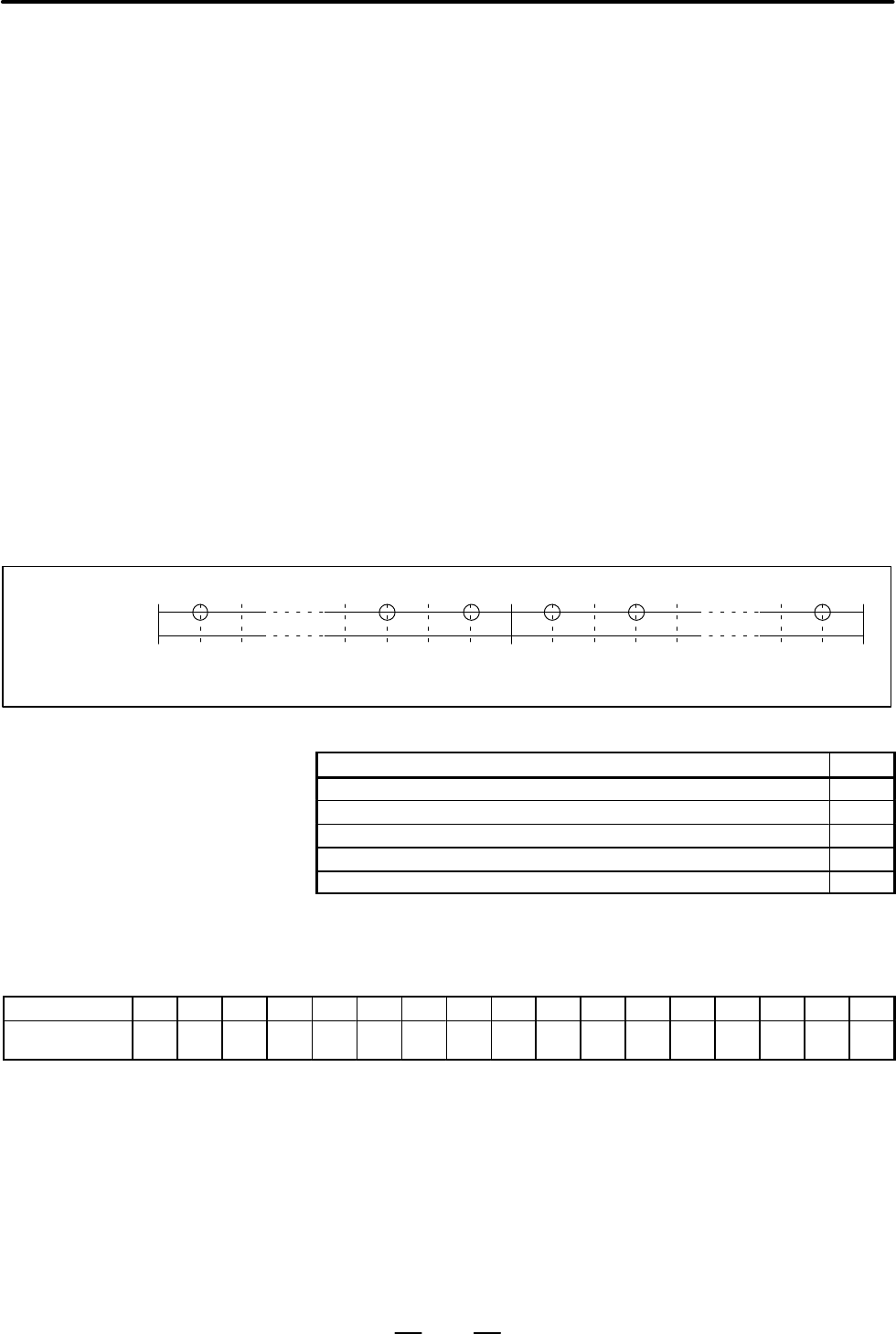

The correspondence between the machine coordinate and the
compensation position No.is as follows:
Machine
coordinate (mm)
Compensation
point No.
–400 –350 –100 –50 0 50 100 750 800
33 39 40 41 42 56
Compensation values are output at the positions indicated by f.
Therefore, set the parameters as follows:
Parameter
Setting
No. 3620: Compensation point number for reference position 40
No. 3621: Compensation point number for farthest point in the negative direction 33
No. 3622: Compensation point number for farthest point in the positive direction 56
No. 3623: Compensation magnification 1
No. 3624: Compensation point interval 50000
The compensation value is output at the compensationn position
No.corresponding to each section between the coordinates.
The following is an example of the compensation values.
No. 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49
Compensation
values
+2 +1 +1 –2 0 –1 0 –1 +2 +1 0 –1 –1 –2 0 +1 +2
