4. DESCRIPTION OF PARAMETERS

B–63610EN/01

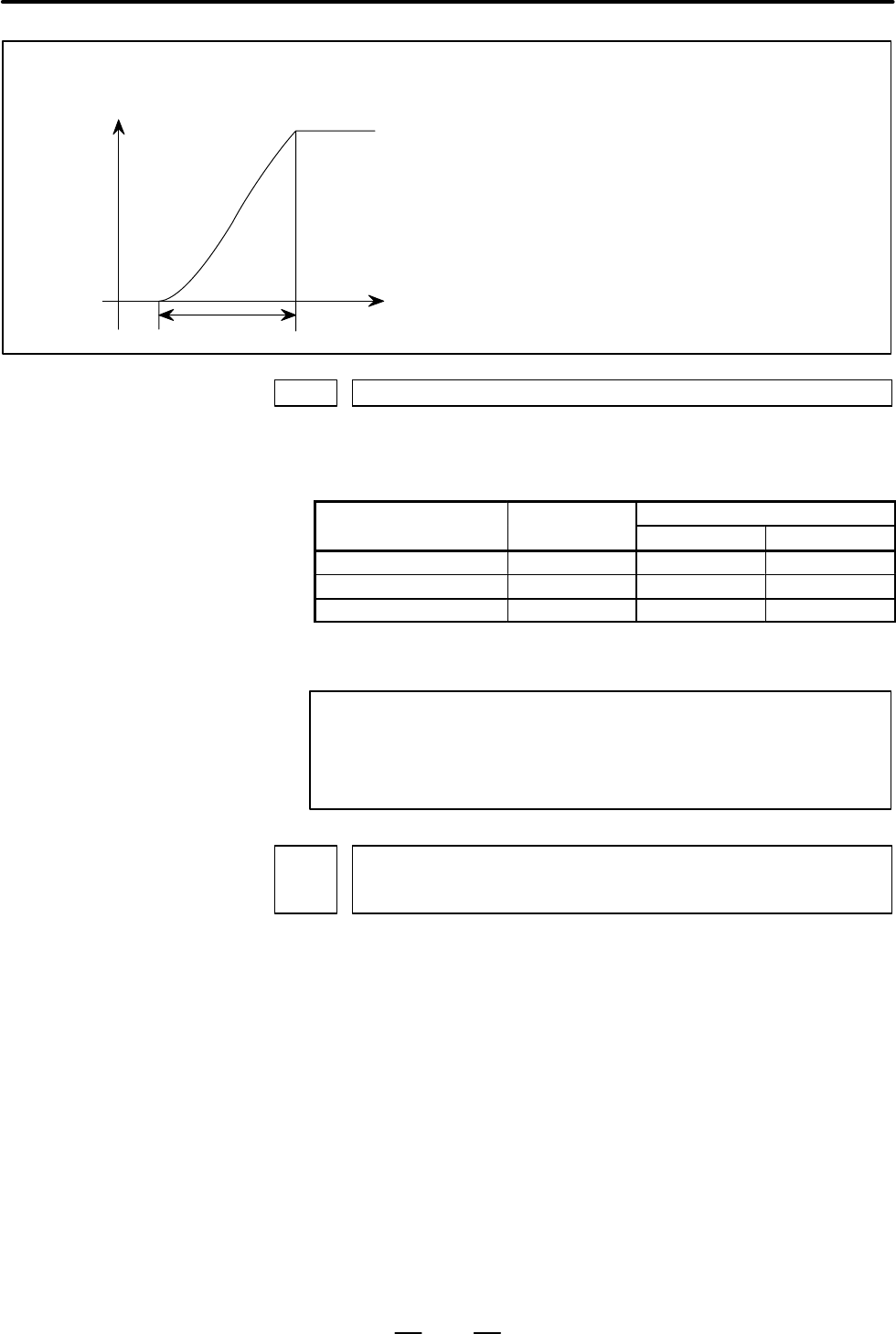

Speed

Time

T : Total time. it is constant irrespective of feed rate.

(Time constant is constant).

The curve corresponds to that T

= T/2 and T

= T/2 set in pa-

rameter No.1620 and 1621.

Bell–shaped acceleraton/deceleration after cutting feed interpolation

1623 FL rate of exponential acceleration/deceleration in cutting feed for each axis

[Data type] Word axis

[Unit of data]

[Valid data range]

Increment system

Unit of data

Valid data range

ncremen

sys

IS-A, IS-B IS-C

Millimeter machine 1 mm/min 0,6 to 15000 0,6 to 12000

Inch machine 0.1 inch/min 0,6 to 6000 0,6 to 4800

Rotaion axis 1 deg/min 0,6 to 15000 0,6 to 12000

Set the lower limit (FL rate) of exponential acceleration/deceleration in

cutting feed for each axis.

NOTE

Except for special applications, this parameter must be set

to 0 for all axes. If a value other than 0 is specified, proper

straight lines and arcs cannot be obtained.

1624

Time constant of exponential acceleration/deceleration or bell–shaped accelera-

tion/deceleration or linear acceleration/deceleration after interpolation, in jog

feed for each axis.

[Data type] Word axis

[Unit of data] ms

[Valid data range] 0 to 4000(exponential acceleration/deceleration in jog feed)

0 to 512 (linear or bell–shaped acceleration/deceleration after

interpolation in jog feed)

Set the time constant used for exponential acceleration/deceleration,

bell–shaped acceleration/deceleration or linear acceleration/deceleration

after interpolation in jog feed fot each axis. The type to select depends

on the settings of the parameters CTLx, CTBx, and JGLx (Nos. 1610#0,

#1, and #4).
