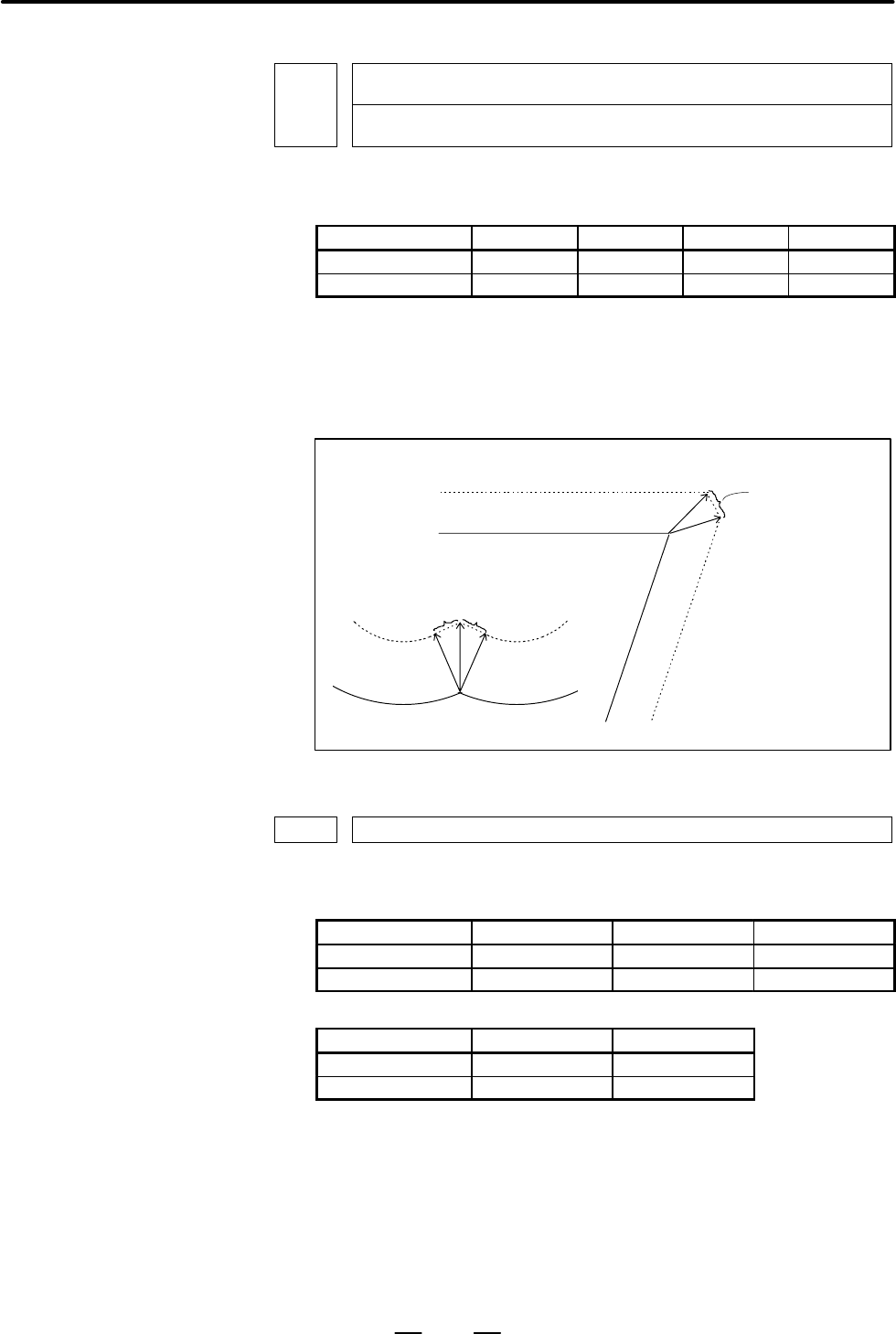

Series 21i/210i - Model B Parameter manual Page 218

Parameter manual
4. DESCRIPTION OF PARAMETERS
B–63610EN/01
212
5010
Limit value that ignores the vector when a tool moves on the outside of a corner
during cutter compensation C
Limit value that ignores the vector when a tool moves on the outside of a corner during
tool nose radius compensation
[Data type] Word
[Unit of data]
Increment system IS–A IS–B IS–C Unit
Millimeter input 0.01 0.001 0.0001
mm
Inch input 0.001 0.0001 0.00001 inch
[Valid data range] 0 to 16383
This parameter sets the limit value that ignores a slight movement
occurring when a tool moves on the outside of the corner during cutter
compensation C.
Very small amount of travel to
be ignored
Programmed path
Actual tool path
Very small amount
of travel to be
ignored
5013 Maximum value of tool wear compensation
[Data type] 2–word
[Unit of data]
Increment system IS–B IS–C Units
Millimeter input 0.001 0.0001 mm
Inch input 0.0001 0.00001 inch
[Valid data range]
Increment system IS–B IS–C
Millimeter input 0 to 999999 0 to 9999999
Inch input 0 to 999999 0 to 9999999
This parameter sets the maximum allowable tool wear compensation
value. If an attempt is made to set a tool wear compensation value, the
absolute value of which exceeds the value set in this parameter, the
following alarm or warning is output:
Input from MDI Warning: Too many digits
Input by G10 P/S alarm No.032: Offset value is out of range by
G10.
