5. INSTALLATION
85

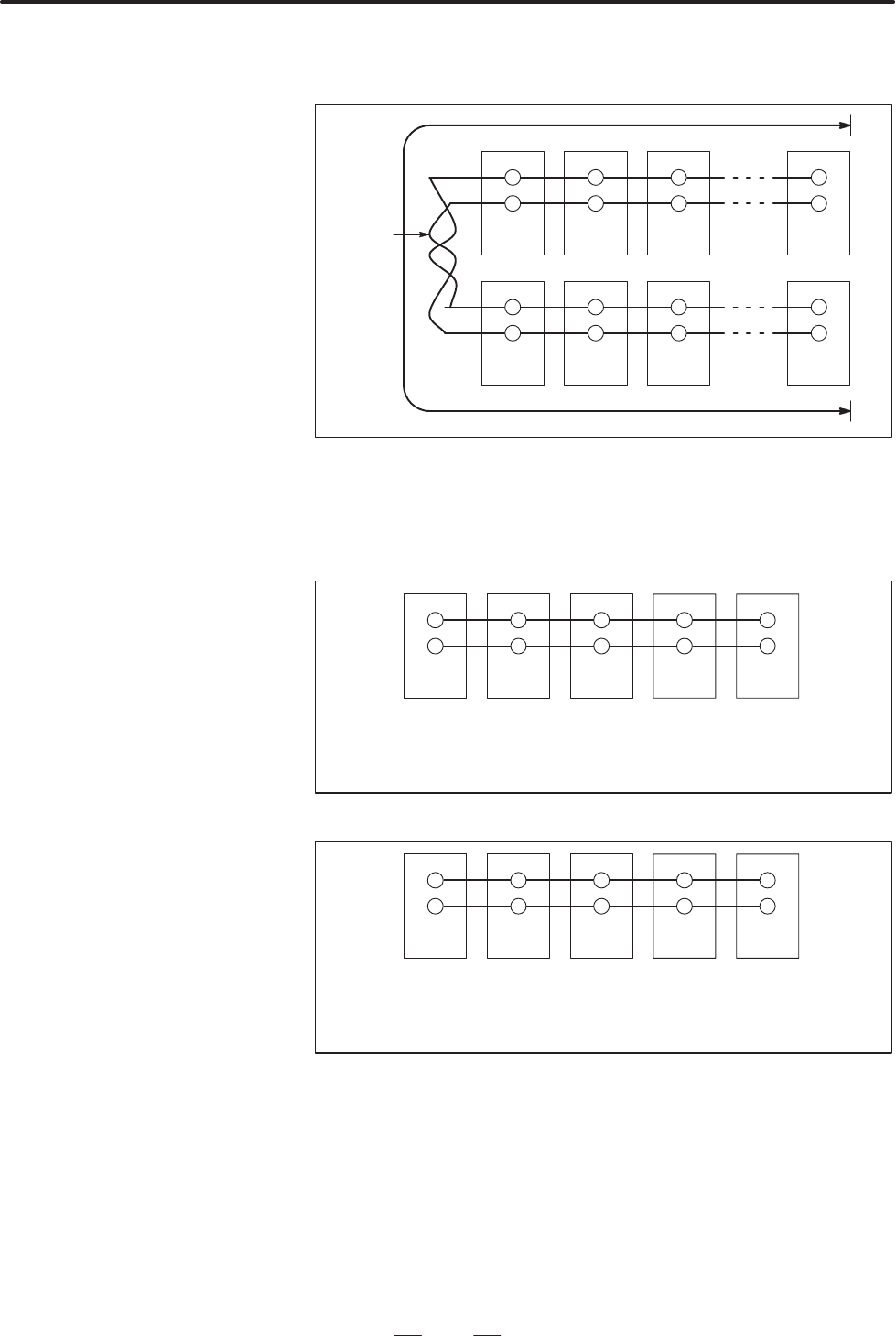

(e) The length of the DC link cable must not exceed 1.5 m (see the
figure below).
PSM SPM SVM SVM
SVM SVM SVM SVM
Twist
1.5 m
MAX.
(f) Each amplifier must be installed vertically.
(g) When a PSM–HV is used, the following module layout
restrictions are imposed:
D When PSM–18HV, PSM–30HV, or PSM–45HV is used
PSM PSMC SPM SVM SVM
Install modules in the order of the PSM, PSMC, SPM, then SVM.
Do not install the modules for apart from each other; install them
side–by–side.
D When the PSM–75HV is used
PSM SPM PSMC SVM SVM
Install modules in the order of the PSM, SPM, PSMC, then SVM.
Do not install the modules far apart from each other; install them
in series.
