B–65162E/03

C. CABLES

APPENDIX

583

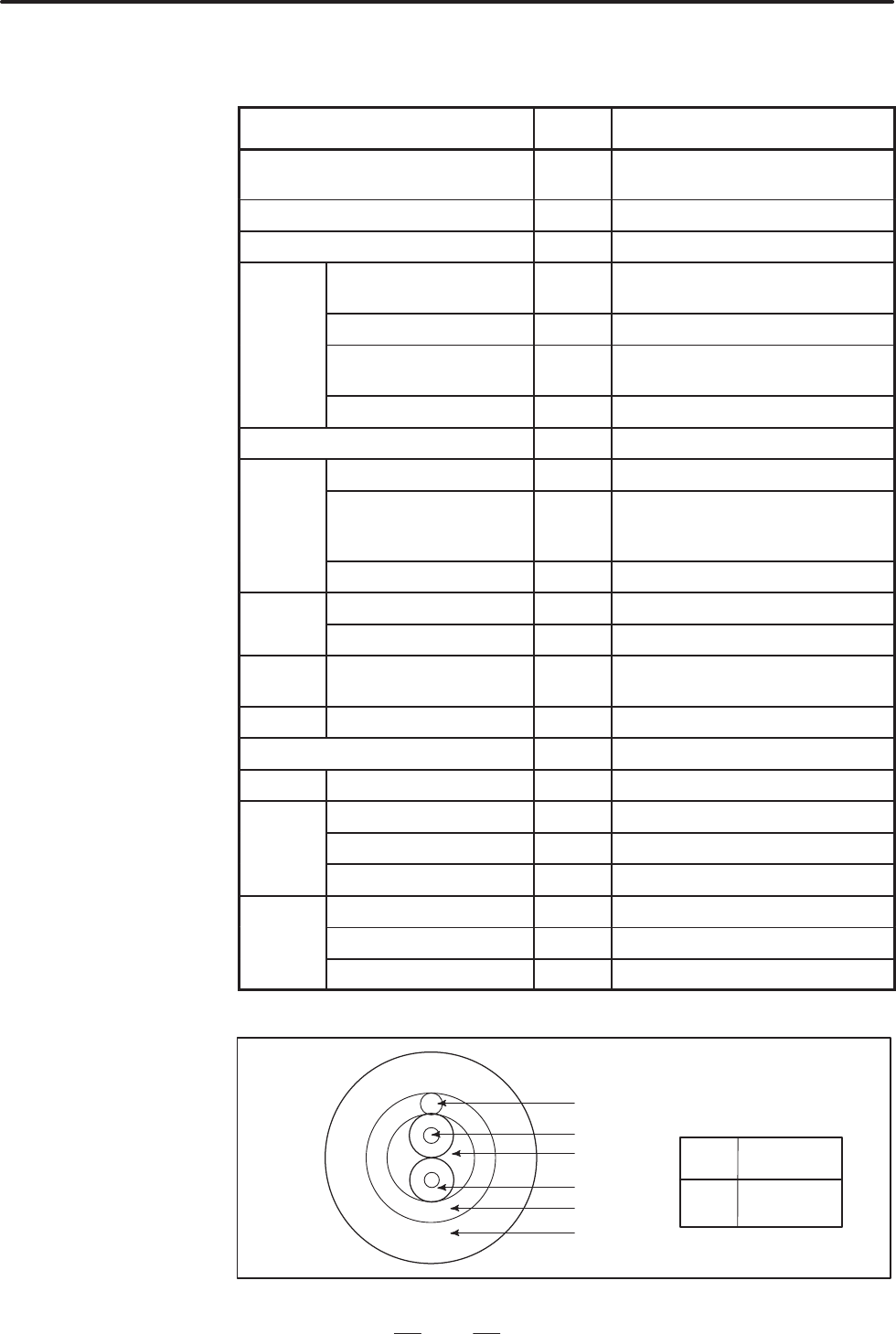

2–core cable

Item Unit Specifications

Product No. – A66L–0001–0275 (CO–IREV (0)

–SX 1P0.3SQ

Manufacturer – Hitachi Electric Cable Co., Ltd.

Rating – 80_C, 30V

Material Conductor – Stranded wire of tinned annealed

copper

Insulator – Irradiation Crosslinking Poliethylene

Shield braid – Aluminum laminate poliestel tape is

binded on both sides

Sheath – Oilproof, heat–resistant vinyl

Number of wires (wire ons.) Cores 2

Conduc-

tor

Size mm

0.3

tor

Structure Conduc-

tors

/mm

7/0.26

Outside diameter mm 0.78

Insulator Standard thickness mm 0.3

Outside diameter mm About 1.38

Twisted

pair

Outside diameter mm About 2.8

Strand Outside diameter mm –

Lay diameter mm About 3.5

Shield Element wire diameter mm –

Sheath Color – Black

Thickness mm About 1.0

Outside diameter mm About 5.0 (Max. 5.5)

Electrical

erfor

Resistance of conductor Ω/km

Less than 54 (20°C)

perfor

mance

Dielectric strength (AC) V/min. AC1500

Insulation resistance MΩ–km More than 1000 (20°C)

Wire No.

color

Red

Black

Drain wire

Conductor

Insulation

Shield

Sheath

Lay

D Specifications
