5. INSTALLATION

B–65162E/03

(1) 200–V power supply

S Nominal voltage rating : 200/220/230 VAC

S Allowable voltage deviation : –15% to +10% (including Voltage

deviation due to load)

S Power frequency : 50/60 Hz

S Allowable frequency deviation : +1 Hz

S Power supply unbalance : "5% of the rated voltage or less

S Power supply inpedance : Voltage deviation due to load

(at maximum output) shall be 5% or

less.

power supply

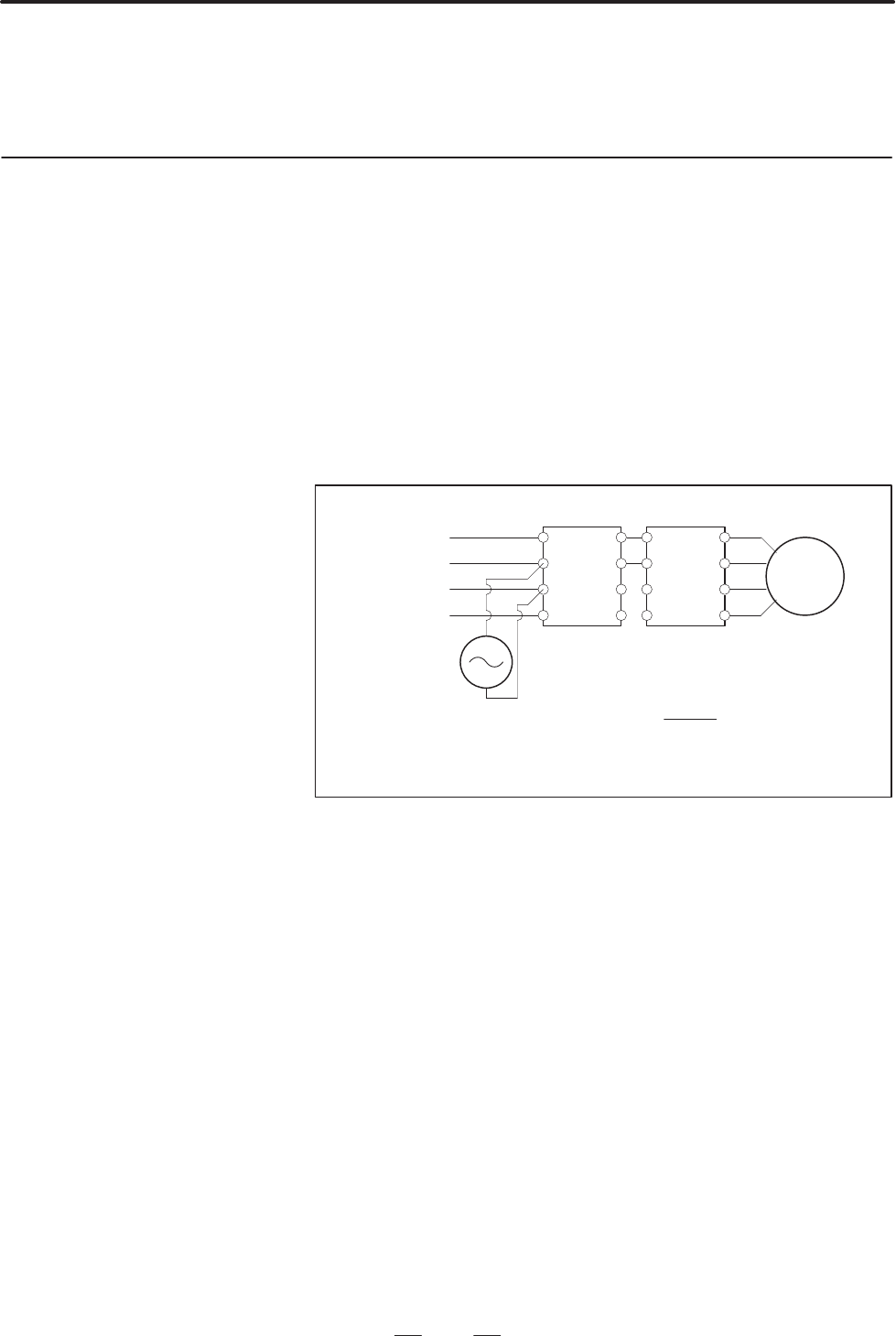

[Method to check power impedance]

where,

: Voltage at motor stop

: Voltage during motor acceleration or voltage immediately before the

start of speed reduction with the application of load

R L+

S L–

Motor

–E

100(%)<7(%)

L+ U

L– V

voltmeter

Power supply

module

Spindle amplifier

module or servo

amplifier module

D Turn on the control power supply (CX1A power supply input) of the

power supply module (PSM or PSMR) at the same time or earlier than

the CNC.

D It is recommended that a capacitor unit for power–factor improvement

not be installed. This is because the capacitor unit for power–factor

improvement may adversely affect power regeneration.

D The rated output of the motor is guaranteed for the rated input voltage.

If the input voltage changes, the rated output may not appear even

when the input voltage change is within the allowable range.

D When the power supply is used in an area where the input voltage is

not within the range of 200 to 230 VAC, a power transformer is

required. When a power transformer is to be provided by the user, the

power must satisfy the specifications listed below. For transformers

manufactured by FANUC, see (6) in Section 2.2.3.

5.2

INPUT POWER AND

GROUNDING

5.2.1

Input Power
