Power Failure Back-up Module

(with control power backup function)

DESCRIPTIONS

B-65162E/03-08

TMS01/032E

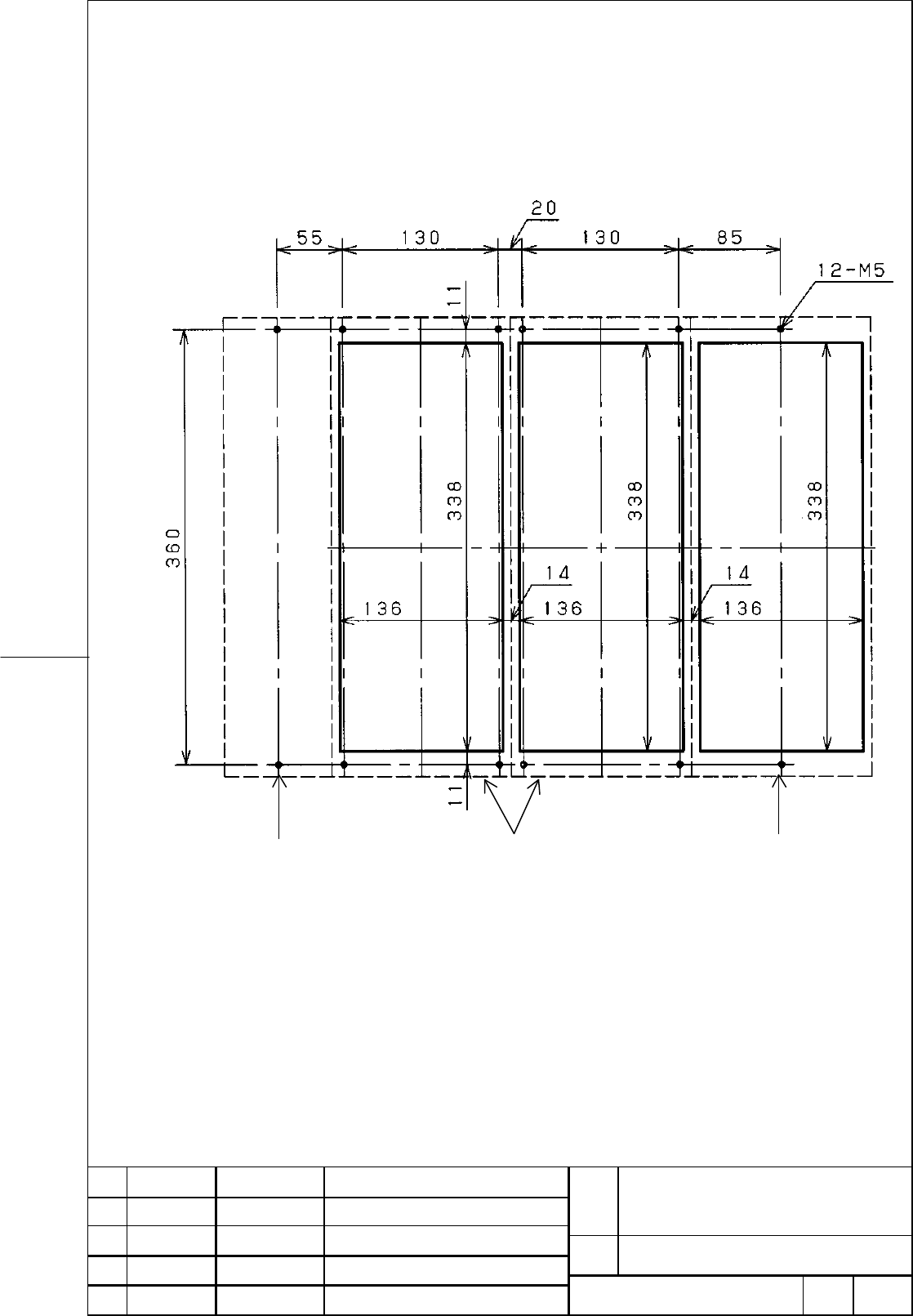

6.2 Panel Cutout Drawings

The drawings below show the panel cutout drawing when one Power Failure Back-up

Module, two Sub Module C and one Sub Module R are located from left side.

Attach packing (acrylonitrile-butadiene rubber or soft NBR) to prevent the ingress of oil and

dust. Reinforce the right and left ends of each panel cutout in the power magnetic cabinet, for

example with L-angle steel, to ensure reliable contact with the module.

Power Failure Backup Module Sub Module C Sub Module R

* The panel cutout drawing of Supplement Capacitor Unit is as same as that of Sub module C.

02 99.06.21 Supplement Capacitor Unit added.
