Power Failure Back-up Module

(with control power backup function)

DESCRIPTIONS

B-65162E/03-08

TMS01/032E

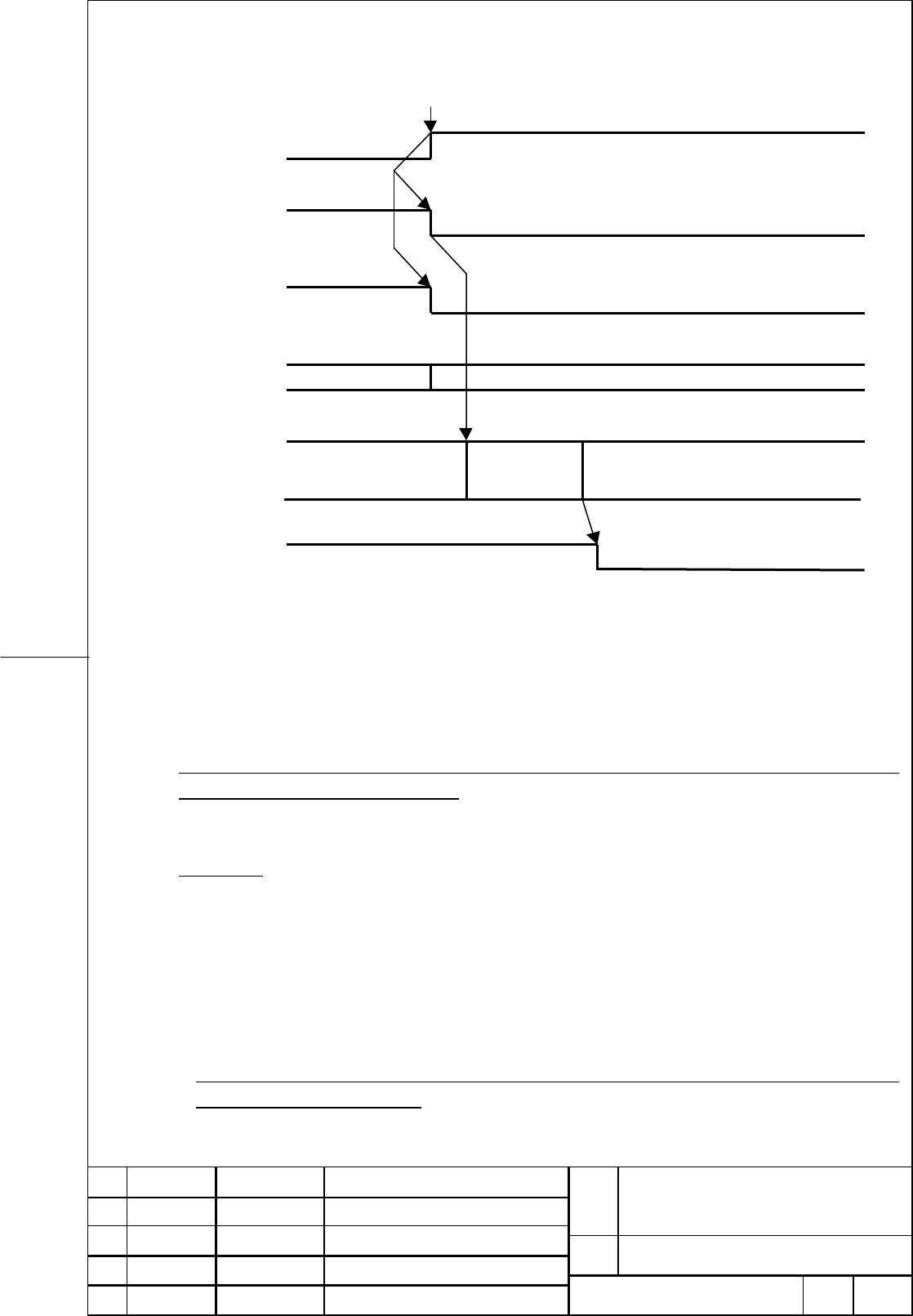

8.2.6 Sequence when Alarm Occurs

Some alarm occurs on Power Failure Backup Module.

Alarm

*ALM (CX16 B1)

RDY (CX16 B3)

LED indication “0” Indicate alarm number

System status Normal operation Machine stop Machine stop

operation

MCC ON OFF

In case that the alarm occurs at Power Failure Backup Module, the alarm number is indicated on

the 7-segment LED display and *ALM in CX16 goes “0”.

After the alarm occurs at Power Failure Backup Module, the machine continues the normal

operation, because the power of motors are not cut off forcibly by this alarm. But Power Failure

Backup Module can not be operated normally in the power failure on the condition of alarm.

So, when *ALM goes “0”, stop the machine operation safely and turn off the MCC immediately to

protect Power Failure Backup Module.

See “8.4 Alarms” for description and cause of alarms.

RDY Signal

RDY signal changes from “0” to “1” when charging to Sub Module C is completed.

RDY signal changes from “1” to “0” in following cases.

(1) When alarm occurs at Power Failure Backup Module.

(2) When *CRDY goes “1”. (When MCC is turned off)

If RDY changes from “1” to “0” during the machine operation (*CRDY=0) though no alarm

occurs at Power Failure Backup Module, something is wrong with Power Failure Backup

Module.

In this case stop the machine operation safely and turn off the MCC immediately to protect

Power Failure Backup Module.
